Specifications
General
- Product Number:
- 14B7A6TMA10
- Brand:
- Cub Cadet
- Product Type:
- Zero-Turn
Engine
- Engine Brand:
- Kohler
- Engine Model:
- KT726
- Engine Displacement:
- 747cc
- Engine Output:
- 26 HP
- Fuel Tank Capacity:
- 3 gal. US (11.35 L)
- Cylinders/Material:
- 2/Cast-iron sleeve
- Engine Start:
- Electric
- Engine Oil Capacity:
- 2 qt US ( 2 L)
- Lubrication:
- Fully-pressurized automotive-style oil pump w/spin-on oil filter
- Charging System:
- Flywheel Alternator - 12 amp regulated
- Choke:
- Separate Choke
Battery
- Battery:
- 12V / 210 cold crank amps
- Battery Type:
- AGM (Absorbent Glass Mat)
Drive System
- Transmission:
- GT Hydro, Foot (TT K62 w/ Diff-Lock) - Steel
- Transmission Housing:
- Cast aluminum
- Engine to Transmission:
- Heavy-duty belt
- Rear Differential Lock:
- Yes
Cutting Deck
- Deck Cutting Width:
- 54-in
- Deck Wash:
- Patented SmartJet™ high-pressure deck washing system
- Deck Attach/Removal:
- QuickAttach™
- Blade(s):
- 3
- Deck Lift:
- Manual
- Cutting Height Range:
- 1" - 4"
- Anti-Scalping:
- 2 Ball/2 Ball
- Deck Positions:
- 12 Positions
Warranty
- Residential Warranty:
- 3-year Unlimited Hours (Includes Powertrain)
- Frame Warranty:
- 5-year limited warranty
- Front Axle Warranty:
- 5-year limited warranty
Chassis
- Frame:
- Fully robotically-welded frame with new e-coating corrosion defense system
- Front Axle:
- Heavy-duty cast-iron - 5-year limited warranty
- Turning Radius:
- 16-in
- Protection:
- Single-tube
Controls
- Cruise Control:
- Soft touch engagement
- Direction:
- NEW optimized steering system, manual sector and pinion
- Brakes:
- Disc
Comfort
- Seat Type:
- Cub Comfort™ high-back seat with armrests
- Seat Adjustment:
- 10 degree incline and slide
Additional Specifications
- Headlight(s):
- 2 LED High Illumination
- Cup Holder:
- Included
- Mulch Kit:
- optional
- Model Number:
- 14AQA6TMA10
- ENGINE Oil:
- 25 357 26-S OR 490-000-C044
- Trans Fluid:
- TT-187Q0899000
Maintenance Parts
- Air Filter:
- 16 883 04-S1
- Oil Filter:
- 52 050 02-s
- Fuel Filter:
- 24 050 13-S1
- Spark Plug:
- 25 132 14-S
- Deck Belt:
- 954-05025A
- Drive Belt:
- 954-05156A

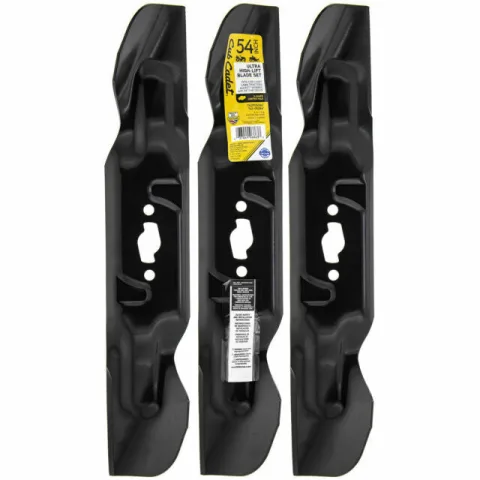

- Blade:
- 742P05086 OR 490-110-C194

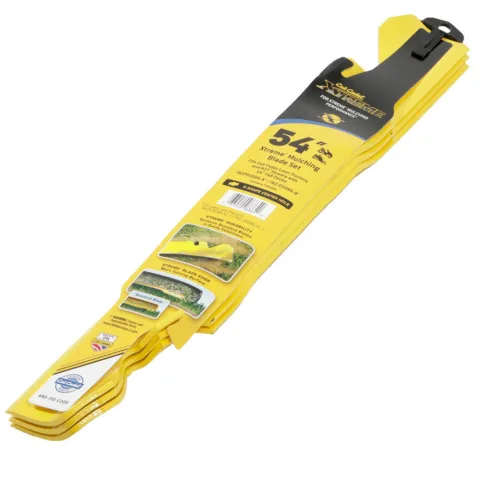

- Xtreme Blade:
- 742P05086-X OR 490-110-C205
- Ignition Key:
- 925-1745A
Key Features
- A strong 25 HP Kohler engine delivers reliable power to tackle your yard.
- 54-in. heavy-duty fabricated AeroForce™ deck cutting system that has been tested and proven to deliver a best-in-class cut, meaning fewer clumps and stragglers, finer clippings and increased evenness.
- AGM battery delivers reliable starting with slower discharge so you worry less about your battery going dead in the offseason.
- Rear diff lock ensures your wheels will spin at the same speed, making it easier to navigate difficult terrain.
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
