CUB CADET XT1-LT50 FAB 13AQA1TLA10 1 / 5

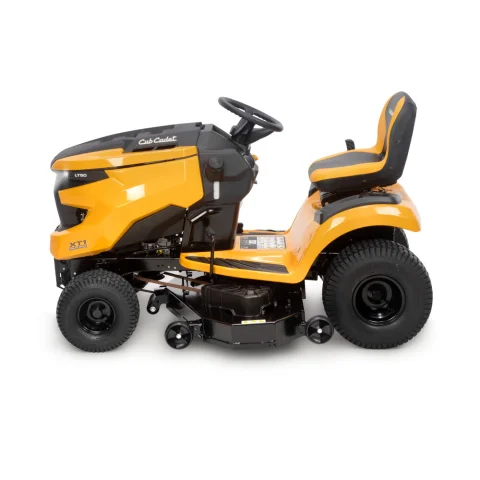

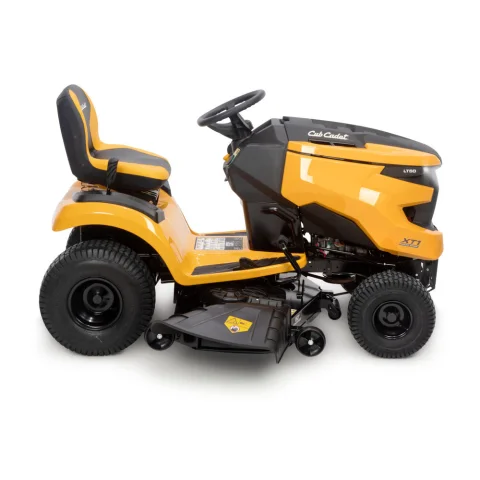

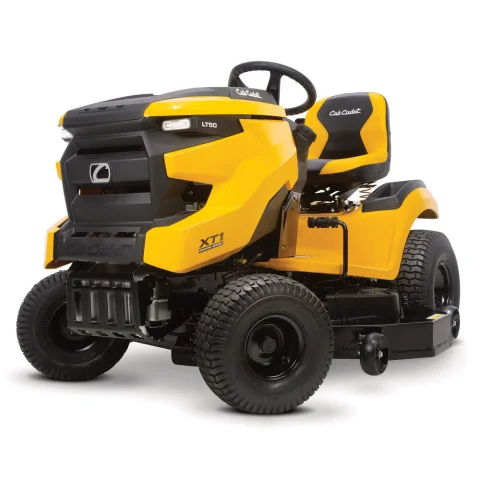

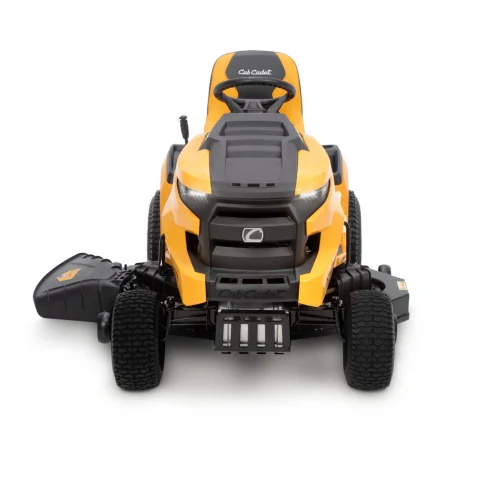

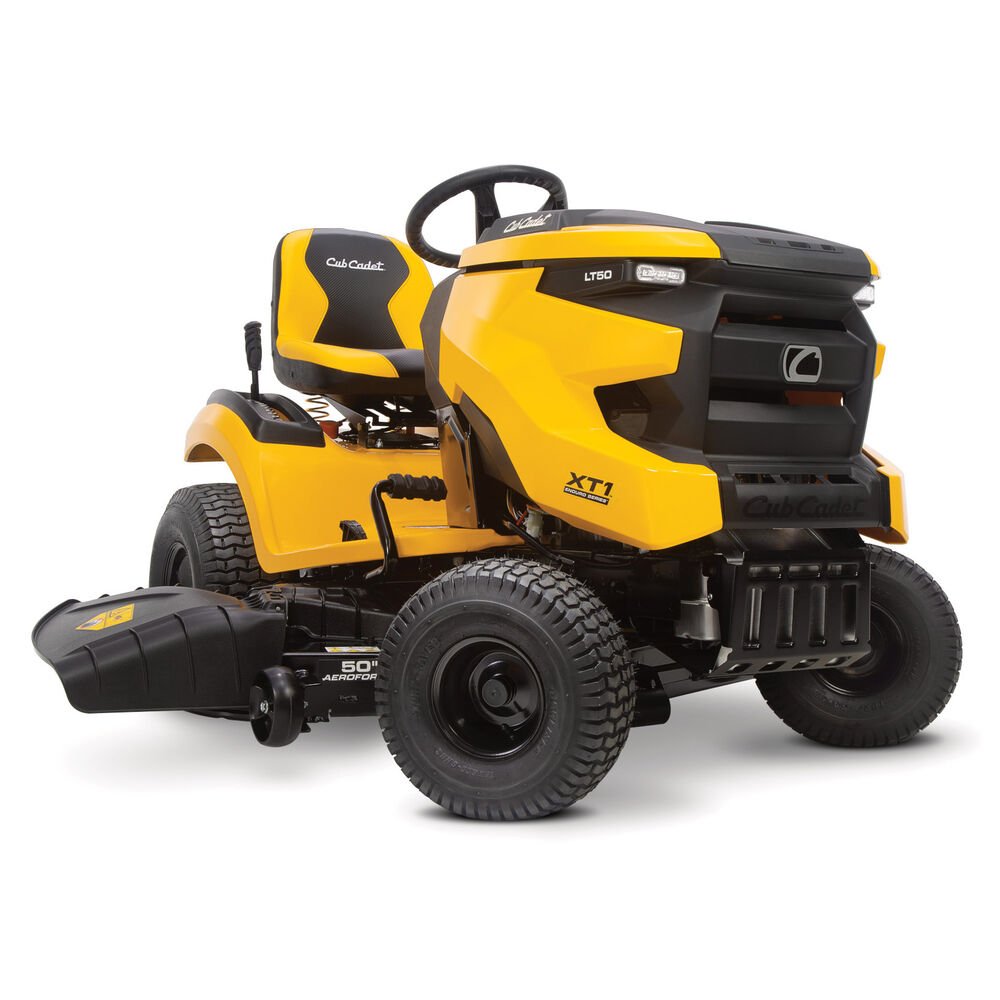

CUB CADET XT1-LT50 FAB 13AQA1TLA10

Product number: 13AQA1TLA10

$2,799.00 $3,149.00

Special Online Price!

In Stock

Product Brand: Cub CadetProduct Type: Lawn & Garden Tractor

Have Questions?

Our experts are here to answer your questions.

Contact Us+1 404-301-0719

Store pickup and delivery available — choose at checkout.

Specifications

General

Product Number:
13AQA1TLA10
Brand:
Cub Cadet
Product Type:
Lawn & Garden Tractor

Engine

Engine Brand:
Kohler®
Engine Model:
KT724
Engine Displacement:
747cc
Engine Output:
24 HP
Fuel Tank Capacity:
3 gal.
Cylinders/Material:
Twin
Engine Start:
Key
Engine Oil Capacity:
2 qt.
Lubrication:
Fully pressurized
Battery:
12V 230 cold crank amps AGM
Charging System:
12 amp regulated
Fuel Gauge:
Fuel sight window
Governor:
Manual
Choke:
Choke-a-matic
Air Filter:
Dual element
Oil Filter:
Yes

Drive System

Transmission:
Hydrostatic, foot
Forward Speed:
5.5 MPH
Reverse Speed:
3 MPH
Rear Axle:
3/4" w/dual PM steel drive hubs
Transmission Housing:
Cast aluminum
Transmission Type:
Tuff Torq K46
Engine to Transmission:
Heavy-duty belt

Cutting Deck

Deck Cutting Width:
50"
Cutting Modes:
Discharge/mulch/bagging
Deck Wash:
Yes
Deck Material:
Steel, 11-gauge
Deck Attach/Removal:
QuickAttach™ (no tools required)
Deck Engagement (PTO):
Electronic fingertip engagement
Deck Construction:
Fabricated
Spindle Construction:
3/4" with steel cap and Triple Lip Sealed
Blade(s):
Triple Blades
Deck Lift:
Lever
Cutting Height Range:
1" - 4"
Anti-Scalping:
2 Ball/2 Ball/Nose Roller
Deck Positions:
12-position

Chassis

Frame:
Fully robotically-welded frame with new e-coating corrosion defense system
Front Axle(s):
Cast iron
Turning Radius:
16"
Front Tires:
15" x 6" sleeve bearing
Rear Tires:
20" x 8"
Tire Tread:
Turf Saver
Bumper:
Optional
Rear Tow Hitch:
Included
Corrosion Protection:
Yes

Controls

Cruise Control:
Included
Brakes:
Disc
Steering Wheel Control:
Manual sector and pinion
Headlight(s):
2 - LED

Comfort

Seat Type:
15" high-back seat
Seat Suspension:
Seat spring
Seat Adjustment:
Lever
Floor Mats:
Rubber

Dimensions

Dimensions:
L/W/H 68"/60"/42.5"
Weight (approx.):
500 lbs.
Wheelbase:
47"

Additional Specifications

Mulch Kit:
Optional
Discharge Chute:
Included
Cup Holder:
Included
Operator Presence System:
Included
Bagger:
Optional
Model Number:
13AQA1TLA10

Warranty

Warranty:
3-year/unlimited hour warranty
Frame Warranty:
5-year/unlimited hour warranty
Front Axle Warranty:
5-year/unlimited hour warranty
Deck Shell Warranty:
Limited lifetime warranty
Trans Fluid:
TT-187Q0899000

Maintenance Parts

Air Filter:
32 883 09-S1 OR 490-200-K054
Oil Filter:
12 050 01-S
Engine Oil:
25 357 65-S OR 490-000-C044
Fuel Filter:
25 050 22-S1
Spark Plug:
25 132 23-S OR RC12YC
Deck Belt:
954-04077A
Drive Belt:
954-05027B OR 490-501-C061
Blades:
742P05094 OR SET 490-110-C193
Xtreme Blade:
742P05094-X OR SET 490-110-C204
Ignition Key:
925-1745A

Key Features

  • The Cub Cadet XT1 LT50 FAB is powered by a 24 hp KOHLER 7000 Series twin cylinder engine.
  • 50-inch fabricated, 11-gauge, triple-blade AeroForce(TM) deck design that optimizes airflow and maximizes suction to reduce clumping during discharge and improves bagging performance while delivering the pristine Cub Cadet Signature Cut(TM).
  • Optimized steering system for responsive handling gives a 16-inch turn radius a zero-turn feel.
  • 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours/limited lifetime fabricated deck shell.
  • Ideal for mowing up 2-4 acres of mostly flat terrain and a few obstacles.

Product Manuals

No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
