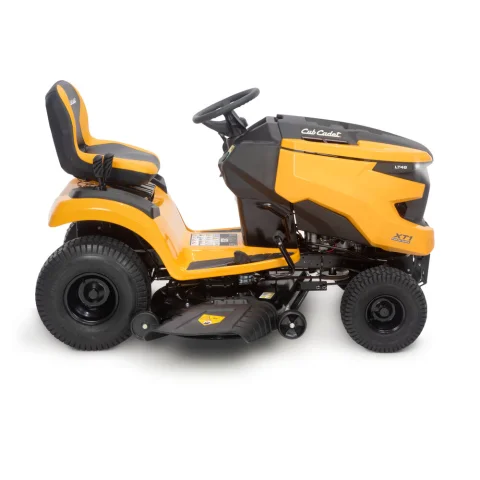

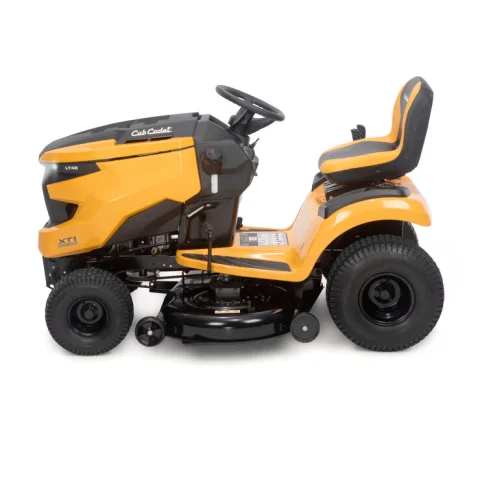

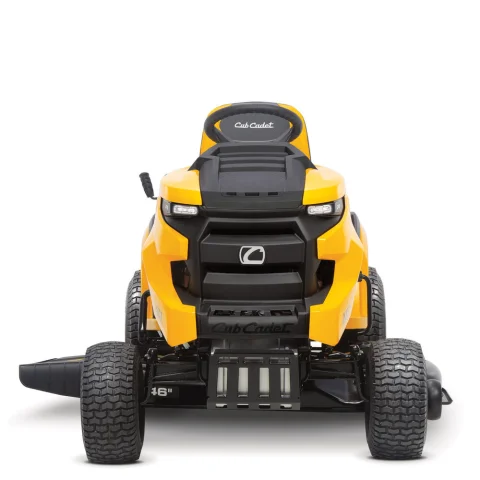

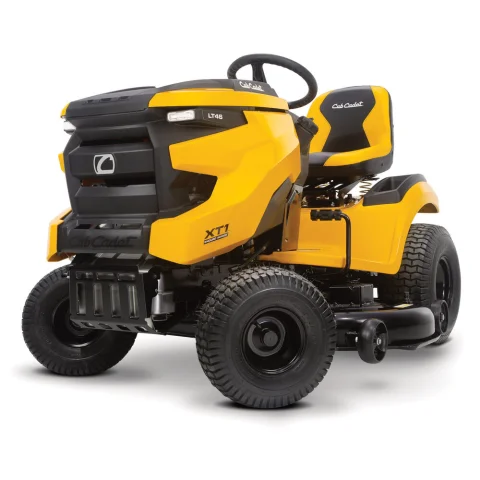

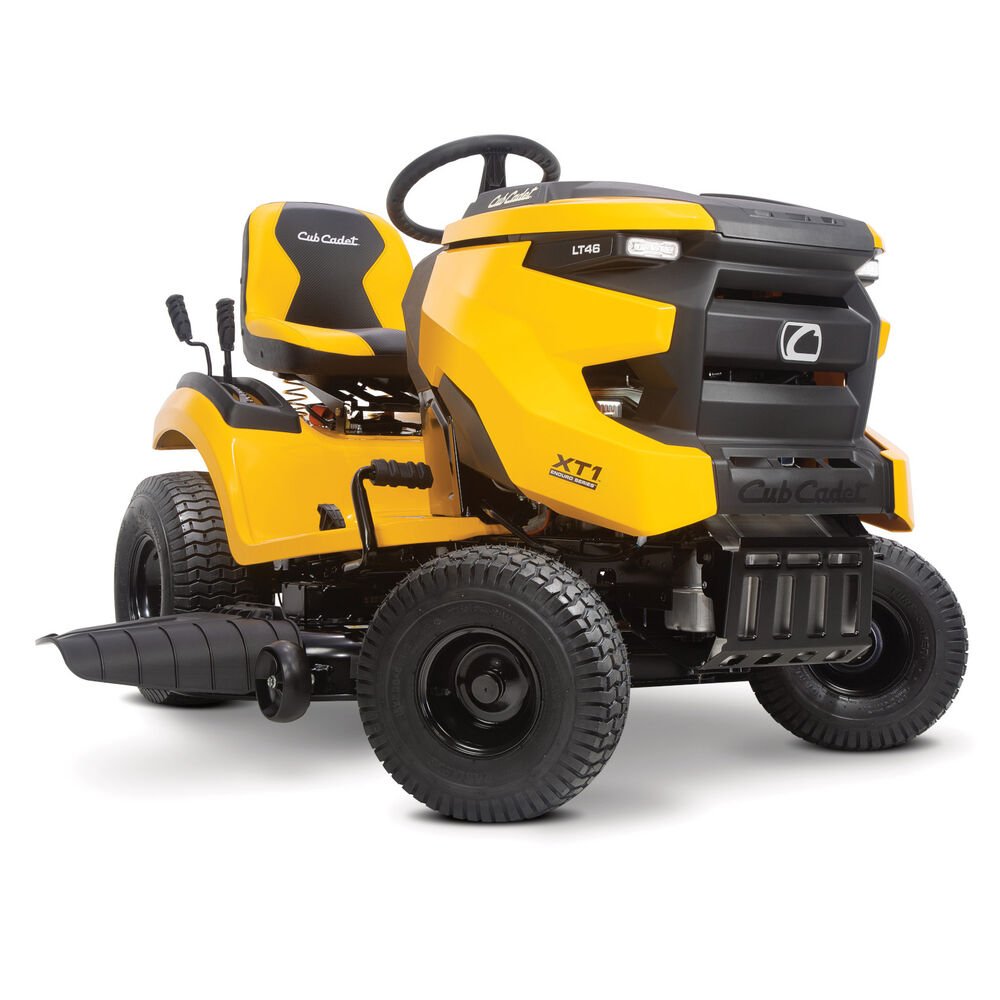

Cub Cadet XT1-LT 46 13APA9TTA10 1 / 5

Cub Cadet XT1-LT 46 13APA9TTA10

Product number: 13APA9TTA10

$2,399.00 $2,849.00

Special Online Price!

In Stock

Product Brand: Cub CadetProduct Type: Lawn & Garden Tractor

Have Questions?

Our experts are here to answer your questions.

Contact Us+1 404-301-0719

Store pickup and delivery available — choose at checkout.

Specifications

General

Product Number:
13APA9TTA10
Brand:
Cub Cadet
Product Type:
Lawn & Garden Tractor

Engine

Engine Brand:
Kohler KT722
Engine Displacement:
747cc
Fuel Tank Capacity:
3.0 gal.
Cylinders/Material:
Twin
Engine Start:
Key
Engine Oil Capacity:
2 qts.
Charging System:
12 amp regulated
Air Filter:
Dual element
Oil Filter:
Yes

Battery

Battery:
12V 210 cold crank amps

Drive System

Transmission:
Tuff Torq® TL-200
Forward Speed:
5.5 MPH
Reverse Speed:
3 MPH
Rear Axle:
3/4" w/dual PM steel drive hubs
Transmission Housing:
Die-Cast Aluminum
Transmission Type:
Tuff Torq TL-200

Cutting Deck

Deck Cutting Width:
46"
Cutting Modes:
Discharge/mulch/bagging
Deck Wash:
Included
Deck Material:
Steel, 12-gauge
Deck Attach/Removal:
QuickAttach™ (no tools required)
Deck Engagement (PTO):
Manual lever
Deck Construction:
Stamped
Spindle Construction:
3/4" with steel cap and Triple Lip Sealed
Blade(s):
2
Deck Lift:
Lever
Cutting Height Range:
1" - 4"
Anti-Scalping:
2 ball, 2 narrow
Deck Positions:
12 positions

Warranty

Warranty:
3-year/unlimited hour warranty
Frame Warranty:
5-year/unlimited hour warranty
Front Axle Warranty:
5-year/unlimited hour warranty
Deck Shell:
Lifetime Limited

Chassis

Frame:
Robotically welded
Front Axle:
Cast iron
Turning Radius:
16"
Rear Tow Hitch:
Included
Corrosion Protection:
Yes

Controls

Cruise Control:
Yes
Brakes:
disc
Steering Control:
Manual sector and pinion

Comfort

Seat Type:
15" high-back seat
Seat Suspension:
Seat spring
Arm Rests:
No
Floor Mats Traction:
Rubber

Additional Specifications

Mulch Kit:
Optional
Headlight(s):
2 - LED
Discharge Chute:
Included
Cup Holder:
Included
Operator Presence System:
Included
Bagger:
Optional
Model Number:
13APA9TTA10

Maintenance Parts

Air Filter:
32 883 09-S1 OR 490-200-K054
Oil Filter:
12 050 01-S
Fuel Filter:
25 050 22-S1
Spark Plug:
25 132 14-S OR RC12YC
Deck Belt:
954-05022A
Drive Belt:
954-05027B
Blades Order 2:
742P05510 OR SET 490-110-C192
Xtreme Blades:
742P05510-X OR SET 490-110-C203
Ignition Key:
925-1745A

Key Features

  • The Cub Cadet XT1 LT46 is powered by a 22 hp KOHLER 7000 Series twin cylinder engine.
  • 46-inch stamped, 12-gauge, twin-blade deck with 12 cutting positions.
  • Optimized steering system for responsive handling gives a 16-inch turn radius a zero-turn feel.
  • 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours.
  • Ideal for mowing up to 1.5 acres of mostly flat terrain and a few obstacles.

Product Manuals

No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
