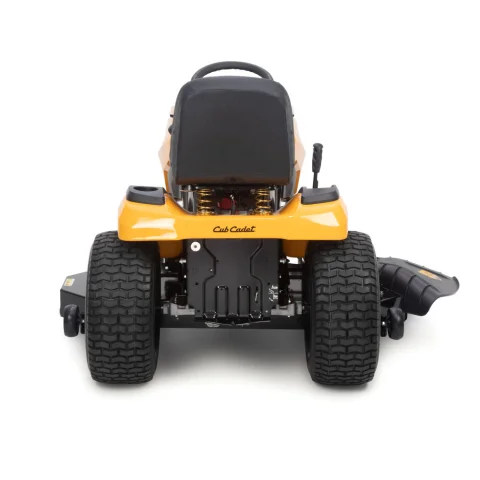

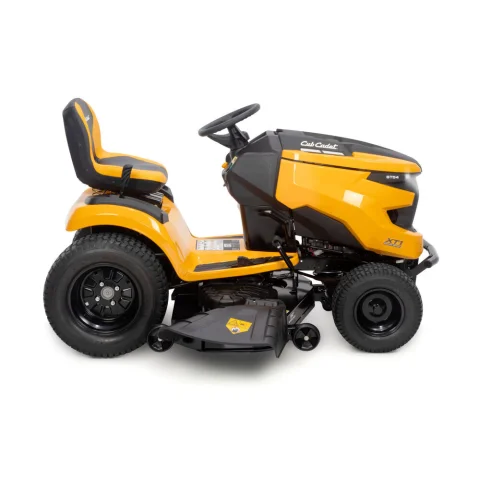

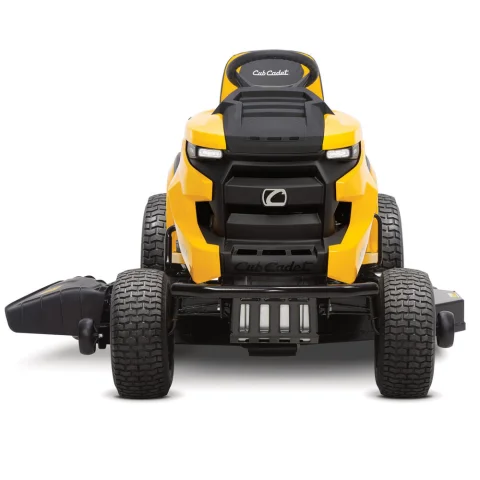

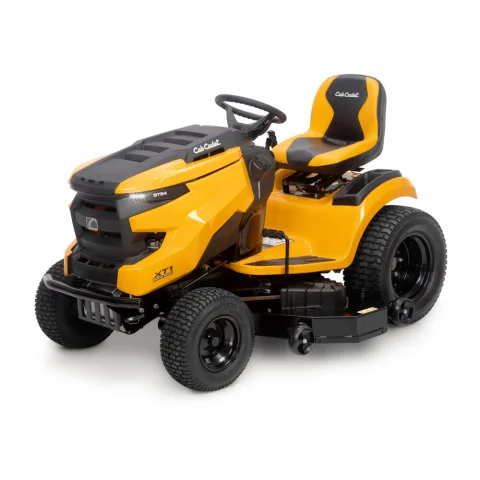

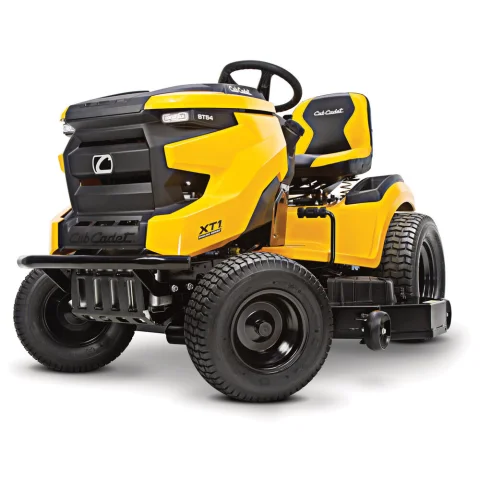

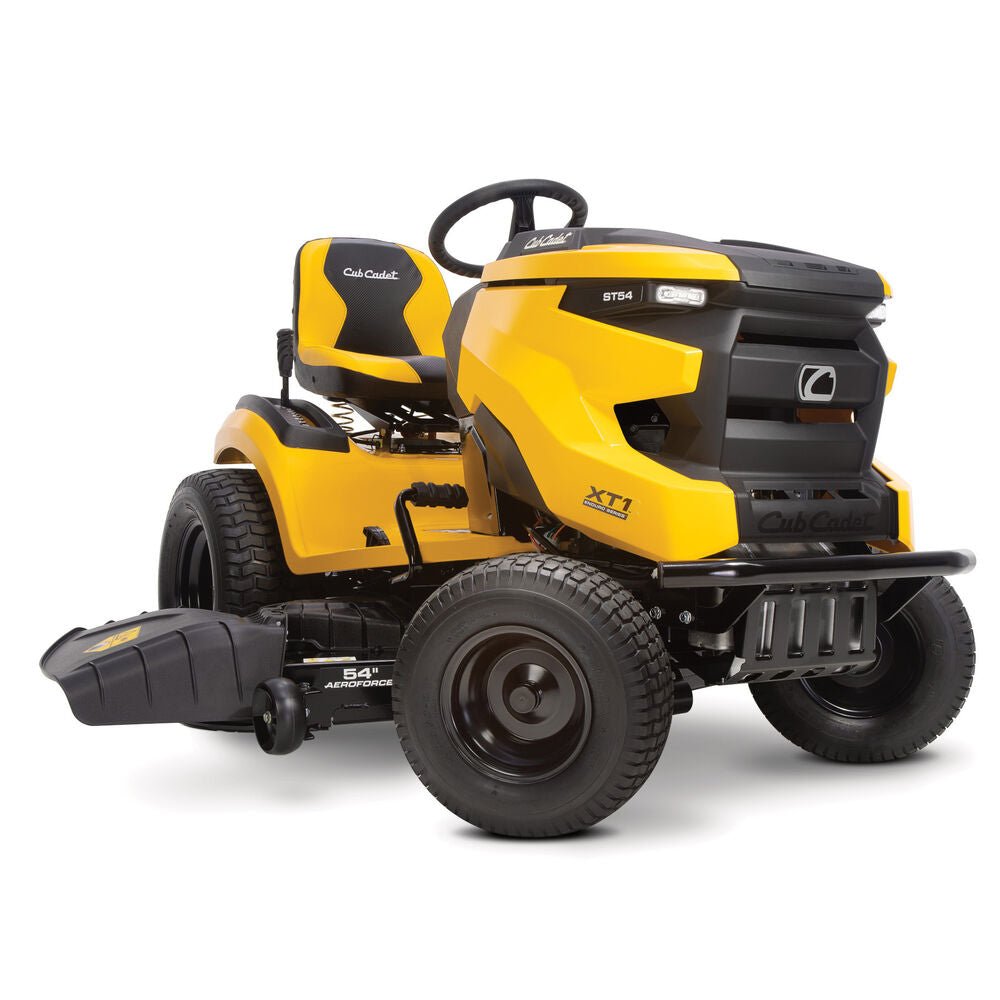

Cub Cadet XT1-ST 54 13AQA2TMA10 1 / 6

Cub Cadet XT1-ST 54 13AQA2TMA10

Product number: 13AQA2TMA10

$3,199.00 $3,669.00

Special Online Price!

In Stock

Product Brand: Cub CadetProduct Type: Lawn & Garden Tractor

Have Questions?

Our experts are here to answer your questions.

Contact Us+1 404-301-0719

Store pickup and delivery available — choose at checkout.

Specifications

General

Product Number:
13AQA2TMA10
Brand:
Cub Cadet
Product Type:
Lawn & Garden Tractor

Engine

Engine Brand:
Kohler®
Engine Model:
Professional-grade KT724
Engine Displacement:
747cc
Engine Output:
24 HP
Starter Type:
Electric
Fuel Tank Capacity:
3 gal. easy fill, rustproof
Cylinders/Material:
Twin/Cast-iron sleeve
Engine Start:
Key
Engine Oil Capacity:
2 qt.
Lubrication:
Fully pressurized, automotive-style oil pump w/ spin-on oil filter
Charging System:
Flywheel Alternator - 12 amp regulated
Fuel Gauge:
Fuel sight window
Governor:
Manual
Choke:
Choke-a-matic
Air Filter:
Dual element
Oil Filter:
Yes
Battery:
210 cold crank amps AGM

Drive System

Transmission:
Hydrostatic, foot
Forward Speed:
5.5 mph
Reverse Speed:
3.1 mph
Rear Axle:
3/4" w/dual PM steel drive hubs
Transmission Housing:
Cast aluminum
Transmission Type:
Tuff Torq K46
Engine to Transmission:
Heavy-duty belt

Cutting Deck

Deck Cutting Width:
54"
Cutting Modes:
Discharge/mulch/bagging
Deck Wash:
Patented SmartJet™ high-pressure deck washing system
Deck Material:
11-gauge fabricated steel
Deck Attach/Removal:
QuickAttach™ (no tools required)
Deck Engagement (PTO):
Electronic fingertip engagement
Deck Construction:
Fabricated
Spindle Construction:
3/4" with steel cap and Triple Lip Sealed
Blade(s):
Triple Blade
Deck Lift:
Lever
Cutting Height Range:
1" - 4"
Anti-Scalping;:
2 Ball/2 Ball/Nose Roller
Deck Positions:
12-position

Chassis

Frame:
defense system Fully robotically-welded frame with new e-coating corrosion
Front Axle(s):
Cast iron
Turning Radius:
16"
Front Tires:
16" x 6.5"
Rear Tires:
22" x 9.5"
Bumper:
Single-tube
Rear Tow Hitch:
Included
Corrosion Protection:
E-coating

Controls

Cruise Control:
Soft touch engagement
Handle:
Optimized steering system, manual sector and pinion/16"
Brakes:
Automotive-style disc
Steering:
Control Manual sector and pinion
Headlight(s):
2 - LED
Display:
Hour meter

Comfort

Seat Type:
15" high-back seat
Seat Suspension:
Seat spring
Seat Adjustment:
Lever
Floor Mats:
Traction Pad

Dimensions

Weight (approx.):
520 lbs.
Wheelbase:
- 47"

Additional Specifications

Mulch Kit:
Optional
Discharge Chute:
Included
Cup Holder:
Included
Operator Presence System:
Included
Bagger:
Optional
Model Number:
13AQA2CTMA10

Warranty

Warranty:
3-year/unlimited hour warranty
Frame Warranty:
5-year/unlimited hour warranty
Front Axle Warranty:
5-year/unlimited hour warranty
Deck Shell Warranty:
Limited lifetime warranty
Trans Fluid:
TT-187Q899000

Maintenance Parts

Air Filter:
32 883 09-S1
Oil Filter:
12 050 01-S
Engine Oil:
490-000-C044
Fuel Filter:
24 050 13-S
Spark Plug:
25 132 23-S RC12YC
Deck Belt:
954-05025A
Drive Belt:
954-05027B
Blade:
742P05086
Xtreme Blade:
742P05086-X
Ignition Key:
925-1745A

Key Features

  • The Cub Cadet XT1 ST54 FAB is powered by a 24 hp KOHLER 7000 Series twin cylinder engine.
  • 54" fabricated deck, 11-gauge, triple-blade deck with AeroForce(TM) deck design that optimizes airflow and maximizes suction to reduce clumping during discharge and improves bagging performance while delivering the pristine Cub Cadet Signature Cut™.
  • Optimized steering system for responsive handling gives a 16-inch turn radius a zero-turn feel.
  • 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours/limited lifetime fabricated deck shell.
  • Ideal for mowing up 2-4 acres of mostly flat terrain and a few obstacles.
