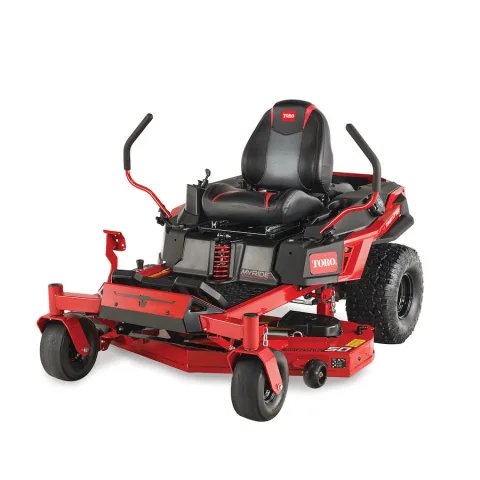

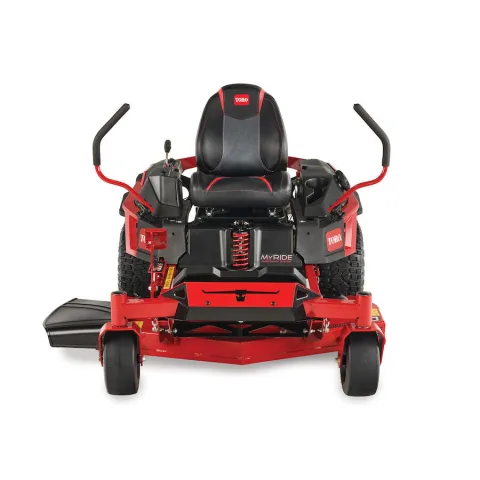

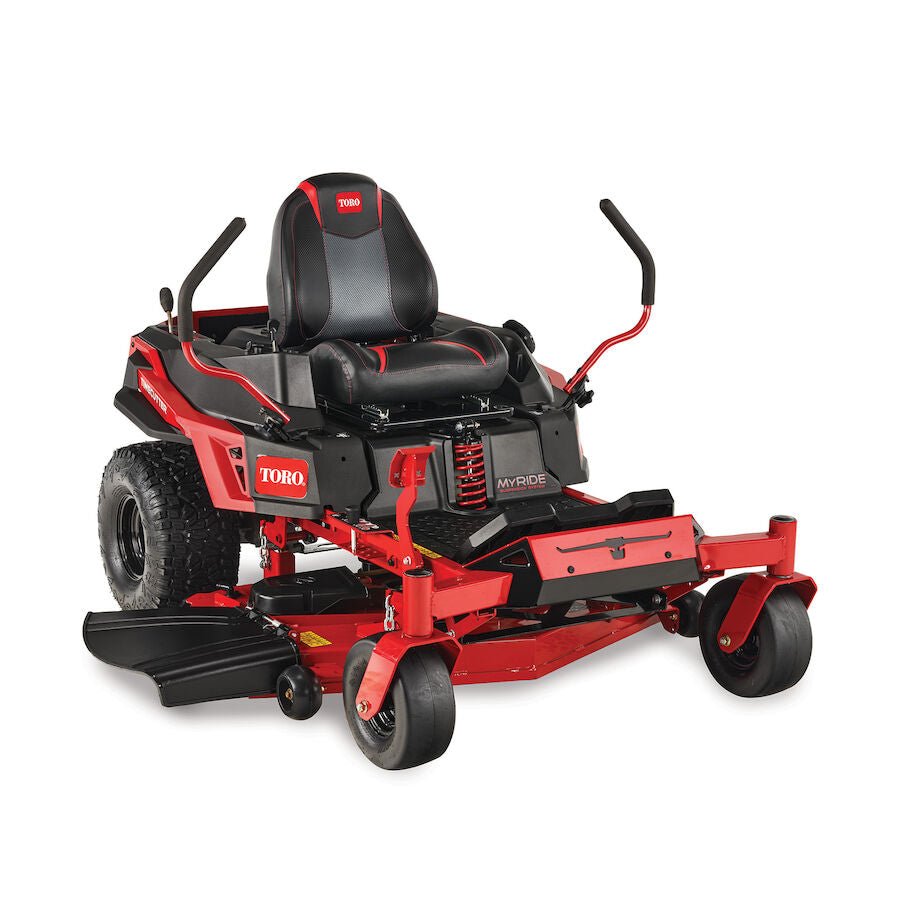

Toro 77503 54" TimeCutter MAX MyRide Zero Turn Mower
77503$4,599.00 $5,299.00
In StockView Product
1 / 3 Have Questions?
Our experts are here to answer your questions.
Store pickup and delivery available — choose at checkout.
Product Description
50" TimeCutter® Max MyRide® Zero Turn Mower
When it comes to your yard, second best just won't cut it. That's why the Toro TimeCutter MAX is designed to take down grass like a pro and leave you feeling like a million bucks when you're done. With features like an unflinching heavy duty IronForged deck and fully floating MyRIDE® Suspension, you get the toughness and precision that comes with over a century of pro-level engineering and a shockingly smooth, back-saving ride and save a ridiculous amount of time cutting.
Parts Manual
Specifications
General
- Product Number:
- 77502
- Brand:
- Toro
- Product Type:
- Zero-Turn
Specifications
- Air Filter:
- Standard Kawasaki Air Cleaner
- Anti Scalp Wheels:
- 3 Standard
- Armrests:
- Optional
- Blade Tip Speed:
- 17,600 ft/min / 5,364 m/min
- Carrier Frame:
- 3 in. x 1.5 in. x 0.120 in. Wall Tubular Steel
- Caster Tires:
- 12 in. x 6 in. - 5 in. Pneumatic
- Clutch:
- Electromagnetic
- Comfort Platform:
- MyRIDE® Suspension System
- Cooling System:
- Air Cooled
- Cup Holder:
- Standard
- Cutter System:
- Steel Cutting Blade
- Deck Design:
- 10-Gauge steel IrongForged®
- Deck Material:
- 10 Gauge Steel
- Deck Size:
- 50"
- Discharge Chute:
- Side
- Drive System:
- HYDRO
- Drive Tires:
- 20 in. x 10 in. - 8 in
- Drive Type:
- Rear-Wheel Drive
- Engine:
- 23 hp Kawasaki FR691V 726cc
- Engine Brand:
- Kawasaki
- Engine Displacement (cc):
- 726 cc
- Engine Horsepower:
- 23.0 hp
- Foot Operated Height of Cut:
- Standard
- Forward Ground/Transport Speed:
- Up to 7.0 mph / 11.2 kph
- Forward Mowing Speed:
- Up to 7.0 mph / 11.2 kph
- Frame:
- 3 in. x 1.5 in. Steel Tubing
- Fuel Capacity:
- 5 gal. / 18.9 L / 20 Qt.
- Greasable Bearings:
- Yes
- Height of Cut:
- 1.5 - 5.0 in. / 3.8 - 12.7 cm
- Hitch Bracket:
- Standard
- Hour Meter:
- Optional
- Hydraulic Drive:
- Standard
- Lighting:
- Optional
- Number of Blades:
- 3
- Product Type:
- TimeCutter Max MyRide
- Product Use:
- Residential
- Recommended Oil Type:
- 10W-30
- Seat:
- 19" Gaming Style
- Spindle Bearings:
- Maintenance-free
- Spindle Housing:
- Cast-Aluminum
- Steering Controls:
- Twin Lever
- Steering Dampeners:
- Standard Dampers
- Terrain Type:
- Flat with Obstacles
- Tires:
- 12 in. x 6 in. Front, 20 in. x11 in. Rear
- Tow Capacity:
- Combined machine, user, towed weight may not exceed 1,000 lbs.
- Transmission:
- Dual Hydrostatic HG-EZT2200
- Washout Port:
- Standard
- Weight:
- 684 lbs
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
