Product Description

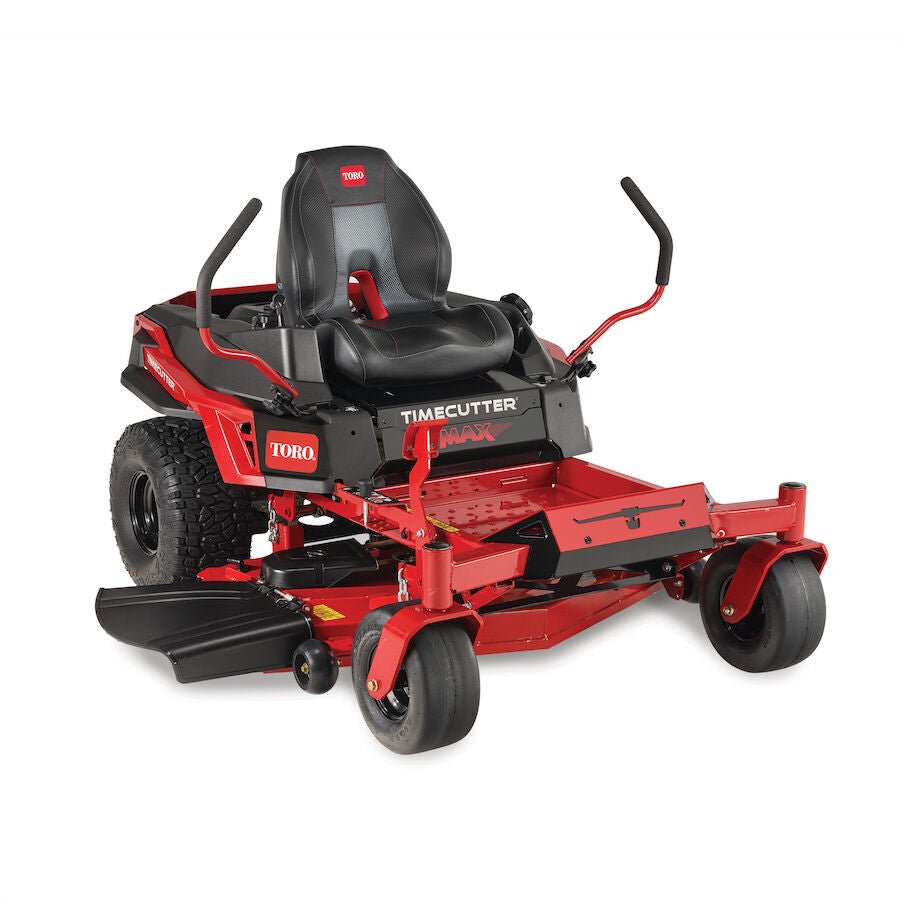

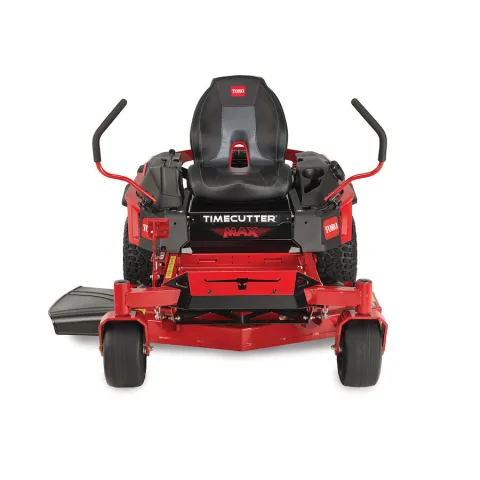

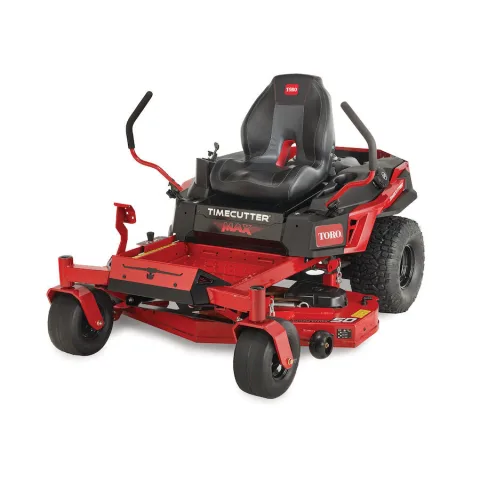

No matter how you cut it, the Toro TimeCutter MAX arms you with professional performance, rock-solid durability and best-grass-in-the-neighborhood precision. Built with over a century of pro-level engineering, this lawn-dominating machine features a heavy-duty IronForged deck, beefy, traction-happy tires, easy maintenance, and a plush, gaming-style seat to give you the edge over whatever nature throws your way.
Parts Manual
Specifications
General
- Product Number:
- 77505
- Brand:
- Toro
- Product Type:
- Zero-Turn
Specifications
- Air Filter:
- Standard Briggs & Stratton Air Cleaner
- Anti Scalp Wheels:
- 3 Standard
- Armrests:
- Optional
- Bagger Capacity:
- 4.9 bushels
- Blade Tip Speed:
- 17,600 ft/min / 5,364 m/min
- Box Dimensions:
- 82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm
- CARB Compliant:
- Not CARB Compliant
- Carrier Frame:
- 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
- Caster Tires:
- 12 in. x 6 in. - 5 in. (30.5 x 12.2 cm - 12.7 cm) Pneumatic
- Clutch:
- Electromagnetic
- Comfort Platform:
- Standard Suspension
- Cooling System:
- Air Cooled
- Crankshaft:
- 1" (25 mm) w/Steel Protector
- Cup Holder:
- Standard
- Cutter System:
- Steel Cutting Blade
- Deck Design:
- 10-Gauge steel IrongForged®
- Deck Material:
- 10 Gauge Steel
- Deck Size:
- 50 in / 127 cm
- Discharge Chute:
- Side
- Drive System:
- HYDRO
- Drive Tires:
- 20 in. x 10 in. - 8 in (51 cm x 26 cm - 20.3 cm)
- Drive Type:
- Rear-Wheel Drive
- Engine:
- 22 hp Briggs & Stratton EXI 724cc
- Engine Brand:
- Briggs & Stratton
- Engine Displacement (cc):
- 724cc
- Engine Horsepower:
- 22.0 hp
- Engine Power (kW):
- 16.4 kW
- Foot Operated Height of Cut:
- Standard
- Forward Ground/Transport Speed:
- Up to 7.0 mph / 11.2 kph
- Forward Mowing Speed:
- Up to 7.0 mph / 11.2 kph
- Frame:
- 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
- Fuel Capacity:
- 5 gal. / 18.9 L / 20 Qt.
- Fuel Type:
- Gasoline
- Greasable Bearings:
- Yes
- Height of Cut:
- 1.5 - 5.0 in. / 3.8 - 12.7 cm
- Hitch Bracket:
- Standard
- Hour Meter:
- Optional
- Hydraulic Drive:
- Standard
- Lighting:
- Optional
- Number of Blades:
- 3
- Product Type:
- TimeCutter Max
- Product Use:
- Residential
- Recommended Oil Type:
- 10W-30
- Roll-Over Protection (ROPS):
- Optional
- Seat:
- 19" Gaming Style
- Spindle Bearings:
- Maintenance-free
- Spindle Housing:
- Cast-Aluminum
- Start Type:
- Electric
- Steering Controls:
- Twin Lever
- Steering Dampeners:
- Standard Dampers
- Terrain Type:
- Flat with Obstacles
- Tires:
- 12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear
- Tow Capacity:
- Combined machine, user, towed weight may not exceed 1,000 lbs.
- Transmission:
- Dual Hydrostatic HG-EZT2200
- Washout Port:
- Standard
- Weight:
- 644 lbs / 292.1 kg
