Product Description

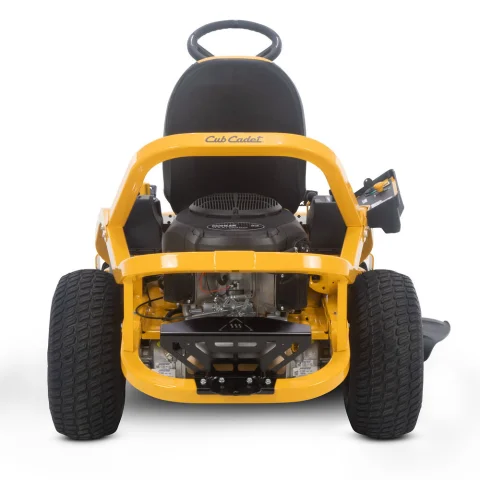

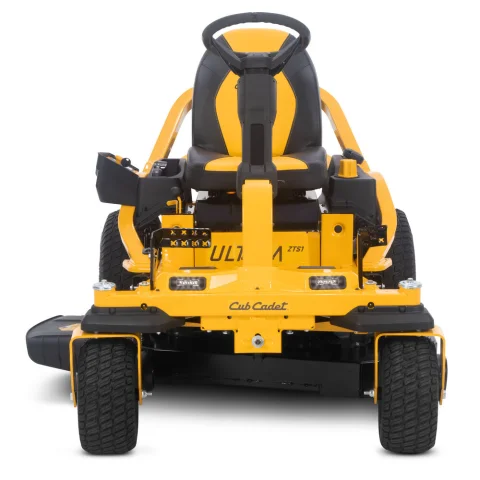

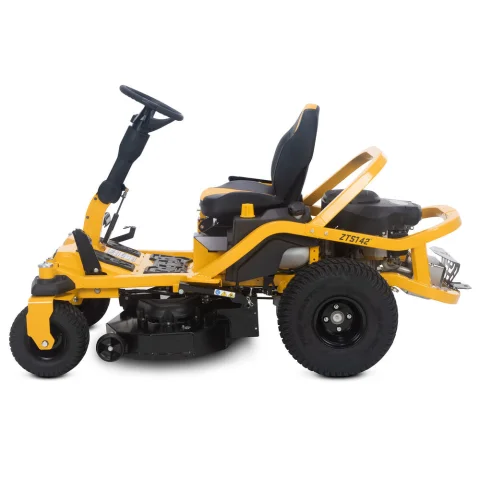

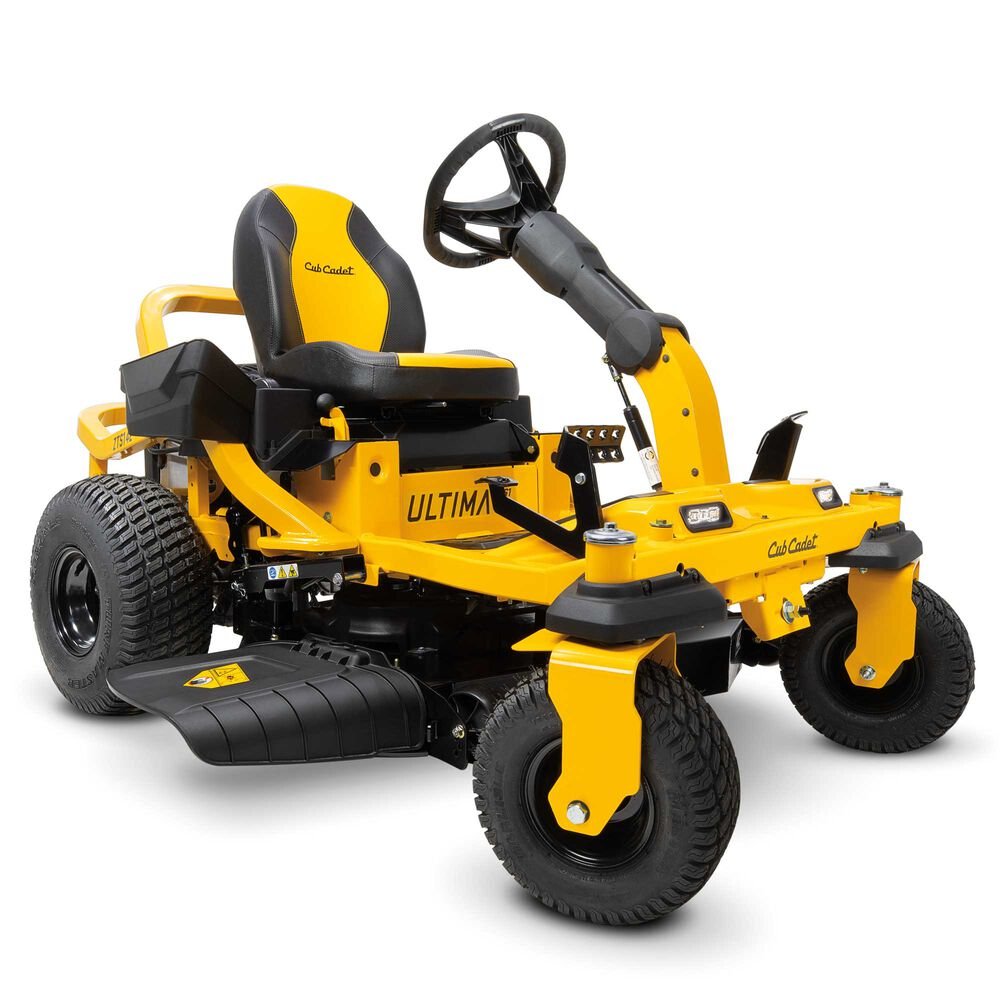

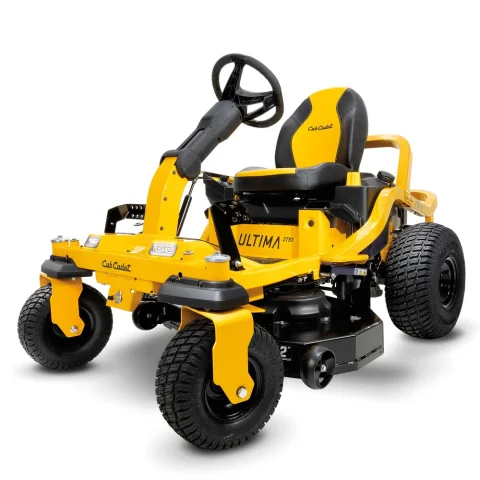

ZTS1 42
Specifications
General
- Product Number:
- 17ARGBYEA10
- Brand:
- Cub Cadet
- Product Type:
- Zero-Turn
Engine
- Engine Brand:
- Kohler®
- Engine Model:
- 7000 Series
- Engine Model Number:
- KT722
- Engine Displacement:
- 747cc
- Engine Output:
- 22HP
- Starter Type:
- Electric
- Fuel Tank Capacity:
- 3.5 gal. US (13.25 L)
- Cylinders:
- Twin
- Engine Start:
- Ignition Key
- Engine Oil Capacity:
- 2.0 qt. US (1.89 L)
- Lubrication:
- Fully pressurized
- Charging System:
- 12 amp regulated
- Fuel Gauge:
- No
- Governor:
- Mechanical
- Choke:
- Choke-a-matic
- Air Filter:
- Dual element
- Oil Filter:
- Yes
- Fuel Delivery:
- Carburetor
Battery
- Battery:
- 210 CCA
- Battery Type:
- AGM (Absorbent Glass Mat)
- Battery Voltage:
- 12V
Drive System
- Transmission:
- Hydro-Gear EZT 2200
- Forward Speed:
- 7 MPH / 11.3 km/h
- Reverse Speed:
- 3.5 MPH / 5.6 km/h
- Drive System:
- Hydrostatic
Cutting Deck
- Deck Cutting Width:
- 42 in
- Deck Wash:
- No
- Deck Material:
- 11-gauge steel
- Deck Engagement (PTO):
- Electric
- Deck Construction:
- Fabricated
- Blade(s):
- 2
- Deck Lift:
- Foot pedal with Dial Adjust
- Cutting Height Range:
- 1'' - 4.5''
- Anti-Scalping:
- 2 gauge wheels
- Deck Positions:
- 15
Warranty
- Residential Warranty:
- 3-year unlimited hours
- Frame Warranty:
- Lifetime Limited
- Deck Shell Warranty:
- Lifetime limited
- Commercial Warranty:
- No
Chassis
- Frame:
- 2'' x 2'' tubular steel
- Turning Radius:
- 0°
- ROPS:
- No
- Rear Tow Hitch:
- Yes
- Corrosion Protection:
- Yes
Controls
- Cruise Control:
- No
- Brakes:
- Disc
- Steering Control:
- Steering Wheel
Comfort
- Seat Type:
- 20" high back
- Armrests:
- No
- Seat Adjustment:
- Lever
- Front Caster Suspension:
- No
Wheels
- Rear Tires:
- 20”x 8”-8"
- Front Tires:
- 16"x 6.5"-6"
- Tire Tread:
- Turf Master / Multi Trac
Additional Specifications
- Hour Meter:
- No 490-900-C075
- Mulch Kit:
- Available separately
- Headlight(s):
- Dual-LED
- Cup Holder:
- Yes
- Operator Presence System:
- Yes
- Parking Brake:
- Foot Operated
- Model Number:
- 17ARGBYEA10
Maintenance Parts
- Air Filter:
- 32 883 09-S1 OR 490-200-K054
- Oil Filter:
- 12 050 01-S
- Engine Oil:
- 25 357 65-S OR 490-000-C044
- Fuel Filter:
- 25 050 22-S1
- Spark Plug:
- 25 132 23-S OR RC12YC
- Deck Belt:
- 754P06134 OR 490-501-C081
- Drive Belt:
- 954-04317A OR 490-501-C069
- Blades:
- 742P05528
- Xtreme Blades:
- 742P05177A-X OR SET 490-110-C202
- Ignition Key:
- 925-1745A
- Hour Meter Kit:
- 490-900-C075
Key Features
- Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
- A 22 HP/725cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
- Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
