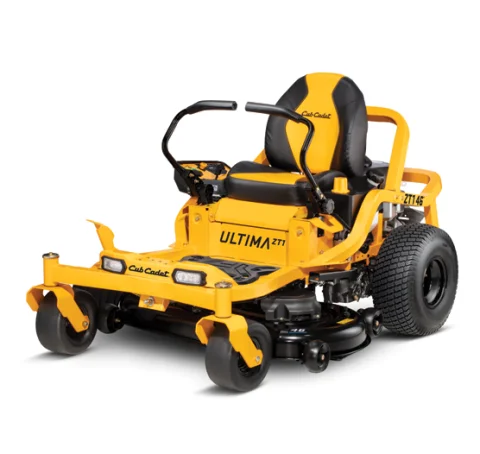

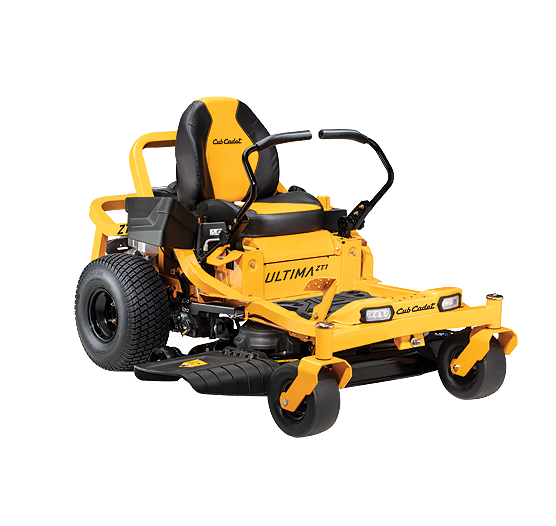

1 / 2 CUB CADET ULTIMA ZT1 46 17RREACN010
Product number: 17RREACN010
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Product Description
ULTIMA ZT1 46
WARRANTY: 3 YEAR LIMITED
22 HP 725cc Kohler KT7000 Series Twin-Cylinder Engine.
Ideal for mowing slight rolling hills and several obstacles up to 2 acres.
An open frame design and hinged/removable floor pan allows easy access to the deck and engine for quick & ease of maintenance.
Lap bar-controlled dual-hydro transmissions with mow in reverse.
Specifications
General
- Product Number:
- 17RREACN010
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Engine
- Engine Brand:
- Kohler®
- Engine Model:
- KT725-3083
- Engine Displacement:
- 725cc
- Engine Output:
- 22 HP
- Fuel Tank Capacity:
- 3.5 Gallon fuel tank capacity to keep you mowing and minimize time loss for refueling need
Drive System
- Transmission:
- Dual Hydro-Gear™ EZT-2200™
- Forward Speed:
- 7 mph
- Reverse Speed:
- 3.5 mpH
Cutting Deck
- Deck Cutting Width:
- 46"
- Deck Wash:
- SmartJet deck wash system provides high pressure water that cleans out grass and debris build-up under the deck
- Deck Material:
- 13-gauge stamped steel
- Deck Engagement (PTO):
- Electronic fingertip blade engagement PTO allows for smooth operation of the deck or attachments
- Spindle Construction:
- Sealed cast aluminum housing (maintenance-free)
- Cutting Height Range:
- 1'' - 4.5'' leads to a precise even cut
- Deck Positions:
- Foot pedal with spring assist creates the perfect cut | 15 Positions
Chassis
- Frame:
- High-strength, continuous square 2'' x 2'' tubular steel frame with fully E-Coat lower frame and Triple Guard Corrosion Defense System™ protects against wear and tear.
- Front Axle(s):
- Fixed 2" x 2.5" fully welded tubular steel axle (e-coated)
- Turning Radius:
- Zero degrees
- Bumper:
- 2" x 2" Tubular steel bumper
- Rear Tow Hitch:
- Standard
- Yokes:
- 1/4" steel yokes provide greater durability
Controls
- Handle:
- 3- way adjustable ergonomic lap bar
- Brakes:
- Integrated parking brake system in lap bars for ease of use
- Steering Control:
- 3-way adjustable ergonomic lap bar
- Headlight(s):
- Illuminating Dual-LED Headlights provide ultimate vision for mowing in low light conditions
- Mow in Reverse:
- Standard
Comfort
- Seat Type:
- Automotive-inspired, ergonomic, fully adjustable premium 18'' high-back seat
- Seat Suspension:
- Advanced polymer seat suspension system optimizes comfort while reducing operators fatigue
Dimensions
- Dimensions:
- L/W/H 80'' x 58'' x 47''
- Weight (approx.):
- 570 lbs.
Additional Specifications
- Model Number:
- 17RREACT010, 17RREACN010, 17RREACS010
Warranty
- Warranty:
- 3-year / unlimited-hour warranty
- Frame Warranty:
- Limited lifetime warranty on frame
Maintenance Parts
- Air Filter:
- 32 883 09-S1
- Oil Filter:
- 12 050 01-S
- Fuel Filter:
- 25 050 22-S1
- Spark Plug:
- 25 132 23-S RC12YC
- Deck Belt:
- 754P06135
- Drive Belt:
- 754P05874 11/5/2020 & BEFORE
- Drive Belt:
- 954-04317A 11/5/2020 & AFTER
- Blades:
- 942-04244A
- Xtreme Blades:
- 942-04290-X
- Ignition Key:
- 925-1745A
