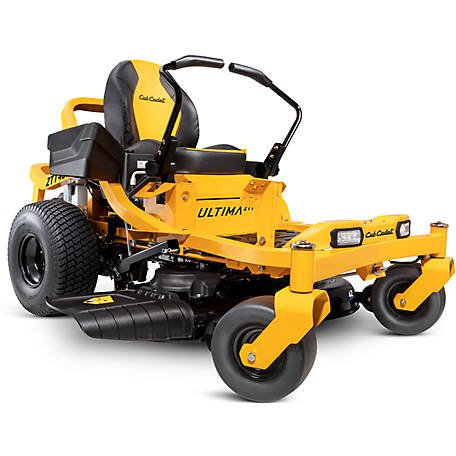

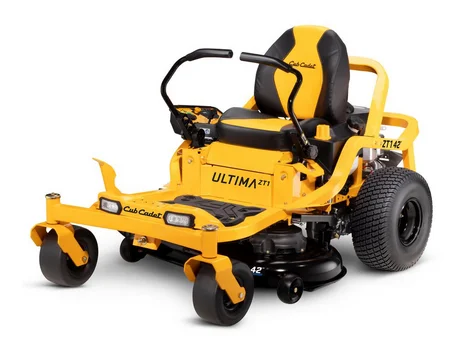

1 / 2 Cub Cadet ULTIMA ZT1 42 17RREACS010
Product number: 17RREACS010
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Product Description
FACTORY MODEL: 17RREACS010, 17AREACS010
ULTIMA ZT1 42
22 HP 725cc professional-grade 7000 Series KOHLER V-twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
Ideal for mowing slight rolling hills and several obstacles up to 2 acres.
Equipped with an open frame design and hinged/removable floor pan, allowing quick and easy access to the deck and engine for ease of maintenance.
Lap bar-controlled dual-hydro transmissions with mow in reverse.
Specifications
General
- Product Number:
- 17RREACS010
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Engine
- Engine:
- Kohler KT725-3083
- Engine Displacement:
- 725cc
- Engine Output:
- 22 HP
- Fuel Tank Capacity:
- 3.5 Gallon fuel tank capacity to keep you mowing and minimize time loss for refueling needs
Drive System
- Transmission:
- Dual Hydro-Gear™ EZT-2200™
- Forward Speed:
- 7 mph
- Reverse Speed:
- 3.5 mph
Cutting Deck
- Deck Cutting Width:
- 42"
- Deck Wash:
- SmartJet deck wash system provides high pressure water that cleans out grass and debris build-up under the deck
- Deck Material:
- 13-gauge stamped steel
- Deck Engagement (PTO):
- Electronic fingertip blade engagement
- Spindle Construction:
- Sealed cast aluminum housing (maintenance-free)
- Blade(s):
- Twin Blades
- Cutting Height Range:
- 1'' - 4.5'' leads to a precise even cut
- Deck Positions:
- Foot pedal with spring assist creates the perfect cut | 15 Positions
Chassis
- Frame:
- 2'' x 2'' tubular steel frame with fully E-Coat lower frame and Triple Guard Corrosion Defense System™
- Front Axle(s):
- Fixed 2" x 2.5" fully welded tubular steel axle (e-coated)
- Turning Radius:
- Zero degrees
- Front Tires:
- 11"x 6"-5"
- Rear Tires:
- 20”x8”-8"
- Tire Tread:
- Turf Master
- Bumper:
- 2" x 2" Tubular steel bumper
- Rear Tow Hitch:
- Standard
- Corrosion Protection:
- Triple Guard Corrosion Defense System™
- Yokes:
- 1/4" steel yokes provide greater durability
Controls
- Cruise Control:
- N/A
- Handle Grip(s):
- Ergonomic lap bar
- Brakes:
- Integrated parking system in lap bars for ease of use
- Steering Wheel Control:
- 3-way adjustable ergonomic lap bar
- Headlight(s):
- Illuminating Dual-LED Headlights provide ultimate vision for mowing in low light conditions
- Mow in Reverse:
- Standard
Comfort
- Seat Type:
- Automotive-inspired, ergonomic, fully adjustable premium 18'' high-back seat
- Seat Suspension:
- Durable, advanced polymer seat suspension system
Dimensions
- Dimensions:
- L/W/H 80'' x 54'' x 47''
- Weight (approx.):
- 500 lbs.
Additional Specifications
- Mulch Kit:
- Optional
- Model Number:
- 17RREACS010 OR 17AREACS010
Warranty
- Warranty:
- The Strongest Warranty in its class 3-year / unlimited-hour warranty. Plus, limited lifetime warranty on frame.
Maintenance Parts
- Air Filter:
- 32 883 09-S1
- Oil Filter:
- 12 050 01-S
- Fuel Filter:
- 25 050 22-S1
- Spark Plug:
- 25 132 23-S RC12YC
- Deck Belt:
- 754P06134
- Drive Belt:
- 754P05874
- Blades:
- 942-04312A
- Xtreme Blades:
- 942-04308-X
- Ignition Key:
- 925-1745A
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
