Product Description
ZT1 42 FAB

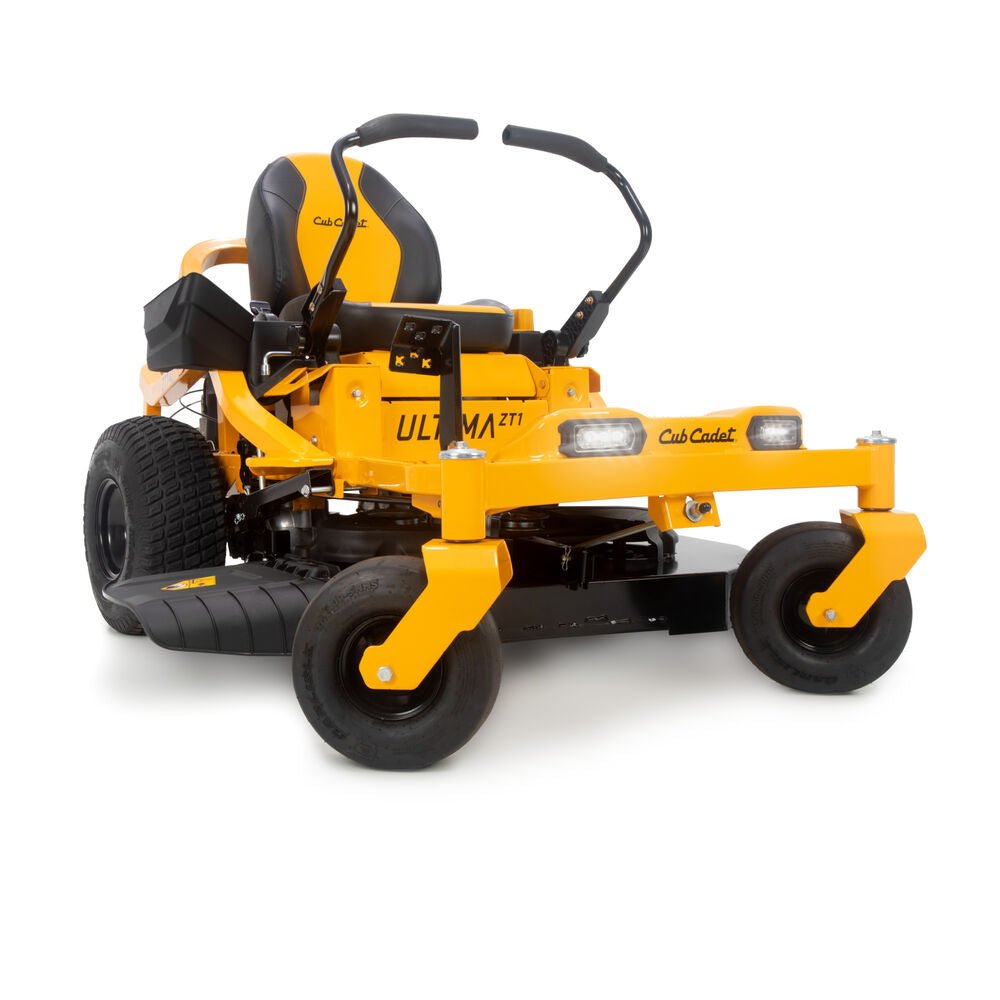

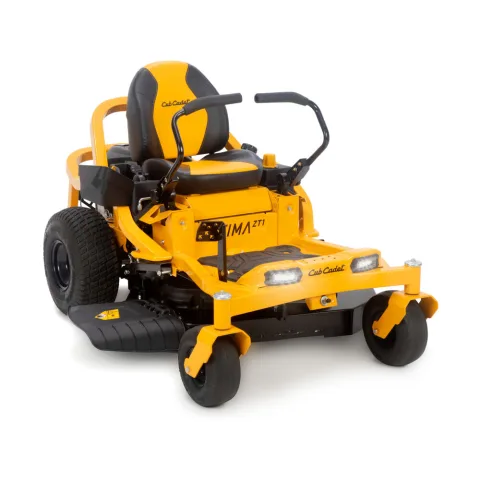

The Cub Cadet Ultima Series ZT1 42 42" 21.5 HP Zero-Turn Lawn Mower with AeroForce Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish. A continuous tubular steel frame with fully e-coated corrosion defense system designed to help protect against wear and tear.
Specifications
General
- Product Number:
- 17RLEACS010
- Brand:
- Cub Cadet
- Product Type:
- Zero-Turn
Engine
- Engine Brand:
- Kawasaki®
- Engine Model:
- FR Series
- Engine Model Number:
- 651V
- Engine Displacement:
- 726cc
- Engine Output:
- 21HP
- Starter Type:
- Electric
- Fuel Tank Capacity:
- 3.5 gal. US (13.25 L)
- Cylinders:
- Twin
- Engine Start:
- Ignition Key
- Engine Oil Capacity:
- 1.8 qts. US (1.7 L)
- Lubrication:
- Fully pressurized
- Charging System:
- 12 amp regulated
- Fuel Gauge:
- No
- Governor:
- Mechanical
- Choke:
- Separate Choke
- Air Filter:
- Dual element
- Oil Filter:
- Yes
- Fuel Delivery:
- Carburetor
Battery
- Battery:
- 210 CCA
- Battery Type:
- AGM (Absorbent Glass Mat)
- Battery Voltage:
- 12V
Drive System
- Transmission:
- Hydro-Gear EZT 2200
- Forward Speed:
- 7 MPH
- Reverse Speed:
- 3.5 MPH
- Drive System:
- Hydrostatic
Cutting Deck
- Deck Cutting Width:
- 42 in
- Deck Wash:
- No
- Deck Material:
- 13-gauge steel
- Deck Engagement (PTO):
- Electric
- Deck Construction:
- Stamped
- Blade(s):
- Two
- Deck Lift:
- Foot pedal with Dial Adjust
- Cutting Height Range:
- 1'' - 4.5''
- Anti-Scalping:
- Two gauge wheels
- Deck Positions:
- 15
Warranty
- Residential Warranty:
- 3-year unlimited hours
- Frame Warranty:
- Lifetime Limited
- Deck Shell Warranty:
- Lifetime Limited
Chassis
- Frame:
- 2'' x 2'' tubular steel
- Turning Radius:
- 0°
- ROPS:
- No
- Rear Tow Hitch:
- Yes
- Corrosion Protection:
- Yes
Controls
- Cruise Control:
- No
- Steering Control:
- Lap Bars
Comfort
- Seat Type:
- 20" high back
- Armrests:
- No
- Seat Adjustment:
- Knob
Wheels
- Rear Tires:
- 20”x 8”-8"
- Front Tires:
- 11"x 6"-5"
Additional Specifications
- Hour Meter:
- No 490-900-C075
- Headlight(s):
- Dual-LED
- Cup Holder:
- Yes
- Operator Presence System:
- Yes
- Parking Brake:
- Lap Bar Integrated
- Model Number:
- 17RLEACS010
Maintenance Parts
- Air Filter:
- KM-11013-0752
- Oil Filter:
- KM-49065-0721
- Fuel Filter:
- KM-49019-0031
- Spark Plug:
- KM-BPR4ES
- Deck Belt:
- 754P06134 OR 490-501-C081
- Drive Belt:
- 954-04317A OR 490-501-C069
- Blades:
- 742P05528
- Xtreme Blades:
- 742P05177A-X OR SET 490-110-C202
- Ignition Key:
- 925-1745A
- Hour Meter Kit:
- 490-900-C075
Key Features
- A 21.5 HP 726cc Kawasaki FR651V twin-cylinder OHV engine delivers high-performance power to tackle your yard
- Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
- A continuous square 2" x 2" tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process that electronically applies automotive-grade corrosion resistance with meticulous care to protect…: A continuous square 2" x 2" tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process that electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear
