Product Description
DEMO MOWER
Specifications
General
- Product Number:
- 53AI8CSA050
- Brand:
- Cub Cadet
- Product Type:
- Stand-On
Engine
- Engine Brand:
- Kawasaki
- Engine Model:
- FX801V-AS15
- Engine Displacement:
- 852cc
- Engine Output:
- 25.5 hp
- Starter Type:
- Electronic
- Fuel Tank Capacity:
- 8 gal
- Lubrication:
- Full - Spin On
Drive System
- Transmission:
- 12cc Hydro-Gear® pumps / 240cc Parker® wheel motors
- Forward Speed:
- 10 mph
- Reverse Speed:
- 5 mph
Cutting Deck
- Deck Cutting Width:
- 54"
- Deck Material:
- 10-gauge steel
- Deck Engagement (PTO):
- Electronic with quick reset
- Deck Construction:
- 10 ga shell w/ 7 ga top & bottom reinforcement
- Spindle Construction:
- HD 8" aluminum housing, 35mm double-row sealed ball bearings, 1-3/8" through-shaft and maintenance-free design
- Blade(s):
- Three 19" long high-lift Marbain blades, 1-1/2" of blade overlap
- Deck Lift:
- Hand lever adjusting spring lift, pin selector for height
- Cutting Height Range:
- 1-1/2" - 5"
- Anti-Scalping:
- 4 front deck gauge wheels
Chassis
- Frame:
- 2" x 3" full-length tube frame
- Front Axle(s):
- 2" x 3" tube construction
- Front Caster Mount:
- 3/8" thick steel
- Front Tires:
- 13 x 5-6" smooth flat-free
- Rear Tires:
- 24" x 12"-12"
- Suspension:
- Hand lever adjust, 3-position spring suspension foot platform
Controls
- Brakes:
- Hand lever control / external band
- Steering Control:
- Lap Bar Steering Wheel Control
Dimensions
- Dimensions:
- L/W/H 69" / 68" / 56"
- Weight (approx.):
- 1,080
Additional Specifications
- Model Numbe:
- 53AI8CSA050
Warranty
- Warranty:
- 3-year / no-hour-limit warranty
- Deck Shell Warranty:
- 5-year / 1,750 hour limited manufacturer’s warranty
Maintenance Parts
- Air Filter:
- KM-11013-7044
- Pre Filter:
- KM-11013-7045
- Oil Filter:
- KM-49065-0724
- Fuel Filter:
- KM-49019-0027 OR 490-240-0001
- Spark Plug:
- KM-BPR4ES
- Deck Belt:
- 954-04327
- PTO Belt:
- 754P06074
- Drive Belt:
- 754P05914A
- Blades:
- 942-04416 OR 490-110-C186
- Xtreme Blade:
- 02005018-X
- Ignition Key:
- 925-06908
- Trans Filter:
- PH-411135S
- Engine Oil:
- 490-000-C044
Key Features

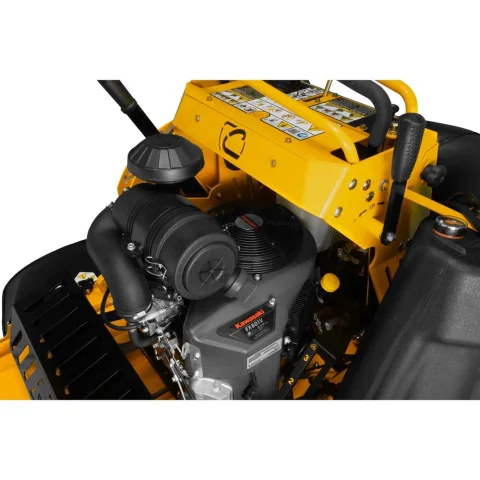

- Commercial-grade 25.5 hp Kawasaki(R) FX801V (852cc) engine
- A fully fabricated 54-inch 10-gauge steel commercial deck shell with top bottom and side reinforcements plus standard 24" tires give you more ground clearance to easily hop on curbs.
- A large, fully adjustable suspension platform allows you to adjust tension and glide comfortably through tough terrains.
- High-performance commercial Hydro-Gear® PK 12cc pumps & Parker® TL 240cc wheel motors deliver quick response to the drive wheels and smooth control for cutting speeds up to 10 mph.
- 3-year limited commercial warranty (no hour limitations) and 5-year/1,750-hour limited deck assembly warranty.
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
