Product Description

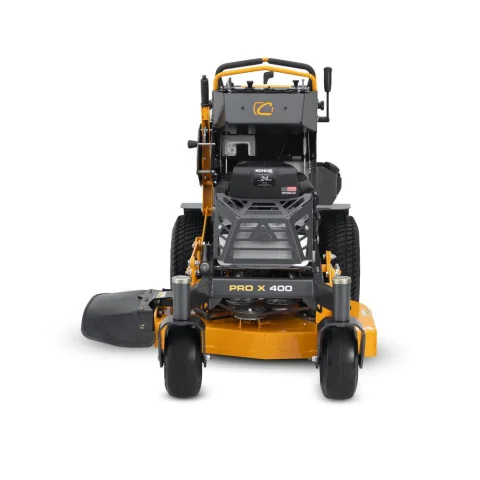

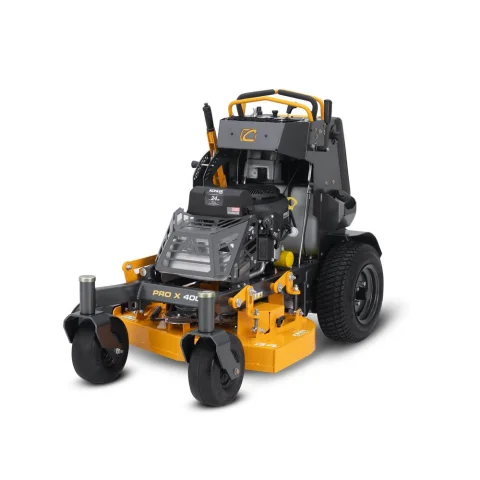

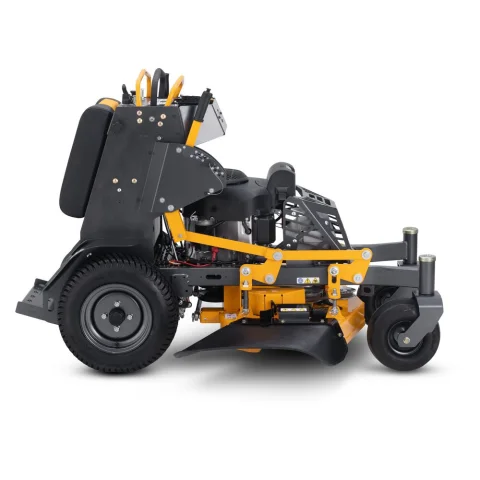

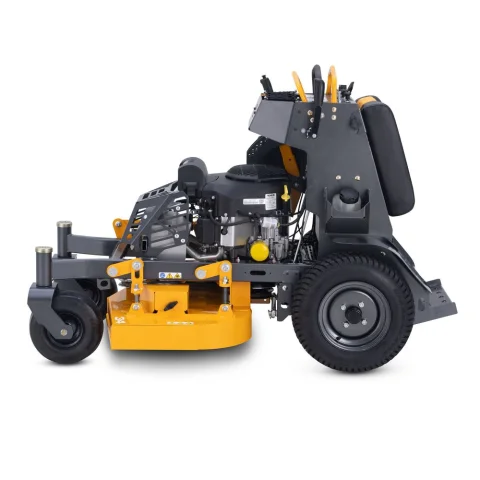

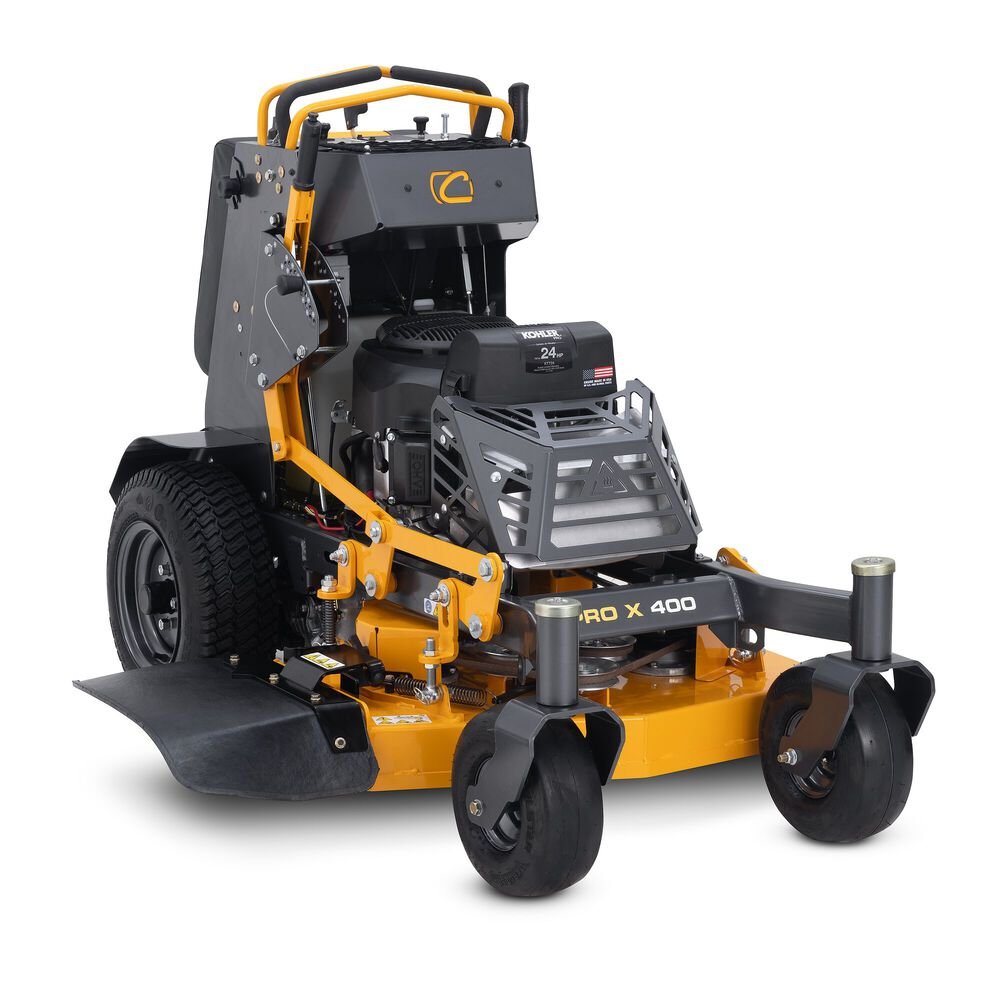

Stand up to tough terrain with the Cub Cadet® PRO X 434 34-in. 24HP* Commercial Stand-On Lawn Mower featuring a commercial-grade 24HP* Kohler® KT-PRO (747cc) engine. Maneuver through gates and tight spaces with a fully fabricated 34-inch 10-gauge steel commercial deck with 7-gauge bottom reinforcement. Power past obstacles and uneven terrain with a 1.5-in. x 3-in. tubular steel frame designed for durability. Backed by a 4-year limited, 800-hour warranty and a nationwide network of Cub Cadet Dealers.
Specifications
General
- Product Number:
- 47RS7WN4A10
- Brand:
- Cub Cadet
- Product Type:
- Stand-On
Engine
- Engine Brand:
- Kohler
- Engine Model:
- Kt724
- Engine Displacement:
- 747cc
- Engine Output:
- 24 hp
- Starter Type:
- Electronic
- Fuel Tank Capacity:
- 5.4 gal
- Lubrication:
- Full - Spin On
Drive System
- Transmission:
- Hydro Gear 3100
- Forward Speed:
- 7 mph
- Reverse Speed:
- 3.5 mph
Cutting Deck
- Deck Cutting Width:
- 34"
- Deck Material:
- 10-gauge steel
- Deck Engagement (PTO):
- Electronic
- Deck Construction:
- 10 ga shell w/ 7 ga top & bottom reinforcement
- Spindle Construction:
- 5” sealed cast aluminum housing (maintenance-free)
- Deck Lift:
- Hand lever adjusting spring lift, pin selector for height
- Cutting Height Range:
- 1-1/2" - 4.55"
Chassis
- Frame:
- 1.5" x 3" full-length tube frame
- Front Axle(s):
- 1.5" x 3" tube construction
- Front Caster:
- Mount 3/8" thick steel
- Front Tires:
- 20" x 6.5" - 5" smooth flat-free
- Rear Tires;:
- 11" x 6"-5"
Controls
- Brakes:
- Hand lever actuated scrub brake
- Steering Control:
- Lap Bar
Additional Specifications
- Hour meter:
- Crew Boss
- Model Number:
- 47RS7WN4A10
Warranty
- Commercial Warranty:
- 4-year / 800 Hour
Maintenance Parts
- Air Filter:
- 32 883 13-S OR 490-200-K064
- Pre Filter:
- 32 083 14-S
- Oil Filter:
- 52 050 02-S
- Fuel Filter:
- 24 050 13-S
- Spark Plug:
- 25 132 14-S
- Deck Belt:
- 954-04219
- Drive Belt:
- 754P07158
- Blades:
- 607281 (NEED 2)
- Trans Filter:
- HG-52114P
Key Features
- Powered by a commercial-grade 24 HP* Kohler® KT-PRO (747cc) engine
- Maneuver through gates and other tight spots with a fully fabricated 34-in. 10-gauge steel commercial deck with 7-gauge bottom reinforcement.
- Adjust tension and glide comfortably through uneven terrain thanks to a large, fully adjustable suspension platform
- High performance commercial Hydro-Gear® ZT-3100 transmission delivers quick response to the drive wheels and smooth control for cutting up to 7mph.
- Stand up to rough terrain with a 1.5-in. x 3-in. tubular steel frame designed for durability
