Cub Cadet
3-in-1 Blade for 30" Cutting Decks – MTD Genuine OEM 942-04385 (Star Center)
942-04385$31.47 $34.97
In StockView Product
1 / 5 Have Questions?
Our experts are here to answer your questions.
Store pickup and delivery available — choose at checkout.
Product Description

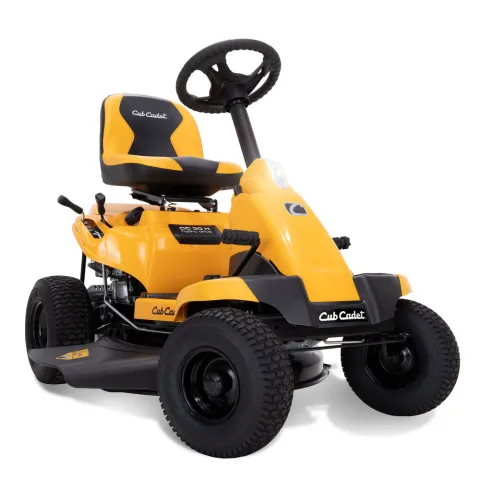

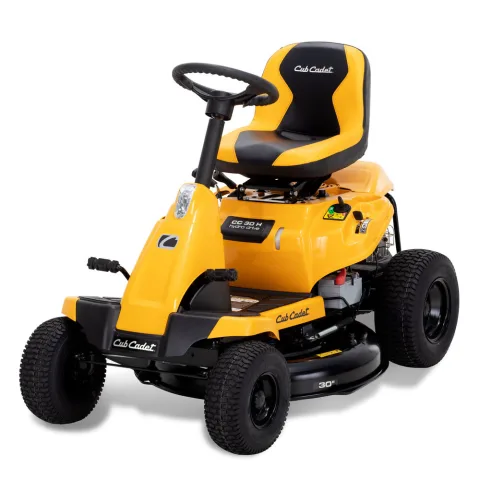

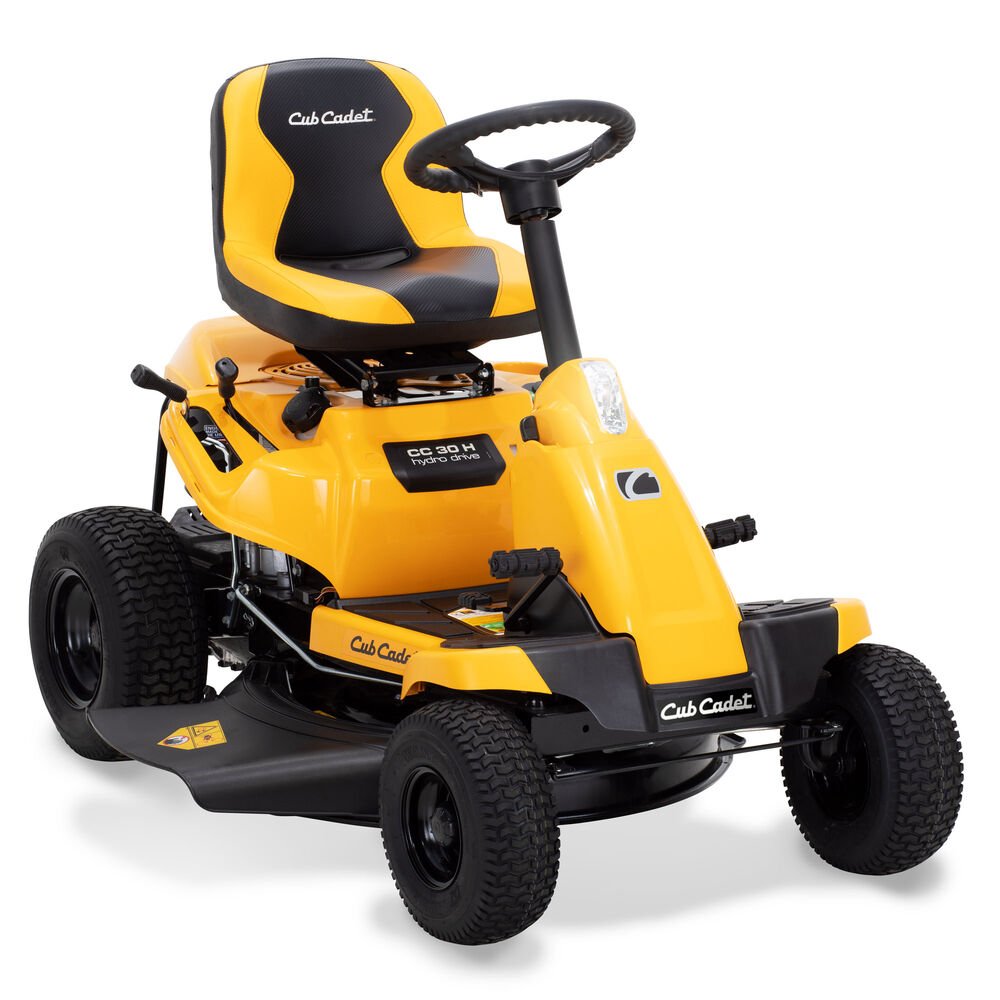

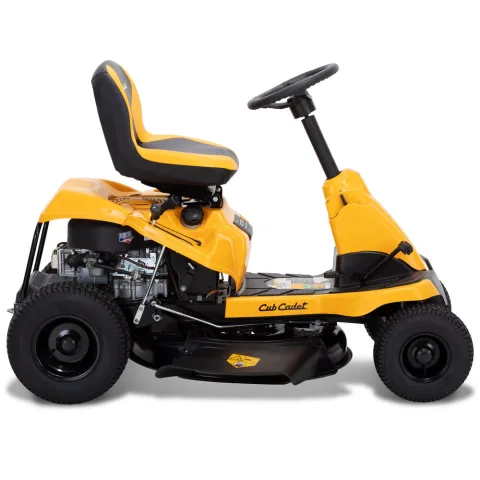

CC 30 H Riding Lawn Mower
Specifications
General
- Product Number:
- 13CC21JDA10
- Brand:
- Cub Cadet
- Product Type:
- Zero-Turn
Engine
- Engine Brand:
- Briggs & Stratton
- Engine Model Number:
- 21R707-0152
- Engine Displacement:
- 344cc
- Engine Output:
- 10.5HP
- Starter Type:
- Electric
- Fuel Tank Capacity:
- 1.3 gal. US
- Cylinders:
- Single
- Engine Start:
- Ignition Key
- Engine Oil Capacity:
- 1.5 qt. US
- Lubrication:
- Fully pressurized
- Charging System:
- 3.75 amp regulated
- Fuel Gauge:
- No
- Choke:
- Choke-a-matic
- Air Filter:
- Single element
- Oil Filter:
- Yes
- Fuel Delivery:
- Carburetor
Battery
- Battery:
- 12V 150 cold crank amps
- Battery Type:
- AGM (Absorbent Glass Mat)
Drive System
- Transmission:
- Hydrostatic, foot
- Forward Speed:
- 4 MPH
- Reverse Speed:
- 2 MPH
- Rear Axle:
- 3/4" w/dual PM steel drive hubs
- Transmission Type:
- Hydro-Gear T2HP
- Engine to Transmission:
- Hydrostatic, Foot (Hydro-Gear T2HP)
Cutting Deck
- Deck Cutting Width:
- 30"
- Cutting Modes:
- Discharge/mulch/bagging
- Deck Wash:
- Included
- Deck Material:
- Steel, 14-gauge
- Deck Attach/Removal:
- Removeable
- Deck Engagement (PTO):
- Manual lever
- Deck Construction:
- Stamped
- Spindle Construction:
- Die-cast aluminum spindle housings w/ ball bearings
- Blade(s):
- 1
- Deck Lift:
- Lever
- Cutting Height Range:
- 1.5" - 4"
- Deck Positions:
- 5 position
Warranty
- Warranty:
- 3-year limited residential warranty
Chassis
- Frame:
- Robotically welded
- Front Axle:
- Steel/14-gauge
- Turning Radius:
- 18"
- Bumper:
- Steel tube
- Rear Tow Hitch:
- Included
- Corrosion Protection:
- Front bumper
Controls
- Brakes:
- Automotive-style disc
- Steering Control:
- Manual sector and pinion
Comfort
- Seat Type:
- 15" high-back seat
- Seat Suspension:
- Seat spring
- Seat Adjustment:
- Knob
- Floor Mats:
- Traction Pad
- Steering Comfort:
- Soft Touch steering wheel

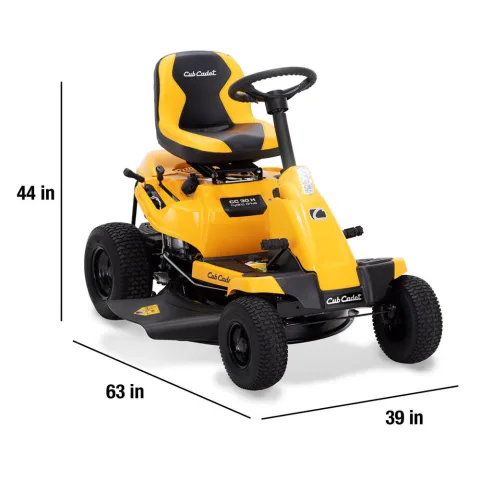

Dimensions
- Weight (approx.):
- 340 lbs.
Additional Specifications
- Mulch Kit:
- Included
- Headlight(s):
- 1 - LED
- Discharge Chute:
- Included
- Cup Holder:
- Included
- Reverse Safety Switch:
- Included
- Bagger:
- Optional
- Model Number:
- 13CC21JDA10
Maintenance Parts
- Air Filter:
- BS-591583 OR 591583
- Fuel Filter:
- BS-394358S OR 394358S
- Spark Plug:
- BS-792015 OR RC12YC
- Deck Belt:
- 954-05001 OR 490-501-C065
- Drive Belt:
- 954-05130 OR 490-501-M088
- Blade:
- 942-04385 OR 490-110-C135
- Ignition Key:
- 925-1745A
- Engine Oil:
- 490-000-C044
Key Features
- The Cub Cadet CC30 H is powered by a Briggs & Stratton 344 cc engine with choke-a-matic.
- 30-inch stamped, 14-gauge, single blade side discharge mowing deck with mulch kit included.
- Ideal for mowing up to 1 acre of mostly flat terrain and a few obstacles.
- LED headlight for extended life and enhanced visibility.
- 3-year/120-hour limited residential warranty.
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
