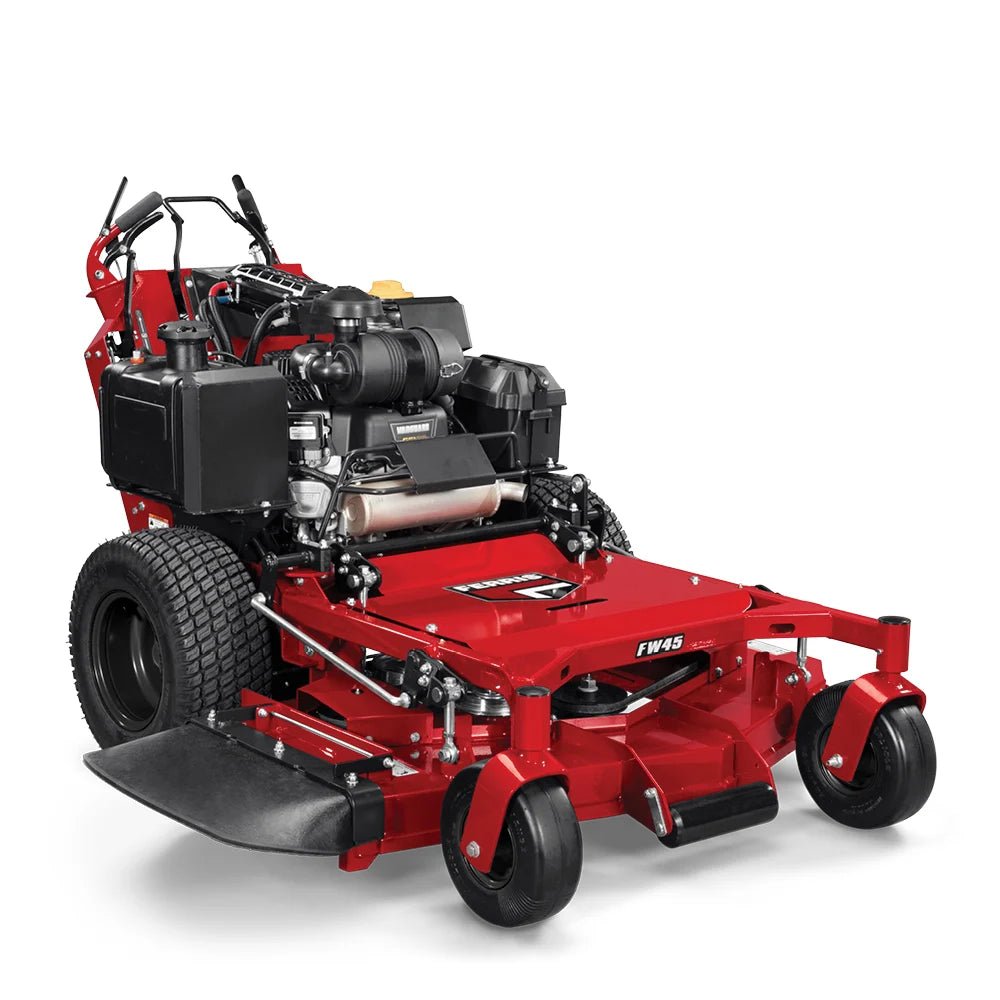

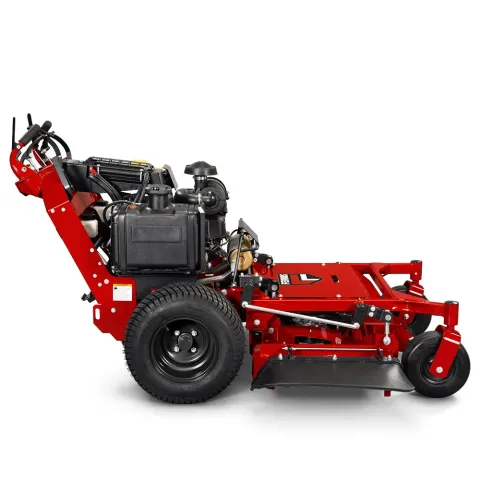

1 / 2 Ferris FW45 5901891
Product number: 5901891
Special Online Price!
In Stock
Product Brand: FerrisProduct Type: Walk Behind
Have Questions?
Our experts are here to answer your questions.
Store pickup and delivery available — choose at checkout.
Product Description
Fuel-Efficient Wide Area Commerical Mowers Built for Comfort & Control
The FW45 is engineered for performance, productivity, and comfort. The three available deck sizes allow for maneuverability while engine options provide the power a commercial walk mower needs. Pairing comfort features like ergonomically designed controls with easy maintenance and durability mean the FW45 can handle whatever is thrown at it.
Features
COOL OIL FOR EFFICIENT USEExternal oil coolers for the dual Hydro-Gear ZT-3400 transaxles reduce oil temperature by as much as 25%, plus a new quick fill system makes maintenance that much easier.
GAS TANK GUARDAdditional protection has been added to protect the gas tank from obstacles and debris.
ENHANCED FOOT PEDAL SUPPORTUpgraded with dual solid-steel return-to-neutral foot pedals for better user support.
NEW SPINDLE ACCESSWe listened closely to our commercial users when considering the enhancements on our redesigned mower deck. The new, improved deck provides a new spindle easy-access slot for faster greasing and accessibility.
ERGONOMIC PARKING BRAKEWe modified and added an angles parking brake that is pulled into the frame to prevent snagging or bending. This now provides instant access with minimal operator effort to each and engage.
ENHANCED MUFFLER GUARDEnhanced muffler guard has been added to protect the O2 sensor on the EFI Oil Guard models.
HYDRO-GEAR® ZT-3400™ TRANSAXLESDual commercial grade transaxles with remote oil coolers that reduce oil temperature by as much as 25% and feature 1.125" tapered axle, forged steel bull gear and steel cut pinion gear for enhanced performance in commercial applications.
Specifications
Illustrated Parts List
Wiring Diagram Schematic
Attachments
Specifications
General
- Product Number:
- 5901891
- Brand:
- Ferris
- Product Type:
- Walk Behind
Specifications
- Model Number:
- 5901891
- Engine Brand:
- Kawasaki® FS651
- Engine Power Rating (hp):
- 20.5
- Displacement (cc):
- 726
- PTO:
- Electric
- Cylinders:
- 2
- Starter:
- Electric
- Fuel Tank Capacity (gal):
- 5
- Cutting Width (in):
- 52
- Cutting Height (in):
- 1.5 - 4.5
- Spindles:
- Cast-iron Greaseable
- Deck Construction:
- Fabricated 10-gauge
- Suspension:
- N/A
- Transmission:
- Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers
- Drive Axles (in):
- 1.125
- Caster Tires (in):
- 9 x 3.5-4, Flat-free
- Drive Tires (in):
- 20 x 8-10
- Ground Speed-Fwd (mph):
- 0-7
- Ground Speed-Rev (mph):
- 0-3
- Overall Length (in):
- Standard: 78.75
- Overall Width (in) Deflector Down/Deflector Up:
- 67 / 57
- Dry Weight (lbs):
- 814
- Seat:
- N/A
- Control Type:
- CC™ Centralized Control
- Instrumentation:
- Dual-function hour meter
- Parking Brake/Safety Circuit:
- Hand-operated internal transaxle brake
- Safety Group/Controls:
- Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
- Warranty (Engine) †:
- 3-Year limited manufacturer's warranty
- Warranty (Balance of Machine) †:
- 2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
