Ferris 5902000 Rover XC™ FS1200 Ride-On Spreader
5902000$6,316.55 $7,949.00
In StockView Product
1 / 3 Ferris 5901753 Pathfinder XC FS2200 Ride-On Spreader/Sprayer
Product number: 5901753
$8,834.05 $11,049.00
Special Online Price!
In Stock
Product Brand: FerrisProduct Type: Spreader / Sprayers
Have Questions?
Our experts are here to answer your questions.
Store pickup and delivery available — choose at checkout.
Product Description

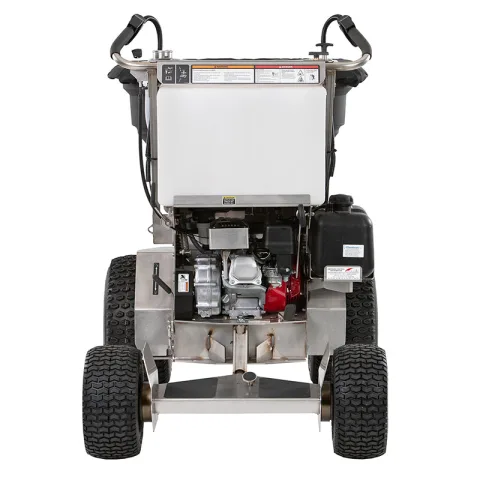

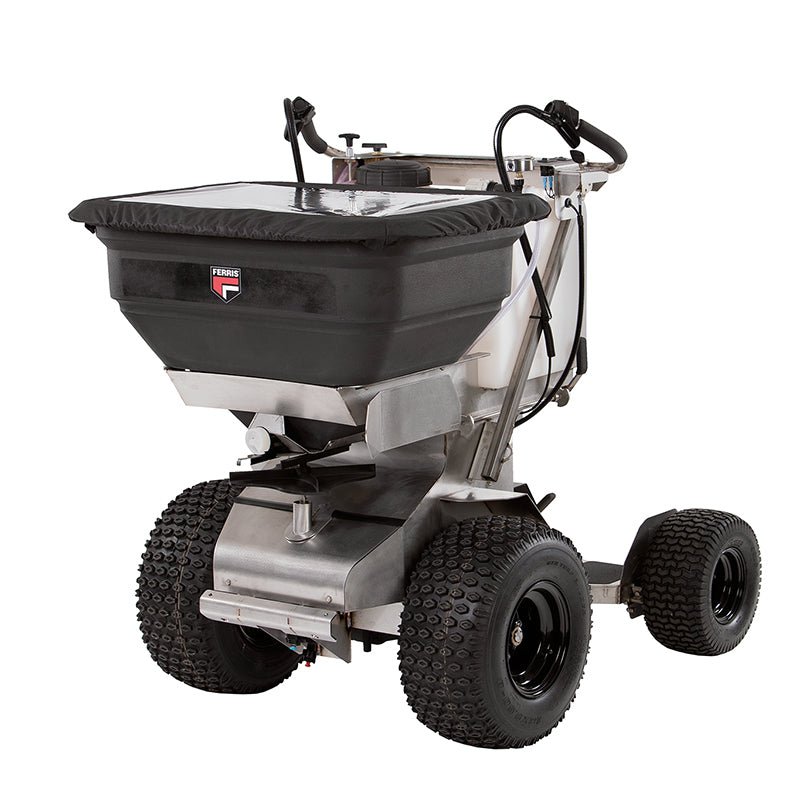

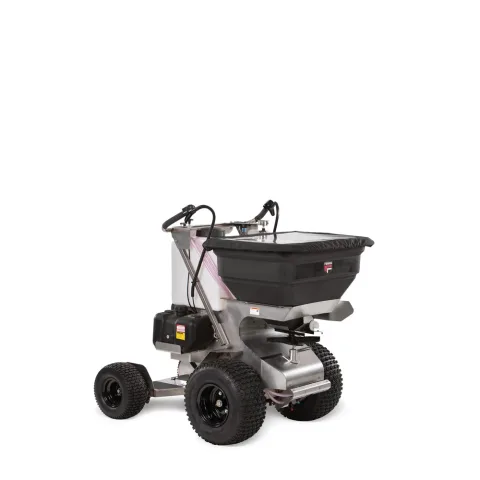

Pathfinder XC™ FS2200 Ride-On Spreader/Sprayer
DRY COVERAGE OVER ONE ACRE AND MAXIMUM LIQUID COVERAGE OF 1.4 ACRES
Upgrade the ride-on sprayer/spreader experience with the Pathfinder XC™ FS2200. It has the same durable components, compact 35.5" frame, and dry and liquid capabilities as the Pathfinder. Plus it offers best-in-class maneuverability, a 200-pound granular hopper, and 1.4 acres of liquid coverage making crews more efficient.
Features
200 lbs. Spyker HopperThe Pathfinder XC™ FS2200 hopper will handle up to 200 lbs. of granular material providing over one acre of maximum coverage.
16 Gallons of Liquid CapacityCovers a maximum of 1.4 acres between fill-ups.
Selectable Spray WidthThe Pathfinder XC™ FS2200 allows the operator to select between two spray widths. A 3’ spray width is perfect for trim applications and narrow spaces. A 10’ broadcast spray is used for wide open spaces.
100% Stainless Steel FrameStainless steel resists corrosion from the granular and liquid chemicals distributed by the unit.
Best-in-Class ManeuverabilityA low-friction sulky pivots on a ¾” tapered roller bearing for smooth movement. No mechanical steering assistance is required.
Compact SizeThe Pathfinder XC™ FS2200 fits easily through a 36” gate, providing access to residential areas and condominium common areas.
Specifications
Specifications
General
- Product Number:
- 5901753
- Brand:
- Ferris
- Product Type:
- Spreader / Sprayers
Specifications
- RPM:
- Full Speed: 3750 RPM (No Load) Idle: 1400 RPM
- Fuel Capacity - gal:
- 2.5 gal
- Fuel Type:
- Regular unleaded gasoline, 87 octane or higher
- Fuel Shut-Off Valve:
- Located on engine and below tank
- Transmission Model:
- Peerless 855 Series, coated for corrosion
- Speed (mph):
- Low Gear: 3.5 mph High Gear: 5.0 mph
- Front Tires:
- 18 x 9.5 - 8, RB antifreeze added for ballast and traction
- Rear Tires:
- 13 x 6.50 - 6
- Spreader Model:
- Spyker 220 Series
- Spreader Hopper Capacity (lbs.):
- 200
- Spray Pump:
- 2.0 gpm mechanically driven diaphragm pump
- Sprayer Tank Capacity - gal:
- 16.0
- Nozzles:
- Broadcast: Turbo FloodJet TF-VS5 Trim: TurboTeeJet TT11004VP
- Spray Rate:
- 1/4 gallon per 1,000 ft² at 20 psi
- Productivity (sq. ft. per fill):
- 64,000 (1/4 gallon per 1,000 ft² at 25 psi at 5 mph)
- Overall Length - in.:
- 58.0
- Overall Width - in.:
- 35.5
- Overall Height - in.:
- 49.0
- Dry Weight - lbs:
- 450
- Full Weight - lbs:
- 670
- Safety Interlock:
- This machine is equipped with a neutral safety start module. To start the engine, the transmission must be in the neutral (N) position.
- Accessories Warranty:
- Standard: 1 year Rental: 90 days
- Belts, Tires, Brake Pads, Hoses, Battery Warranty:
- Standard: 90 days Rental: 90 days
- Engine Brand:
- Honda® GX200-URH2
- Legacy Material Number:
- 5901753
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
