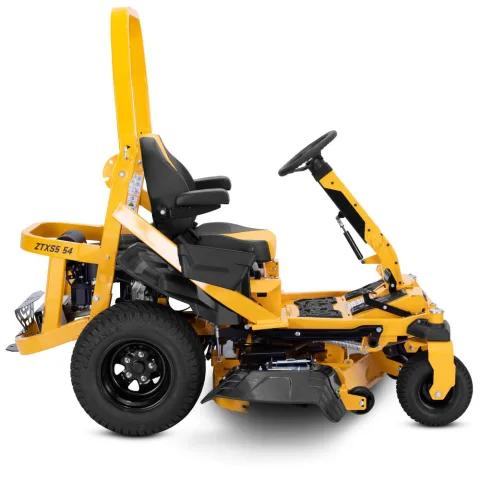

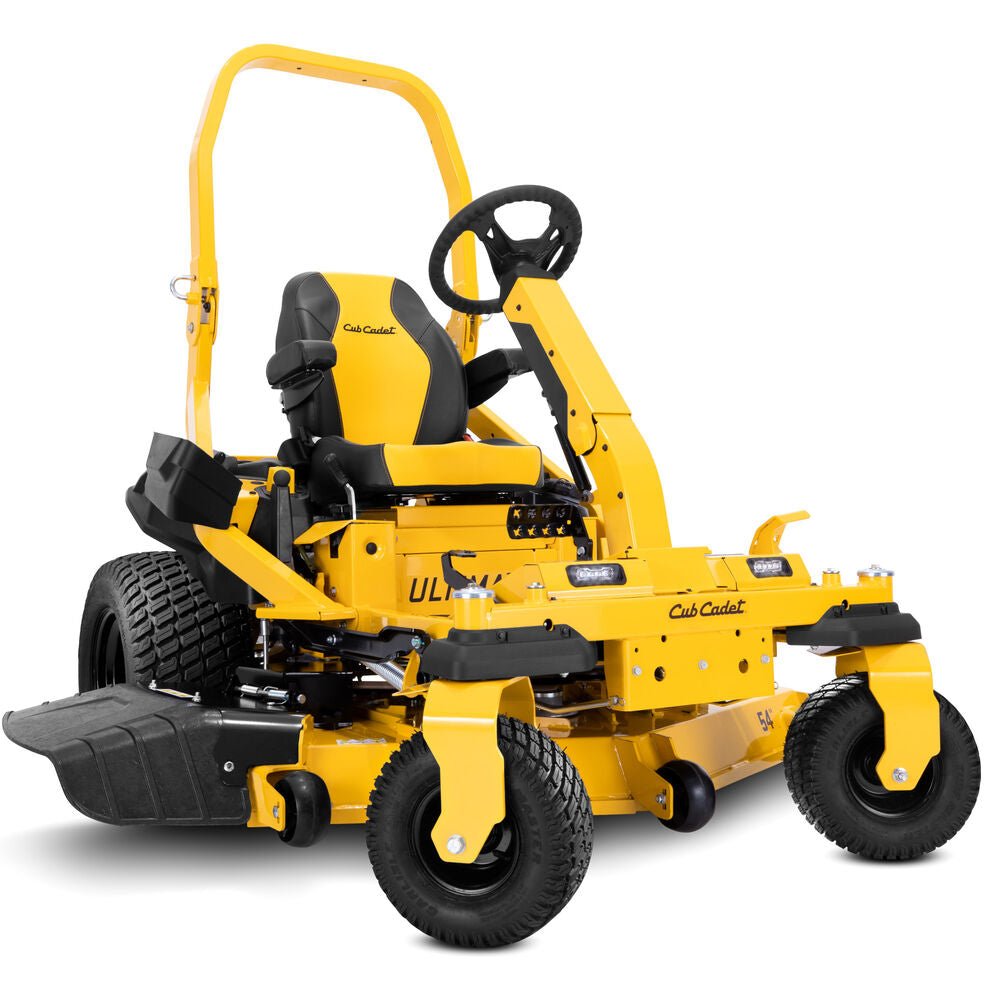

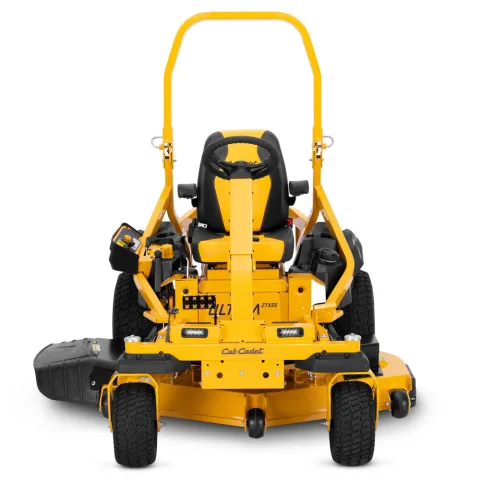

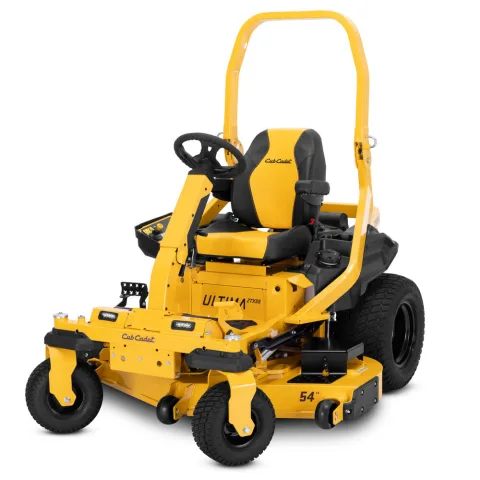

Cub Cadet ZTXS5 54 47RTCAB7010

Product Description

Specifications

General

Product Number:

47RTCAB7010

Brand:

Cub Cadet

Product Type:

Zero-Turn

Engine

Engine Brand:

Kohler®

Engine Model:

Confidant

Engine Model Number:

ZT740

Engine Displacement:

747cc

Engine Output:

25HP

Starter Type:

Electric

Fuel Tank Capacity:

5.5 gal. US (20.82 L)

Cylinders:

Twin

Engine Start:

Ignition Key

Engine Oil Capacity:

2.1 qt US ( 2 L)

Lubrication:

Fully pressurized

Charging System:

12 amp regulated

Fuel Gauge:

Yes

Governor:

Mechanical

Choke:

Choke-a-matic

Air Filter:

Dual element

Oil Filter:

Yes

Fuel Delivery:

Carburetor

Battery

Battery:

210 CCA

Battery Type:

AGM (Absorbent Glass Mat)

Battery Voltage:

12V

Drive System

Transmission:

Hydro-Gear ZT 3200

Forward Speed:

8.5 MPH / 13.7 km/h

Reverse Speed:

3.5 MPH / 5.6 km/h

Drive System:

Hydrostatic

Cutting Deck

Deck Cutting Width:

54 in

Deck Wash:

No

Deck Material:

10-gauge steel with 2-gauge reinforcement

Deck Engagement (PTO):

Electric

Deck Construction:

Fabricated

Blade(s):

Three

Deck Lift:

Foot pedal with Dial Adjust

Cutting Height Range:

1" - 4.75"

Anti-Scalping:

Three gauge wheels

Deck Positions:

17

Warranty

Warranty:

4-year 800 hours

Frame Warranty:

Lifetime Limited

Deck Shell Warranty:

Lifetime limited

Commercial Warranty:

4-year 800 hours

Chassis

Frame:

1.5" x 3" tubular steel

Turning Radius:

0°

ROPS:

Yes

Rear Tow Hitch:

Yes

Corrosion Protection:

Yes

Controls

Cruise Control:

No

Brakes:

Disc

Steering Control:

Steering Wheel

Comfort

Seat Type:

24" high back

Armrests:

Yes

Seat Adjustment:

Lever

Wheels

Rear Tires:

23"x 12"-12"

Front Tires:

13"x 6.5"-6"

Tire Tread:

Turf Master / Multi Trac

Additional Specifications

Hour Meter:

Yes

Mulch Kit:

Available separately

Headlight(s):

Dual-LED

Cup Holder:

Yes

Operator Presence System:

Yes

Parking Brake:

Foot Controlled

Model Number:

47RTCAB7010

Key Features

• Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°
• A 25 HP* Kohler Confident ZT740 V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 8.5 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.
• A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system, a multi-step process that electronically applies a corrosion resistance e-coat with meticulous care to help protect against wear and tear
