Product Description

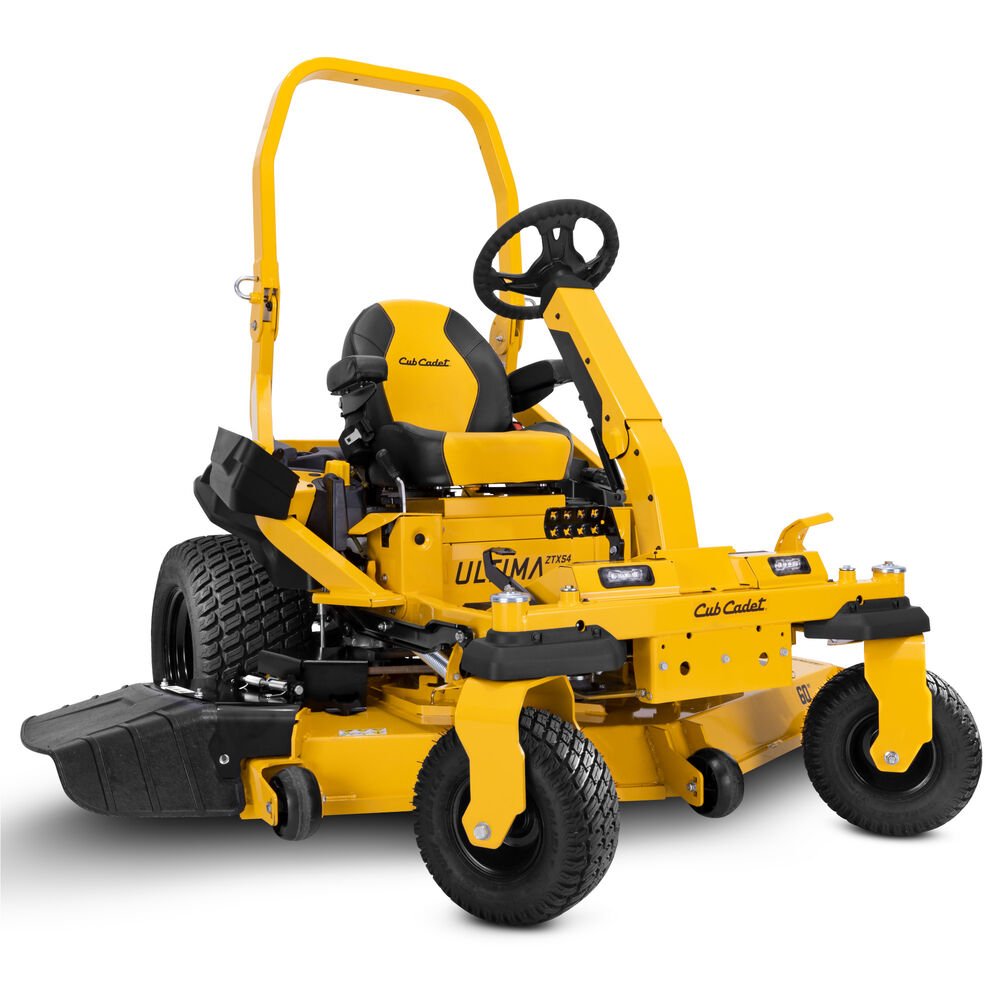

ZTXS4 60

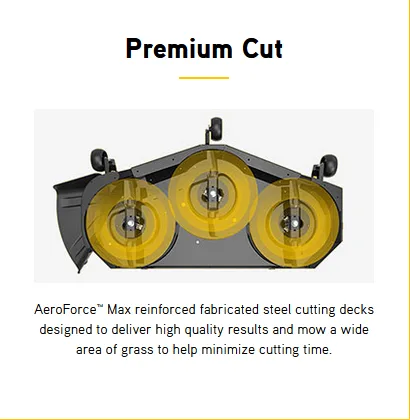

The Cub Cadet® Ultima Series ZTXS4 60 is a 60-inch zero-turn lawn mower with a 26 HP engine. It features an AeroForce™ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. The Synchro-Steer™ technology offers 4-wheel control for better stability when mowing on hills and slopes up to 20 degrees.
AIR FILTER: 32 883 13-S1 OR 490-200-K064
OIL FILTER: 52 050 02-S
FUEL FILTER: 24 050 13-S1
SPARK PLUG: 25 132 14-S
PTO BELT: 754P06094
DECK BELT:
DRIVE BELT: 954-04317A
TRANS FILTER: HG-52114P
BLADES: 742P05516
XTREME BLADES:
IGNITION KEY: 925-1745A
ENGINE OIL: 25 367 65-S
Specifications
General
- Product Number:
- 47TSCAB8A10
- Brand:
- Cub Cadet
- Product Type:
- Zero-Turn
Engine
- Engine Brand:
- Kohler®
- Engine Model:
- Pro 7000 series
- Engine Model Number:
- ZT745
- Engine Displacement:
- 747cc
- Engine Output:
- 26HP
- Starter Type:
- Electric
- Fuel Tank Capacity:
- 5.5 gal. US
- Cylinders:
- Twin
- Engine Start:
- Ignition Key
- Engine Oil Capacity:
- 2 qt US
- Lubrication:
- Fully pressurized
- Charging System:
- 12 amp regulated
- Fuel Gauge:
- Yes
- Governor:
- Mechanical
- Choke:
- Choke-a-matic
- Air Filter:
- Dual element
- Oil Filter:
- Yes
- Fuel Delivery:
- Carburetor
Battery
- Battery:
- 210 CCA
- Battery Type:
- AGM (Absorbent Glass Mat)
- Battery Voltage:
- 12V
Drive System
- Transmission:
- Hydro-Gear ZT 3100
- Forward Speed:
- 8.5 MPH
- Reverse Speed:
- 3.5 MPH
- Drive System:
- Hydrostatic
Cutting Deck
- Deck Cutting Width:
- 60 in
- Deck Wash:
- No
- Deck Material:
- 10-gauge steel with 2-gauge reinforcement
- Deck Engagement (PTO):
- Electric
- Deck Construction:
- Fabricated
- Blade(s):
- Three
- Deck Lift:
- Foot pedal with Dial Adjust
- Cutting Height Range:
- 1" - 4.75"
- Anti-Scalping:
- Three gauge wheels
- Deck Positions:
- 17
Warranty
- Warranty:
- 4-year 800 hours
- Frame Warranty:
- Lifetime Limited
- Deck Shell Warranty:
- Lifetime limited
- Commercial Warranty:
- 4-year 800 hours
Chassis
- Frame:
- 1.5" x 3" tubular steel
- Turning Radius:
- 0°
- ROPS:
- Yes
- Rear Tow Hitch:
- Yes
- Corrosion Protection:
- Yes
Controls
- Cruise Control:
- No
- Brakes:
- Disc
- Steering Control:
- Steering Wheel
Comfort
- Seat Type:
- 20" high back
- Armrests:
- Yes
- Seat Adjustment:
- Lever
Wheels
- Rear Tires:
- 22"x 12"-12"
- Front Tires:
- 13"x 6.5"-6"
- Tire Tread:
- Turf Master / Multi Trac
Additional Specifications
- Hour Meter:
- Yes
- Mulch Kit:
- Available separately
- Headlight(s):
- Dual-LED
- Cup Holder:
- Yes
- Operator Presence System:
- Yes
- Parking Brake:
- Foot Controlled
- Model Number:
- 47RSCAB8A10
Key Features
- Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°
- A 24 HP* Kohler Pro 7000 Series KT735 V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
- Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 8.5 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.
- A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system, a multi-step process that electronically applies a corrosion resistance e-coat with meticulous care to help protect against wear and tear
