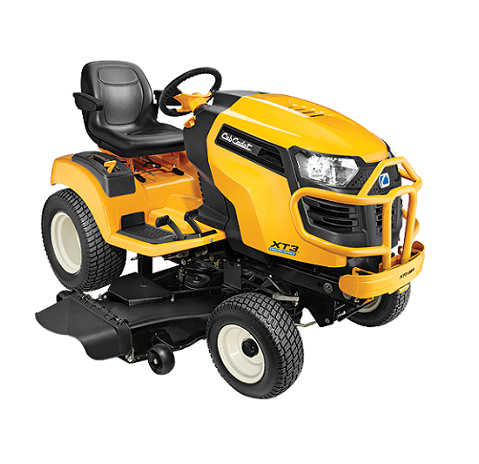

Cub Cadet XT3-GSX
Product number: 14RD3LE-010
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Specifications
General
- Product Number:
- 14RD3LE-010
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Engine
- Engine:
- Kohler CH740-3328
- Engine Displacement:
- 725cc
- Engine Output:
- 25 HP
- Fuel Tank Capacity:
- 3.3 gal.
- Engine Start:
- Key
- Engine Oil Capacity:
- 2.0 qts.
- Lubrication:
- Fully pressurized
- Battery:
- 12V 300 cold crank amps
- Charging System:
- 25 amp regulated
- Fuel Gauge:
- Fuel sight window
- Choke:
- Separate Choke
- Air Filter:
- Single element
- Oil Filter:
- Yes
Drive System
- Transmission:
- Hydrostatic, foot
- Forward Speed:
- 6.5 MPH
- Reverse Speed:
- 3.5 MPH
- Rear Axle:
- 30mm w/ dual PM steel drive hubs
- Transmission Type:
- BDU-10+T34
- Engine to Transmission:
- Heavy-duty shaft drive
- Rear Differential Lock:
- Included
Cutting Deck
- Deck Cutting Width:
- SOLD SEPARATELY: 42", 50", 54" Stamped and 48", 54", 60" Fabricated
- Deck Attach/Removal:
- QuickAttach™ (no tools required)
- Deck Engagement (PTO):
- Pull knob (electric)
- Spindle Construction:
- Cast aluminum spindle housings and precision tapered roller bearings
- Deck:
- Lift Electric
- Cutting Height:
- 1.5" - 4"
- Deck Positions:
- 6 positions
Chassis
- Frame:
- Robotically welded
- Front Axle(s):
- Cast iron
- Turning Radius:
- 18"
- Front Tires:
- 16"x6.5"-8"
- Rear Tires:
- 23"x10.5"-12"
- Tire Tread:
- Turf Master
- Bumper:
- Front brush guard
- Rear Tow Hitch:
- Included
Controls
- Cruise Control:
- Included
- Direction:
- Electronic Power Steering (EPS)
- Brakes:
- Automotive-style disc
- Steering Wheel:
- Control Comfort grip steering wheel
- Headlight(s):
- 2 - LED
- Display:
- Hour meter
Comfort
- Seat Type:
- 19" high-back seat
- Arm Rests:
- Included
- Seat Suspension:
- Seat spring
- Seat Adjustment:
- Lever
- Floor Mats:
- Rubber
- Steering:
- Comfort Soft Touch steering wheel
Dimensions
- Weight (approx.):
- 800 lbs.
Additional Specifications
- Mulch Kit:
- Optional
- Cup Holder:
- Included
- Operator Presence System:
- Included
- Bagger:
- Optional
- Model Number:
- 14RD3LE-010
Warranty
- Warranty:
- 4-year unlimited hours (includes powertrain)
- Front Axle Warranty:
- 5-year chassis & front axle unlimited hours/limited lifetime fabricated deck shell
Maintenance Parts
- Air Filter:
- 47 883 03-S1
- Oil Filter:
- 52 050 02-S
- Fuel Filter:
- 24 050 13-S1
- Spark Plug:
- 12 132 02-S
- Ignition Key:
- 925-1745A
Key Features
- The Cub Cadet XT3 GSX is powered by a 25 hp KOHLER Command.
- Rear differential locking provides increased traction compared to a standard or open differential, easily engage with a lever when the rear tire is slipping on uneven terrain or hills.
- A heavy-duty steel brush guard provides greater protection for tougher tasks.
- Soft grip steering wheel provides more control that’s easy on your hands.
- 4-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours.
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
