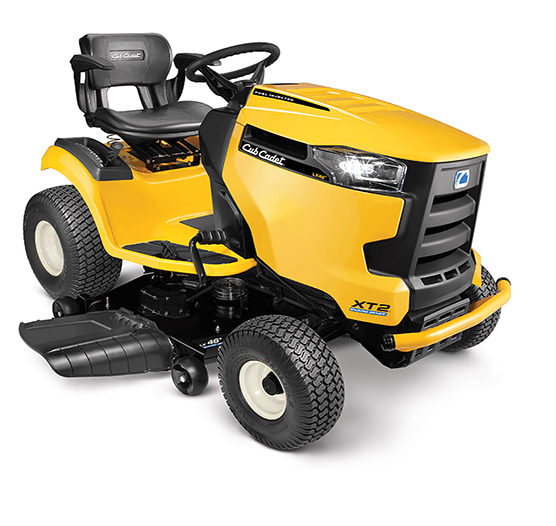

Cub Cadet XT2-LX46 EFI 13AZA1CN010

Cub Cadet XT2-LX46 EFI 13AZA1CN010

Product number: 13AZA1CN010

Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.

Product Brand: Cub CadetProduct Type: Non-Current Models

Have Questions?

Our experts are here to answer your questions.

Contact Us+1 404-301-0719

Specifications

General

Product Number:
13AZA1CN010
Brand:
Cub Cadet
Product Type:
Non-Current Models

Engine

Engine Brand:
Cub Cadet
Engine Model:
w/ EFI
Engine Displacement:
679cc
Fuel Tank Capacity:
2.5 gal.
Cylinders/Material:
Twin
Engine Start:
Push button start
Engine Oil Capacity:
2 qt.
Lubrication:
Fully pressurized
Battery:
12V 300 cold crank amps
Charging System:
15 amp regulated
Fuel Gauge:
Fuel sight window
Governor:
Manual
Choke:
Electronic
Air Filter:
Single element
Oil Filter:
Yes

Drive System

Transmission:
Hydrostatic, foot
Forward Speed:
5.5 MPH
Reverse Speed:
3.1 MPH
Rear Axle:
3/4" w/dual PM steel drive hubs
Transmission Housing:
Cast aluminum
Transmission Type:
Tuff Torq K46
Engine to Transmission:
Heavy-duty belt

Cutting Deck

Deck Cutting Width:
46"
Cutting Modes:
Discharge/mulch/bagging
Deck Wash:
Included
Deck Material:
Steel, 11-gauge
Deck Attach/Removal:
QuickAttach™ (no tools required)
Deck Engagement (PTO):
Pull knob (electric)
Deck Construction:
Fabricated
Spindle Construction:
3/4" with steel cap and triple lip sealed
Blade(s):
2
Deck Lift:
Lever
Cutting Height Range:
1" - 4"
Anti-Scalping:
4 ball
Deck Positions:
12 positions

Chassis

Frame:
Robotically welded
Front Axle(s):
Cast iron
Turning Radius:
16"
Front Tires:
15"x6"-6"
Rear Tires:
20"x8"-8"
Tire Tread:
Multi-Trac
Bumper:
Front bumper
Rear Tow Hitch:
Included
Corrosion Protection:
E-coating

Controls

Cruise Control:
Included
Brakes:
Automotive-style disc
Steering Wheel Control:
Manual sector and pinion
Headlight(s):
2 - LED
Display:
Hour meter

Comfort

Seat Type:
15" high-back seat
Arm Rests:
Included
Seat Suspension:
Seat spring
Seat Adjustment:
Lever
Floor Mats:
Grit
Steering Comfort:
Soft Touch steering wheel

Dimensions

Dimensions L/W/H:
68"/50"/42.5"
Weight (approx.):
580 lbs.

Additional Specifications

Mulch Kit:
Optional
Discharge Chute:
Included
Cup Holder:
Included
Operator Presence System:
Included
Bagger:
Optional
Model Number:
13AZA1CN010

Warranty

Warranty:
3-year unlimited hours (includes powertrain)
Front Axle Warranty:
5-year chassis & front axle unlimited hours/limited lifetime fabricated deck shell

Maintenance Parts

Air Filter:
937-05145
Oil Filter:
951-12690
Fuel Filter:
951-3013
Spark Plug:
951-10292A
Deck Belt:
954-05087A
Drive Belt:
954-05027B
Blades:
942-04244A
Xtreme Blades:
942-04290-X
Ignition Key:
925-1745A

Product Manuals

No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
