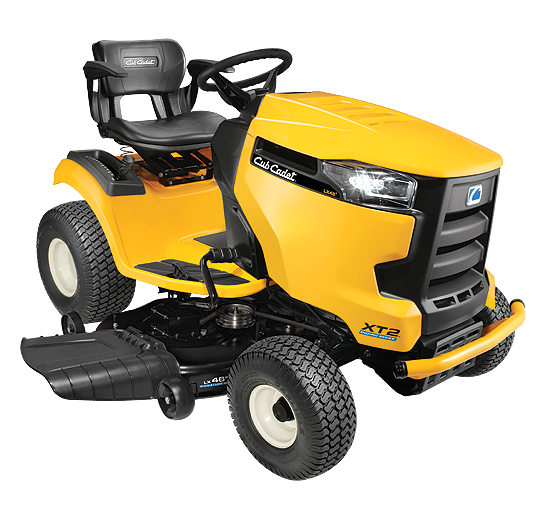

Cub Cadet XT2-LX 46 13AJA1CT010

Cub Cadet XT2-LX 46 13AJA1CT010

Product number: 13AJA1CT010

Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.

Product Brand: Cub CadetProduct Type: Non-Current Models

Have Questions?

Our experts are here to answer your questions.

Contact Us+1 404-301-0719

Product Description

FEATURES:

Specifications

General

Product Number:
13AJA1CT010
Brand:
Cub Cadet
Product Type:
Non-Current Models

Engine

Engine:
Cub Cadet 8Q78HUA
Engine Displacement:
679cc
Fuel Tank Capacity:
3.0 gal.
Cylinders/Material:
Twin
Engine Start:
Key
Engine Oil Capacity:
2.0 qts.
Lubrication:
Fully pressurized
Battery:
12V 300 cold crank amps
Charging System:
15 Amp Regulated
Fuel Gauge:
Fuel sight window
Governor:
Manual
Choke:
Separate Choke and Throttle
Air Filter:
Dual element
Oil Filter:
Yes

Specifications

Transmission:
Hydrostatic, foot
Forward Speed:
5.5 MPH
Reverse Speed:
3.1 MPH
Rear Axle:
3/4" w/dual PM steel drive hubs
Transmission Housing:
Cast aluminum
Transmission Type:
Tuff Torq®

Cutting Deck

Deck Cutting Width:
46"
Cutting Modes:
Discharge/mulch/bagging
Deck Wash:
Included
Deck Material:
Steel, 12-gauge
Deck Attach/Removal:
QuickAttach™ (no tools required)
Deck Engagement (PTO):
Pull knob (electric)
Deck Construction:
Stamped
Spindle Construction:
3/4" with steel cap and triple lip sealed
Blade(s):
2
Deck Lift:
Lever
Cutting Height Range:
1" - 4"
Anti-Scalping:
2 ball, 2 narrow
Deck Positions:
12 positions

Chassis

Frame:
Robotically welded
Front Axle(s):
Cast iron
Turning Radius:
16"
Front Tires:
15"x6"-6"
Rear Tires:
20"x8"-8"
Tire Tread:
Multi-Trac
Rear Tow Hitch:
Included
Corrosion Protection:
E-coating

Controls

Cruise Control:
Included
Brakes:
Automotive-style disc
Steering Wheel Control:
Manual sector and pinion
Headlight(s):
2 - LED
Display:
Hour meter

Comfort

Seat Type:
15" high-back seat
Arm Rests:
Included
Seat Suspension:
Seat spring
Seat Adjustment:
Lever
Floor Mats:
Traction Pad
Steering Comfort:
Soft Touch steering wheel

Additional Specifications

Mulch Kit:
Optional
Discharge Chute:
Included
Cup Holder:
Included
Operator Presence System:
Included
Bagger:
Optional

Warranty

Warranty:
3-year/unlimited hour warranty
Frame Warranty:
5-year/unlimited hour warranty
Front Axle Warranty:
5-year/unlimited hour warranty

Maintenance Parts

Air Filter:
937-05145
Oil Filter:
951-12690
Fuel Filter:
951-3013
Spark Plug:
951-10292A
Deck Belt:
954-05087A
Drive Belt:
954-05027B
Blades:
942-04244A
Xtreme Blades:
942-04290-X
Ignition Key:
925-1745A

Product Manuals

No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
