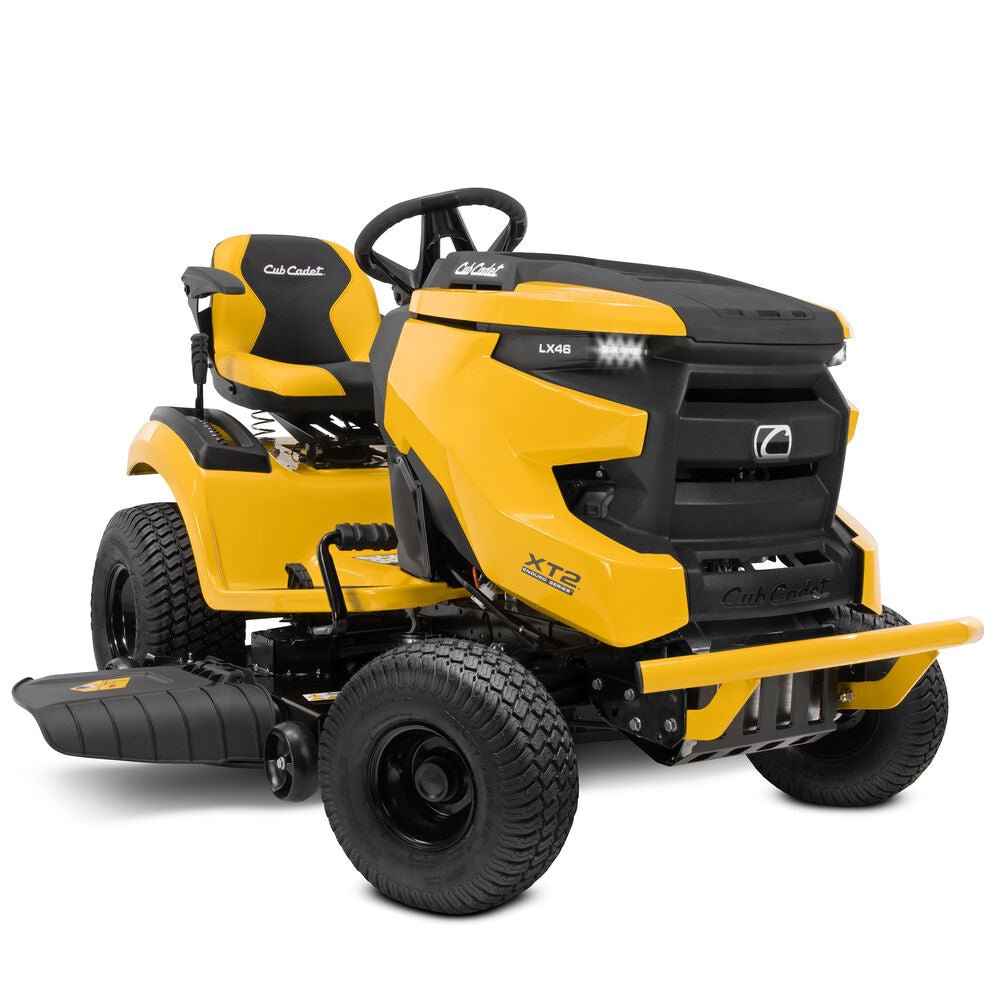

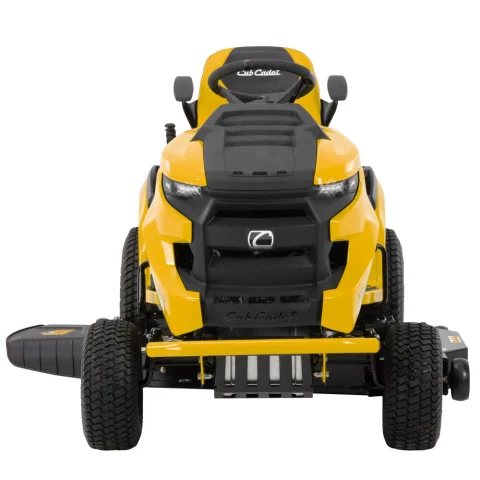

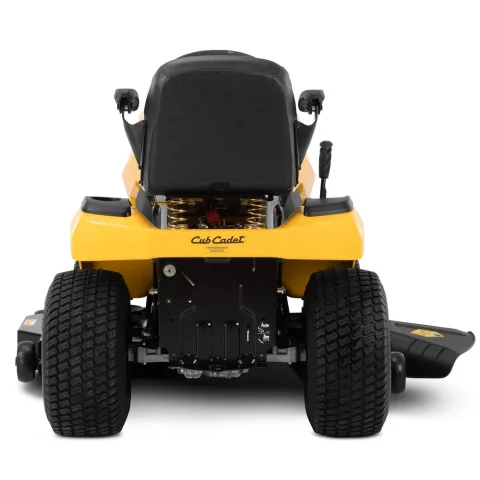

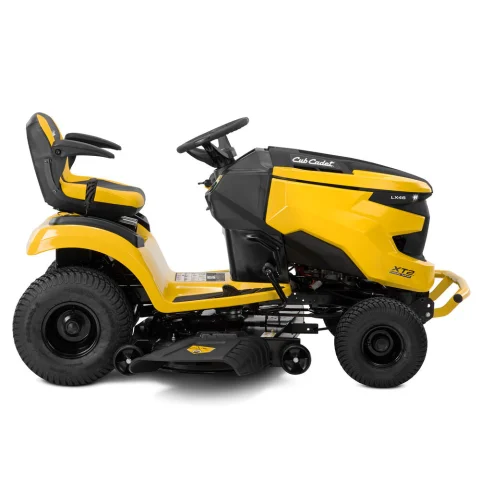

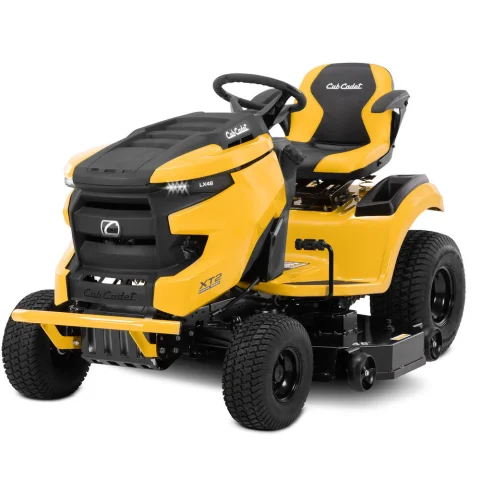

1 / 5 Cub Cadet XT2-LX 46 13AFA1TNA10
Product number: 13AFA1TNA10
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Specifications
General
- Product Number:
- 13AFA1TNA10
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Engine
- Engine:
- Kawasaki FR651V-GS08
- Engine Displacement:
- 726cc
- Fuel Tank Capacity:
- 3.0 gal.
- Cylinders/Material:
- Twin Cast Iron
- Engine Start:
- Key
- Engine Oil Capacity:
- 1.8 qts.
- Lubrication:
- Fully pressurized
- Battery:
- 12V 300 cold crank amps
- Battery Type:
- AGM (absorbent Glass Mat)
- Charging System:
- 15 Amp Regulated
- Choke:
- Separate Choke and Throttle
- Oil Filter:
- Yes
Drive System
- Transmission:
- Hydrostatic, foot
- Forward Speed:
- 5.5 MPH
- Reverse Speed:
- 3.1 MPH
- Rear Axle:
- 3/4" w/dual PM steel drive hubs
- Transmission Housing:
- Cast aluminum
- Transmission Type:
- Tuff Torq K46
Cutting Deck
- Deck Cutting Width:
- 46"
- Cutting Modes:
- Discharge/mulch/bagging
- Deck Wash:
- Included
- Deck Attach/Removal:
- QuickAttach™ (no tools required)
- Deck Engagement (PTO):
- Electric
- Blade(s):
- 2
- Deck Lift:
- Lever/spring assisted
- Cutting Height Range:
- 1" - 4"
- Anti-Scalping:
- 2 ball/2 Narrow
- Deck Positions:
- 12 positions
Chassis
- Frame:
- Robotically welded
- Front Axle(s):
- Heavy duty Cast iron
- Turning Radius:
- 16"
- Front Tires:
- 15"x6"-6"
- Rear Tires:
- 20"x8"-8"
- Tire Tread:
- Multi-Trac
- Rear Tow Hitch:
- Included
- Corrosion Protection:
- E-coating
Controls
- Cruise Control:
- Soft touch engagement
- Brakes:
- Automotive-style disc
- Direction:
- NEW optimized steering system, manual sector and pinion
- Headlight(s):
- 2 - LED High Illumination
Comfort
- Seat Type:
- Cub Comfort™ high-back seat
- Arm Rests:
- Comfort
- Seat Suspension:
- Seat spring
- Seat Adjustment:
- Lever
- Floor Mats:
- Traction Pad
- Seat adj:
- 10 degree incline and slide
Additional Specifications
- Mulch Kit:
- Optional
- Discharge Chute:
- Included
- Cup Holder:
- Included
- Operator Presence System:
- Included
- Bagger:
- Optional
Warranty
- Warranty:
- 3-year/unlimited hour warranty
- Frame Warranty:
- 5-year/unlimited hour warranty
- Front Axle Warranty:
- 5-year/unlimited hour warranty
Maintenance Parts
- Air Filter:
- KM-11013-0752
- Oil Filter:
- KM-49065-0721
- Fuel Filter:
- KM-49019-0031
- Spark Plug:
- KM-BPR4ES
- Deck Belt:
- 954-05087A
- Drive Belt:
- 954-05027B
- Blades Order 2:
- 742P05510
- Xtreme Blades:
- 742P05510-X
- Ignition Key:
- 925-1745A
Key Features
- 21.5 HP Kawasaki® engine delivers reliable power to tackle your yard.
- 46-in. heavy-duty fabricated AeroForce™ deck cutting system that has been tested and proven to deliver a best-in-class cut, meaning fewer clumps and stragglers, finer clippings and increased evenness.
- AGM battery delivers reliable starting with slower discharge so you worry less about your battery going dead in the offseason.
- Tuff Torq Hydrostatic transmission, just push the pedal and go.
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
