Cub Cadet XT2-LX 42 13AGA1TEA10 1 / 5

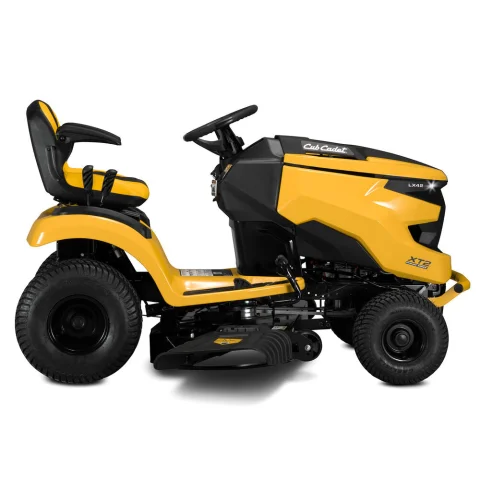

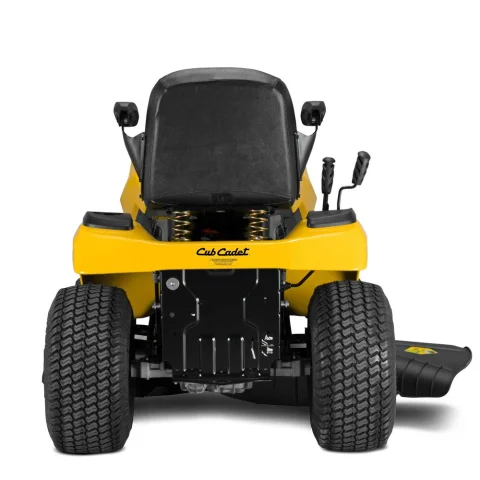

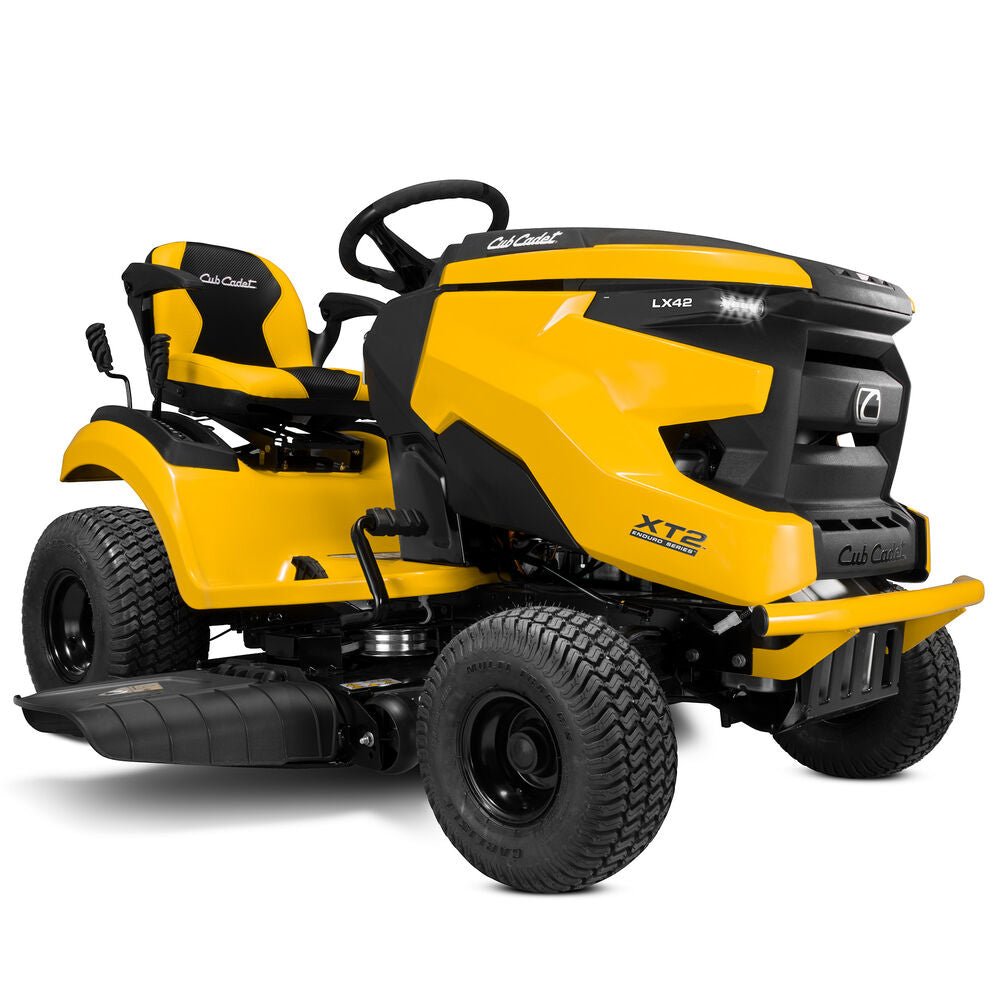

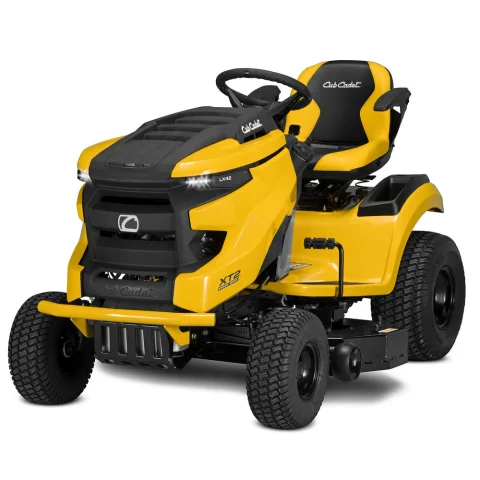

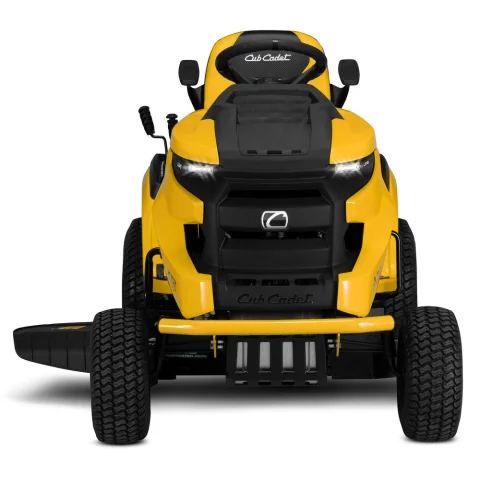

Cub Cadet XT2-LX 42 13AGA1TEA10

Product number: 13AGA1TEA10

Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.

Product Brand: Cub CadetProduct Type: Non-Current Models

Have Questions?

Our experts are here to answer your questions.

Contact Us+1 404-301-0719

Specifications

General

Product Number:
13AGA1TEA10
Brand:
Cub Cadet
Product Type:
Non-Current Models

Engine

Engine:
Kawasaki FR600V-FS06 18HP
Engine Displacement:
603cc
Fuel Tank Capacity:
3.0 gal.
Cylinders/Material:
Twin Cast Iron
Engine Start:
Key
Engine Oil Capacity:
1.8 qts.
Lubrication:
Fully pressurized
Battery:
12V 300 cold crank amps
Charging System:
15 Amp Regulated
Fuel Gauge:
Fuel sight window
Governor:
Manual
Choke:
Separate Choke and Throttle
Air Filter:
Dual element
Oil Filter:
Yes

Drive System

Transmission:
Hydrostatic, foot
Forward Speed:
5.5 MPH
Reverse Speed:
3.1 MPH
Rear Axle:
3/4" w/dual PM steel drive hubs
Transmission Housing:
Cast aluminum
Transmission Type:
Tuff Torq K46

Cutting Deck

Deck Cutting Width:
42"
Cutting Modes:
Discharge/mulch/bagging
Deck Wash:
Included
Deck Attach/Removal:
QuickAttach™ (no tools required)
Deck Engagement (PTO):
Manual lever
Blade(s):
2
Deck Lift:
Lever/spring assisted
Cutting Height Range:
1" - 4"
Anti-Scalping:
2 ball
Deck Positions:
12 positions

Chassis

Frame:
Robotically welded
Front Axle(s):
Heavy duty Cast iron
Turning Radius:
16"
Front Tires:
15"x6"-6"
Rear Tires:
20"x8"-8"
Tire Tread:
Multi-Trac
Rear Tow Hitch:
Included
Corrosion Protection:
E-coating

Controls

Cruise Control:
Soft touch engagement
Brakes:
Automotive-style disc
Direction:
NEW optimized steering system, manual sector and pinion
Headlight(s):
2 - LED High Illumination

Comfort

Seat Type:
Cub Comfort™ high-back seat
Arm Rests:
Comfort
Seat Suspension:
Seat spring
Seat Adjustment:
Lever
Floor Mats:
Traction Pad
Seat adj:
10 degree incline and slide

Additional Specifications

Mulch Kit:
Optional
Discharge Chute:
Included
Cup Holder:
Included
Operator Presence System:
Included
Bagger:
Optional

Warranty

Warranty:
3-year/unlimited hour warranty
Frame Warranty:
5-year/unlimited hour warranty
Front Axle Warranty:
5-year/unlimited hour warranty

Maintenance Parts

Air Filter:
KM-11013-0727
Oil Filter:
KM-49065-0721
Fuel Filter:
KM-49019-0031
Spark Plug:
KM-BPR4ES
Deck Belt:
954-05021
Drive Belt:
954-05027B
Blades Order 2:
742P05177
Xtreme Blades:
742P05177A-X
Ignition Key:
925-1745A

Key Features

  • A strong 18 HP Kawasaki® engine delivers reliable power to tackle your yard.
  • 42-in. heavy-duty fabricated AeroForce™ deck cutting system delivers a best-in-class cut with fewer clumps, finer clippings and increased evenness
  • AGM battery delivers reliable starting with slower discharge so you worry less about your battery going dead in the offseason.
  • Tuff Torq Hydrostatic transmission, no shifting, just push the pedal and go.
