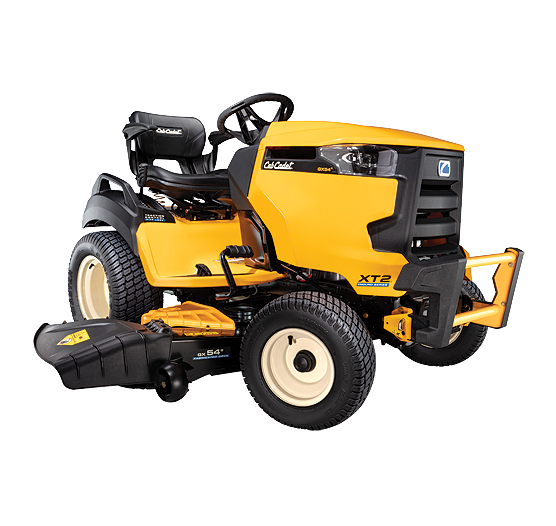

Cub Cadet XT2 GX54 D 14D7A6CA010
Product number: 14D7A6CA010
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Product Description
TRACTOR VIDEO
Specifications
General
- Product Number:
- 14D7A6CA010
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Engine
- Engine Brand:
- Kohler®
- Engine Model:
- Professional-grade 7000 Series V-Twin OHV with Smart-Choke™
- Engine Displacement:
- 747cc
- Engine Output:
- 26 HP
- Fuel Tank Capacity:
- 3 gal. easy fill, rustproof
- Cylinders/Material:
- Twin/Cast-iron sleeve
- Engine Start:
- Key
- Engine Oil Capacity:
- 2.0 qt.
- Lubrication:
- Fully pressurized automotive-style oil pump w/ spin-on oil filter
- Battery:
- 12V 300 cold crank amps
- Charging System:
- Flywheel Alternator - 12 amp regulated
- Fuel Gauge:
- Fuel sight window
- Governor:
- Manual
- Choke:
- Choke-a-matic
- Air Filter:
- Single element
- Oil Filter:
- Yes
Drive System
- Transmission:
- Hydrostatic, foot
- Forward Speed:
- 5.5 mph
- Reverse Speed:
- 3 mph
- Rear Axle:
- 1" w/ dual PM steel drive hubs
- Transmission Housing:
- Cast aluminum
- Transmission Type:
- Tuff Torq K62
- Engine to Transmission:
- Heavy-duty belt
- Rear Differential Lock:
- Pedal Engagement
Cutting Deck
- Deck Cutting Width:
- 54"
- Cutting Modes:
- Discharge/mulch/bagging
- Deck Wash:
- Patented SmartJet™ high-pressure deck washing system
- Deck Material:
- 11-gauge fabricated steel
- Deck Attach/Removal:
- QuickAttach™ (no tools required)
- Deck Engagement (PTO):
- Electronic fingertip engagement
- Deck Construction:
- Fabricated
- Spindle Construction:
- 3/4" with steel cap and Triple Lip Sealed
- Blade(s):
- Fast Attach Triple Blade
- Deck Lift:
- Lever
- Cutting Height Range:
- 1" - 4"
- Anti-Scalping:
- 2 Ball/2 Ball/Nose Roller
- Deck Positions:
- 12-position
Chassis
- Frame:
- Fully robotically-welded frame with new e-coating corrosion defense system
- Front Axle(s):
- Cast iron
- Turning Radius:
- 16"
- Front Tires:
- 16" x 6.5" ball bearing
- Rear Tires:
- 22" x 9.5"
- Tire Tread:
- Turf Master
- Bumper:
- Brush Guard Bumper
- Rear Tow Hitch:
- Included
- Corrosion Protection:
- E-coating
Controls
- Cruise Control:
- Soft touch engagement
- Brakes:
- Automotive-style disc
- Steering Wheel Control:
- Manual sector and pinion
- Headlight(s):
- 2 - LED
- Display:
- Hour meter
Comfort
- Seat Type:
- 15" high-back seat
- Arm Rests:
- Included
- Seat Suspension:
- Seat spring
- Seat Adjustment:
- Lever
- Floor Mats:
- Traction Pad
- Steering Comfort:
- Soft Touch steering wheel
Dimensions
- Dimensions L/W/H:
- 72.5"/63"/44.5"
- Weight (approx.):
- 700 lbs.
Additional Specifications
- Mulch Kit:
- Optional
- Discharge Chute:
- Included
- Cup Holder:
- Included
- Operator Presence System:
- Included
- Bagger:
- Optional
- Model Number:
- 14D7A6CA010
Warranty
- Warranty:
- 3-year/unlimited hour warranty
- Frame Warranty:
- 5-year/unlimited hour warranty
- Front Axle Warranty:
- 5-year/unlimited hour warranty
- Deck Shell Warranty:
- Limited lifetime warranty
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
