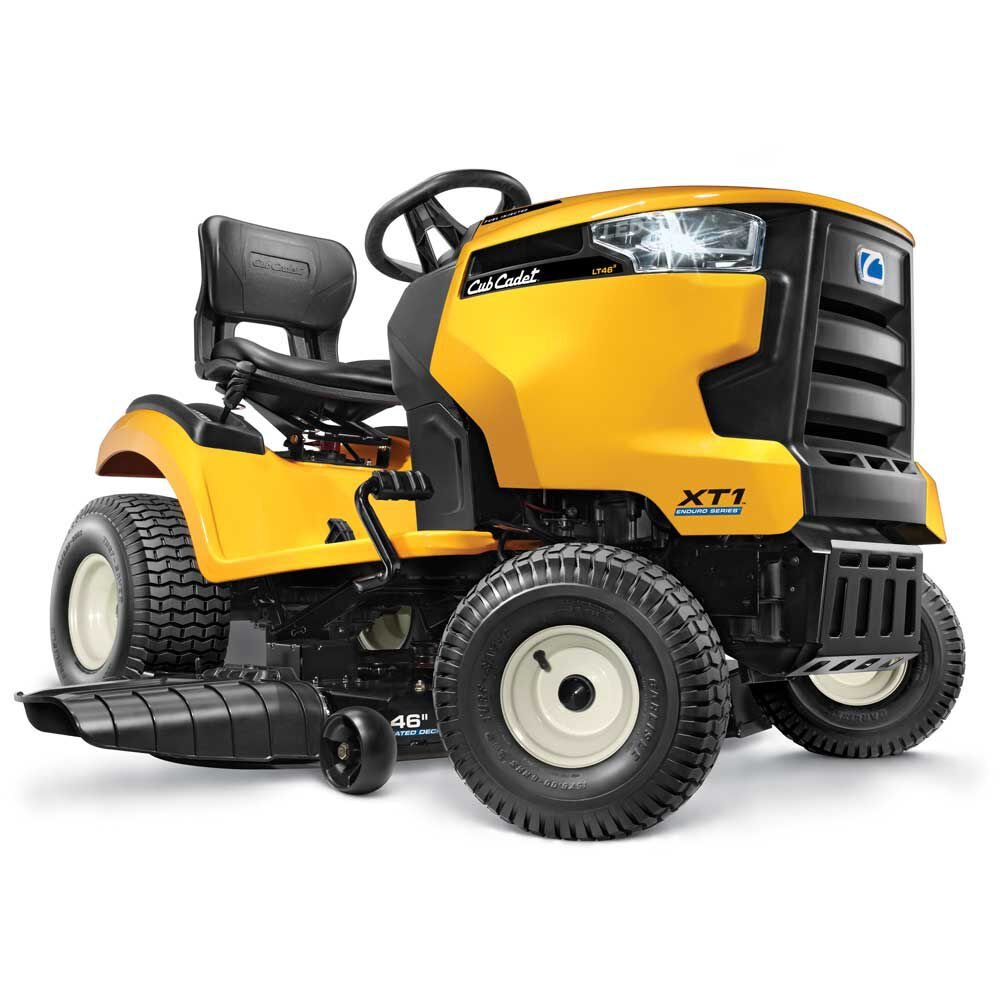

Cub Cadet XT1-LT46 EFI 13B9A1CN010

Cub Cadet XT1-LT46 EFI 13B9A1CN010

Product number: 13B9A1CN010

Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.

Product Brand: Cub CadetProduct Type: Non-Current Models

Have Questions?

Our experts are here to answer your questions.

Contact Us+1 404-301-0719

Specifications

General

Product Number:
13B9A1CN010
Brand:
Cub Cadet
Product Type:
Non-Current Models

Engine

Engine BrandCub:
Cadet®
Engine Model:
EFI Single Cylinder Engine
Engine Model Number:
9X90HUB
Engine Displacement:
547cc
Starter Type:
Electric
Fuel Tank Capacity:
2.5 gal. US (9.46 L)
Cylinders:
Single
Engine Start:
Push Button
Engine Oil Capacity:
1.8 qt. US (1.7 L)
Lubrication:
Fully pressurized
Charging System:
15 amp regulated
Fuel Gauge:
No
Governor:
Mechanical
Choke:
Electronic
Air Filter:
Dual element
Oil Filter:
Yes
Fuel Delivery:
Electronic Fuel Injection (EFI)

Battery

Battery:
230 CCA
Battery Type:
Standard Lead Acid
Battery Voltage:
12V

Drive System

Transmission:
Tuff Torq® K46
Forward Speed;:
5.5 MPH / 8.6 KMH
Reverse Speed:
3 MPH / 4.8 KMH
Rear Axle:
3/4"
Drive System:
Hydrostatic
Transmission Control:
Foot Pedal
Transmission Housing:
Aluminum
Engine to Transmission:
Heavy-duty belt
Rear Differential Lock:
No

Cutting Deck

Deck Cutting Width:
46 in
Deck Wash:
Yes
Deck Material:
11-gauge steel
Deck Engagement (PTO):
Electric
Deck Construction:
Fabricated
Blade(s):
Two
Deck Lift:
Hand lever with spring-assist
Cutting Height Range:
1" - 4"
Anti-Scalping:
Four gauge wheels
Deck Positions:
12

Warranty

Warranty:
3-year unlimited hours
Frame Warranty:
5-year unlimited hours
Front Axle Warranty:
5-year unlimited hours
Deck Shell Warranty:
Lifetime limited
Commercial Warranty:
No

Chassis

Frame:
Robotically welded
Turning Radius:
16"
Bumper:
No
Rear Tow Hitch:
Yes
Corrosion Protection:
Yes
Front Pivot Bar:
Cast iron

Controls

Cruise Contro:
lYes
Brake:
Disc

Comfort

Seat Type:
15" high-back
Armrests:
No
Seat Adjustment:
Lever
Floor Mats:
Rubber

Wheels

Bearing Type:
Poly Bushing
Rear Tires:
20"x 8"-8"
Front Tires:
15"x 6"-6"
Tire Tread:
Turf Saver

Additional Specifications

Mulch Kit:
Available Separately
Headlight(s):
Dual-LED
Cup Holder:
Yes
Operator Presence System:
Yes
Model Number:
13B9A1CN010

Maintenance Parts

Air Filter:
937-05066 OR 490-200-C063
Oil Filter:
951-12690 OR 490-201-C010
Spark Plug:
951-10292A
Deck Belt:
954-05087A OR
Drive Belt:
954-05027B OR 490-501-C061
Blades:
942-04244A OR 490-110-C131
Xtreme Blades:
942-04290-X OR 490-110-C156
Ignition Key:
725-06779B OR 490-350-C002

Key Features

  • The Cub Cadet XT1 LT46 EFI is powered by a Cub Cadet single cylinder 547cc engine equipped with EFI for 25% less fuel consumption, less maintenance, dependable starting, and easy off-season storage.
  • 46-inch fabricated, 11-gauge, twin-blade deck with 12 cutting positions.
  • Optimized steering system for responsive handling gives a 16-inch turn radius a zero-turn feel.
  • 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours/limited lifetime fabricated deck shell.
  • Ideal for mowing 1.5 acres of mostly flat terrain and a few obstacles.
