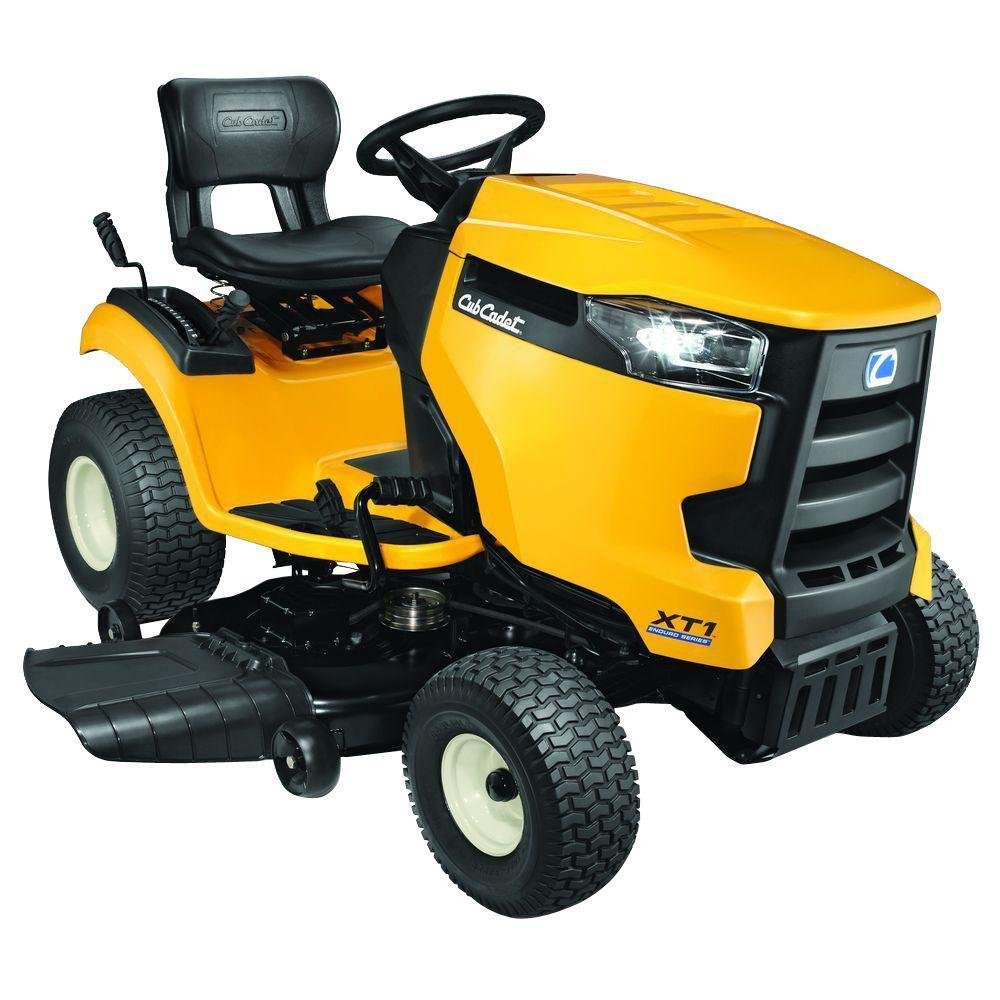

Cub Cadet XT1-LT 46 (2019)
Product number: 13APA1CT010
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Product Description
The Cub Cadet XT Enduro series lawn tractor features an incredibly responsive steering system as well as refined ergonomics and bold new styling. With it's E-coat corrosion defense system it features the best in class protection for proven durability and appearance.
46" stamped, twin blade deck.
22 HP 7000 SERIES Kohler® engine.
Hydrostatic transmission; no shifting - just push a pedal and go.
WARRANTY:
3-year unlimited hours (includes powertrain) & 5-year chassis & front axle unlimited hours
Specifications
General
- Product Number:
- 13APA1CT010
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Specifications
- Engine:
- 22 HP Kohler 7000 Series Engine. Single/Cast-iron sleeve
- Power System:
- Tuff Torq® foot-controlled hydrostatic transmission (K46)
- Engine to Transmission:
- Heavy-duty belt
- Cruise Control:
- Soft touch engagement
- Transmission Housing:
- Cast aluminum
- Rear Axle:
- 3/4" w/dual PM steel drive hubs
- Steering/Turning Radius:
- Optimized steering system, manual sector and pinion/16"
- Front Pivot Bar:
- Heavy-duty cast-iron (5-year limited warranty/unlimited hours)
- Front Axles:
- Heavy-duty 3/4" through machined bushings
- Ball Joints:
- Fully-adjustable/Automotive-style
- Hood:
- Front pivot, High impact with quick removal design
- Frame:
- Fully robotically-welded frame with new e-coating corrosion defense system (5-year limited warranty)
- Bumper:
- Optional
- Battery Voltage:
- 230 cold crank amps
- Charging System:
- Flywheel Alternator - 12 amp regulated
- Headlights:
- LED High Illumination
- System Monitor Package:
- Digitial hour meter/service minder, oil, battery, brake and PTO start sequence
- Brakes:
- Automotive-style disc
- Engine Start:
- Electric
- Safety Systems:
- Neutral Start, operator presence, reverse safety switch, brake pedal lock, RevTek reverse mowing technology
- PTO Clutch:
- Smooth lever engagement
- Seat:
- Cub Comfort™ high-back seat with 10 degree incline and slide
- Dimensions:
- Length/Width/Height. 68"/54"/42.5"
- Tires (Front/Rear):
- 15" x 6" sleeve bearing/20" x 8"
- Tire Tread:
- Turf Saver
- Forward Speed:
- 5.5 mph
- Reverse Speed:
- 3.1 mph
- Fuel Tank Capacity:
- 3 gal. easy fill, rustproof
- Engine Oil Capacity:
- 2 qt
- Wheelbase:
- 47"
- Estimated Weight:
- 420 lbs
- Deck Lift:
- Lever/12-position/spring assisted
- Cutting Width/Blades:
- 46" / twin blade
- Deck Construction:
- Stamped
- Deck Cutting Height:
- 1" - 4"
- Anti-scalping Wheels (front/rear):
- 2 Ball/2 Narrow
- Mulch Kit:
- Optional
- Deck Spindles:
- 3/4" with steel cap and Triple Lip Sealed
- Deck Pulleys:
- Split steel spindle pulleys/oversized heavy-duty idlers
- Deck Attach/Removal:
- QuickAttach™ (no tools required)
- Deck Wash:
- Patented SmartJet™ high-pressure deck washing system
