Cub Cadet
Cub Cadet / MTD 954-05027B Hydrostatic Transmission Drive Belt (Genuine OEM)
954-05027B$53.42 $59.35
In StockView Product

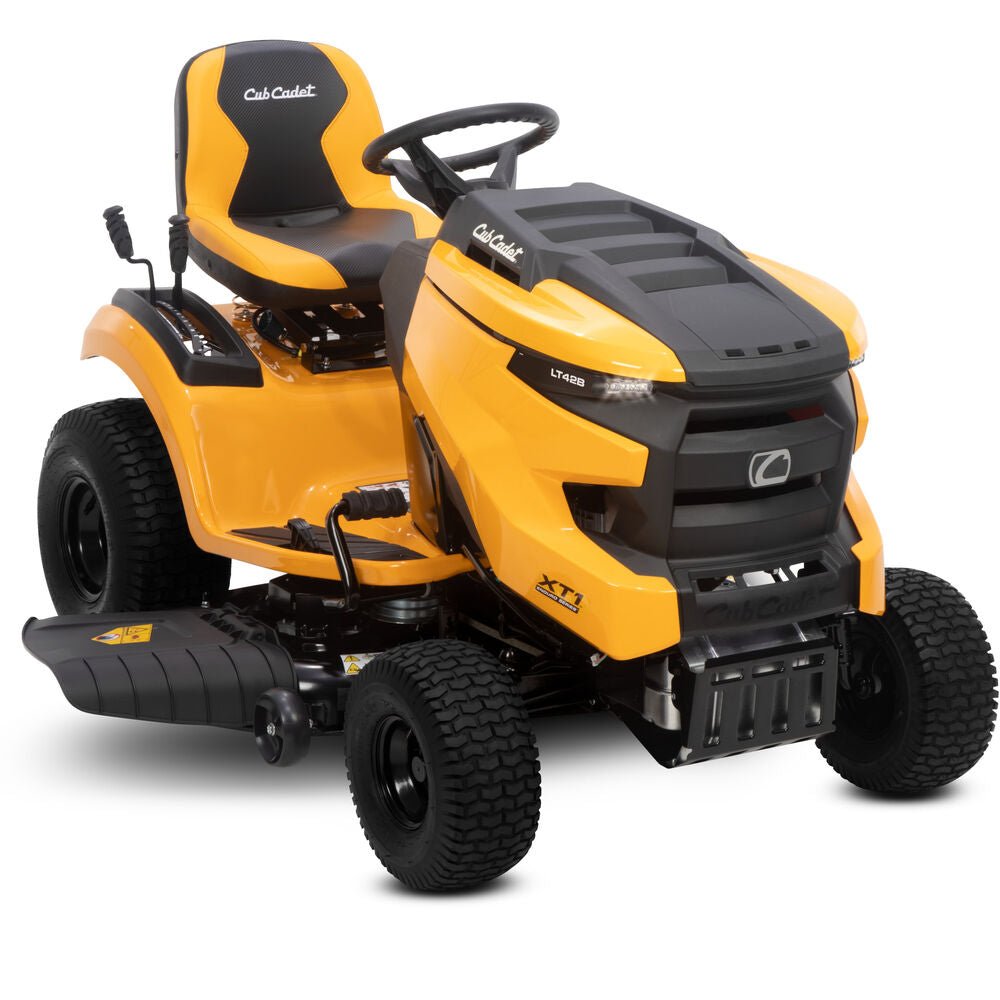

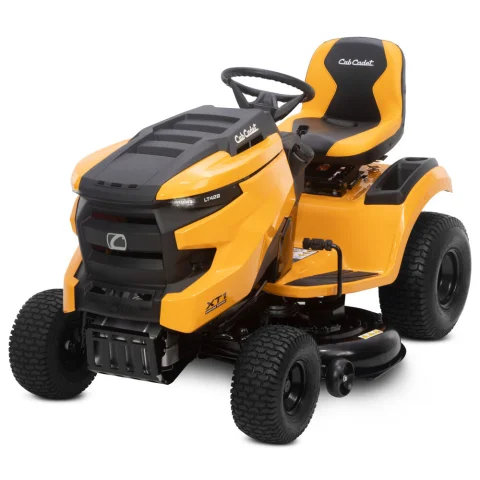

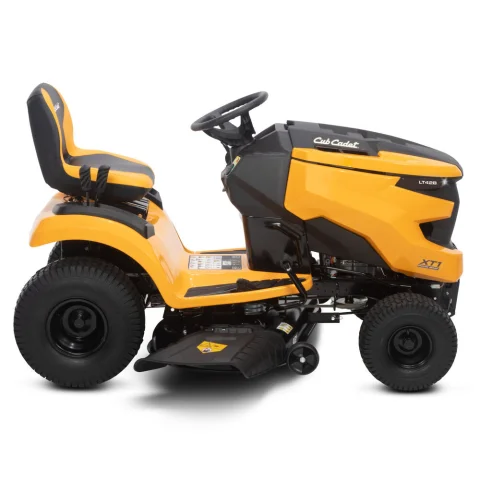

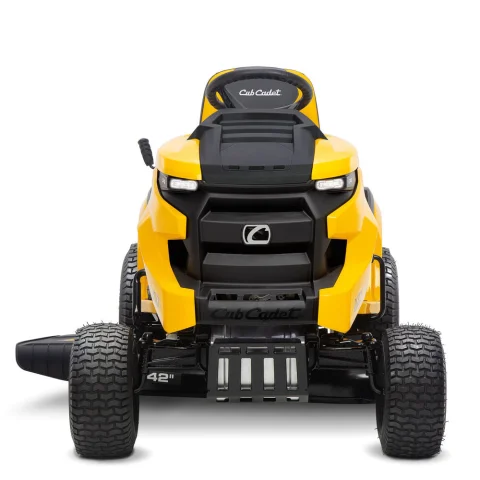

1 / 4 Cub Cadet XT1-LT 42B 13ALA9TSA10
Product number: 13ALA9TSA10
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Specifications
General
- Product Number:
- 13ALA9TSA10
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Engine
- Engine Brand:
- Briggs & Stratton 19HP 33S877-0038
- Engine Displacement:
- 540cc
- Fuel Tank Capacity:
- 3.0 gal.
- Cylinders/Material:
- Single
- Engine Start:
- Key
- Engine Oil Capacity:
- 1.5 qts.
- Charging System:
- 3 Amp Dual Circuit
- Fuel Gauge:
- No
- Air Filter:
- Dual element
- Oil Filter:
- Yes
Battery
- Battery:
- 12V 230 cold crank amps
Drive System
- Transmission:
- Hydrostatic, foot
- Forward Speed:
- 5.5 MPH
- Reverse Speed:
- 3.1 MPH
- Rear Axle:
- 3/4"
- Transmission Housing:
- Die-Cast Aluminum
- Transmission Type:
- Tuff Torq TL-200
- Rear Wheels:
- 20"x 8"-8" Turf Saver
- Front Wheels:
- 15"x 6"-6" Turf Saver
Cutting Deck
- Deck Cutting Width:
- 42"
- Cutting Modes:
- Discharge/mulch/bagging
- Deck Wash:
- Included
- Deck Material:
- Steel, 13-gauge
- Deck Attach/Removal:
- QuickAttach™ (no tools required)
- Deck Engagement (PTO):
- Manual lever
- Deck Construction:
- Stamped
- Spindle Construction:
- 3/4" with steel cap and Triple Lip Sealed
- Blade(s):
- 2
- Deck Lift:
- Lever
- Cutting Height Range:
- 1" - 4"
- Anti-Scalping:
- 2 ball
- Deck Positions:
- 12 positions
Warranty
- Warranty:
- 3-year/unlimited hour warranty
- Frame Warranty:
- 5-year/unlimited hour warranty
- Front Axle Warranty:
- 5-year/unlimited hour warranty
- Deck Shell:
- 3-year unlimited hours
- Commercial Warranty:
- No
Chassis
- Frame:
- Robotically welded
- Bumper:
- No
- Front Axle:
- Cast iron
- Turning Radius:
- 16"
- Rear Tow Hitch:
- Included
- Corrosion Protection:
- E-coating
Controls
- Cruise Control:
- Yes
- Brakes:
- Disc
- Steering Control:
- Manual sector and pinion
Comfort
- Seat Type:
- 15" high-back seat
- Seat Suspension:
- Seat spring
- Seat Adjustment:
- Lever
- Floor Mats Traction:
- Rubber
Additional Specifications
- Mulch Kit:
- Optional
- Headlight(s):
- 2 - LED
- Discharge Chute:
- Included
- Cup Holder:
- Included
- Operator Presence System:
- Included
- Bagger:
- Optional
- Model Number:
- 13ALA9TSA10
- Pre Filter:
- 793685
Maintenance Parts
- Air Filter:
- 793569
- Oil Filter:
- 492932S
- Fuel Filter:
- 845125
- Spark Plug:
- 792015
- Deck Belt:
- 954-05021
- Drive Belt:
- 954-05027B
- Blades Order 2:
- 742P05177
- Xtreme Blades:
- 742P05177A-X
- Ignition Key:
- 925-1745A
Key Features
- The Cub Cadet XT1 LT42B is powered by a Briggs & Stratton Professional Series single cylinder 540cc engine
- 42-inch stamped, 13-gauge, twin-blade deck with 12 cutting positions.
- Equipped with an optimized steering system for responsive handling to give a 16-inch turn radius a zero-turn feel.
- 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours.
- Ideal for mowing up to 1.5 acres of mostly flat terrain.
- Tuff Torq foot controlled hydrostatic transmission, just push the pedal and go
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
