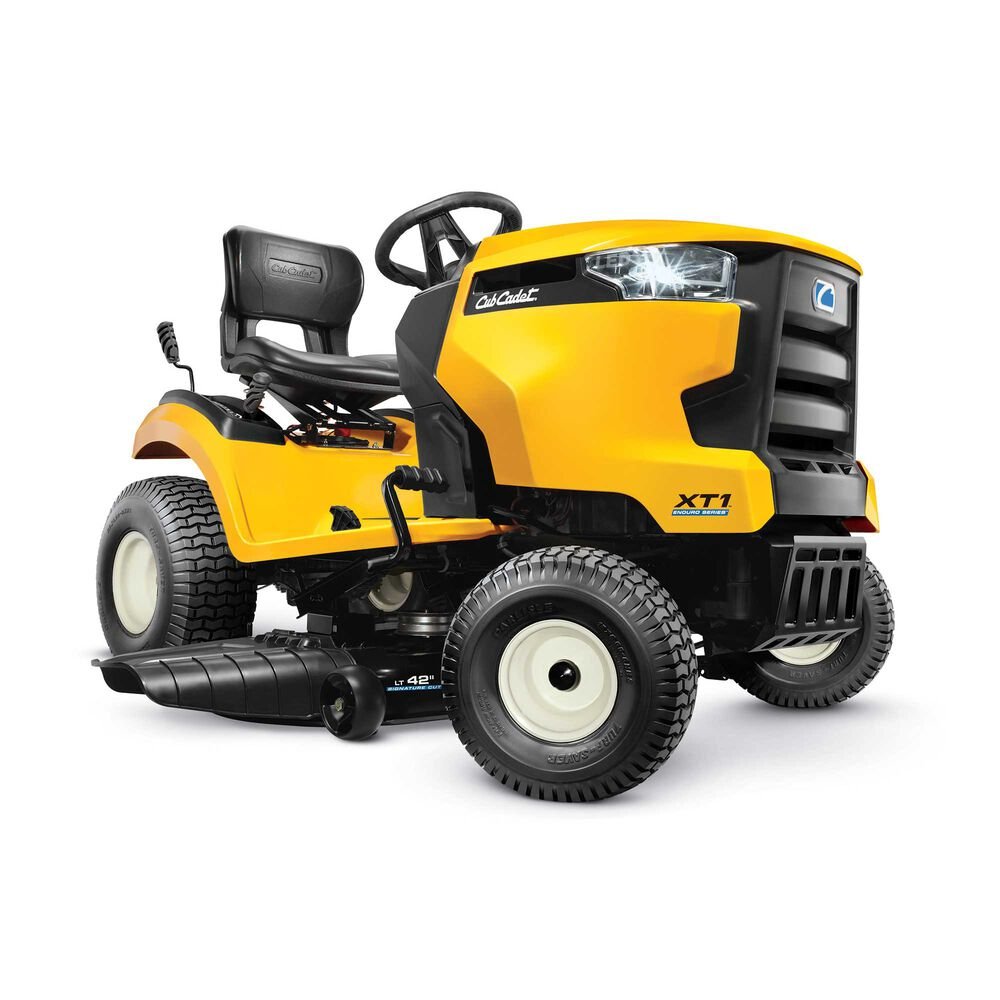

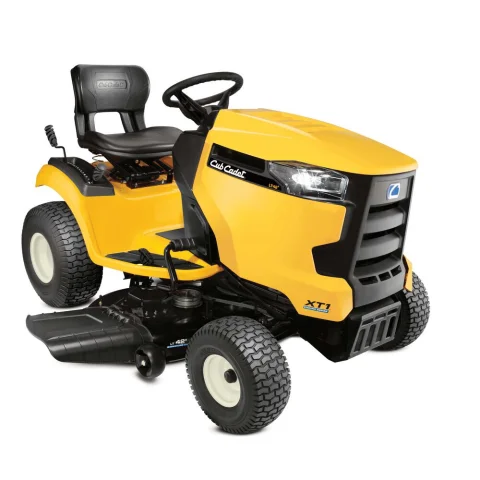

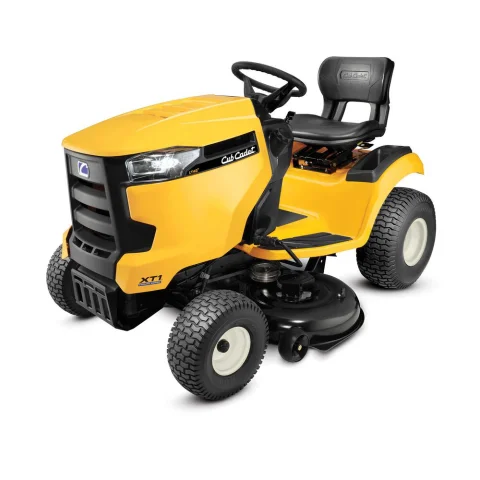

Cub Cadet XT1-LT 42 13AOA9CS010 1 / 3

Cub Cadet XT1-LT 42 13AOA9CS010

Product number: 13AOA9CS010

Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.

Product Brand: Cub CadetProduct Type: Non-Current Models

Have Questions?

Our experts are here to answer your questions.

Contact Us+1 404-301-0719

Specifications

General

Product Number:
13AOA9CS010
Brand:
Cub Cadet
Product Type:
Non-Current Models

Engine

Engine Brand:
Kohler KS540-3011
Engine Displacement:
541cc
Fuel Tank Capacity:
3.0 gal.
Cylinders/Material:
Single
Engine Start:
Key
Engine Oil Capacity:
1.8 qts.
Charging System:
15 amp regulated
Fuel Gauge:
Fuel sight window
Air Filter:
Dual element
Oil Filter:
Yes

Battery

Battery:
12V 230 cold crank amps

Drive System

Transmission:
Hydrostatic, foot
Forward Speed:
5.5 MPH
Reverse Speed:
3.1 MPH
Rear Axle:
3/4" w/dual PM steel drive hubs
Transmission Housing:
Die-Cast Aluminum
Transmission Type:
Tuff Torq TL-200

Cutting Deck

Deck Cutting Width:
42"
Cutting Modes:
Discharge/mulch/bagging
Deck Wash:
Included
Deck Material:
Steel, 13-gauge
Deck Attach/Removal:
QuickAttach™ (no tools required)
Deck Engagement (PTO):
Manual lever
Deck Construction:
Stamped
Spindle Construction:
3/4" with steel cap and Triple Lip Sealed
Blade(s):
2
Deck Lift:
Lever
Cutting Height Range:
1" - 4"
Anti-Scalping:
2 ball
Deck Positions:
12 positions

Warranty

Warranty:
3-year/unlimited hour warranty
Frame Warranty:
5-year/unlimited hour warranty
Front Axle Warranty:
5-year/unlimited hour warranty

Chassis

Frame:
Robotically welded
Front Axle:
Cast iron
Turning Radius:
16"
Rear Tow Hitch:
Included
Corrosion Protection:
E-coating

Controls

Cruise Control:
Included
Brakes:
Automotive-style disc
Steering Control:
Manual sector and pinion
Display:
Hour meter

Comfort

Seat Type:
15" high-back seat
Seat Suspension:
Seat spring
Seat Adjustment:
Lever
Floor Mats Traction:
Pad

Additional Specifications

Mulch Kit:
Optional
Headlight(s):
2 - LED
Discharge Chute:
Included
Cup Holder:
Included
Operator Presence System:
Included
Bagger:
Optional
Model Number:
13AOA9CS010

Maintenance Parts

Air Filter:
22-883-01-S1
Oil Filter:
12 050 01-S
Fuel Filter:
25 050 21-S
Spark Plug:
25 132 28-S OR DCPR7E
Deck Belt:
954-05021
Drive Belt:
954-05027B
Blades Order 2:
942-04308A
Xtreme Blades:
942-04308-X
Ignition Key:
925-1745A

Key Features

  • The Cub Cadet XT1 LT42 is powered by a Kohler single cylinder 541 cc engine
  • 42-inch stamped, 13-gauge, twin-blade deck with 12 cutting positions.
  • Equipped with an optimized steering system for responsive handling to give a 16-inch turn radius a zero-turn feel.
  • 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours.
  • Ideal for mowing up to 1.5 acres of mostly flat terrain.
  • Tuff Torq foot controlled hydrostatic transmission, just push the pedal and go
