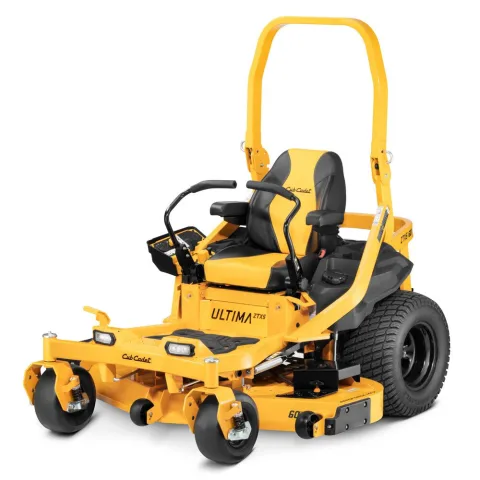

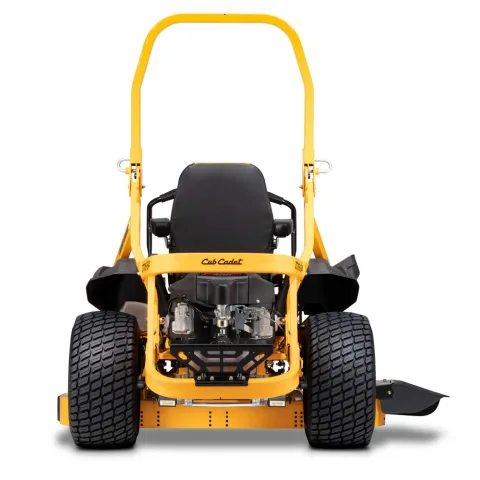

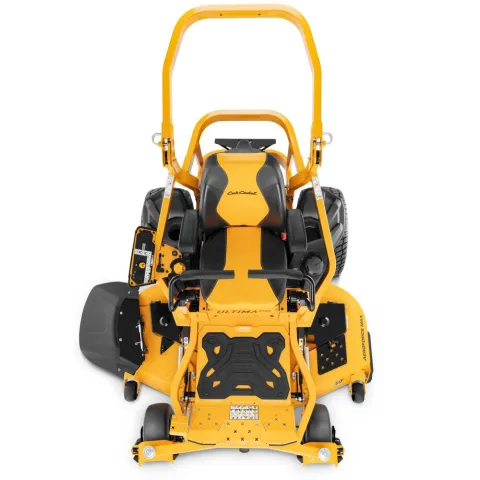

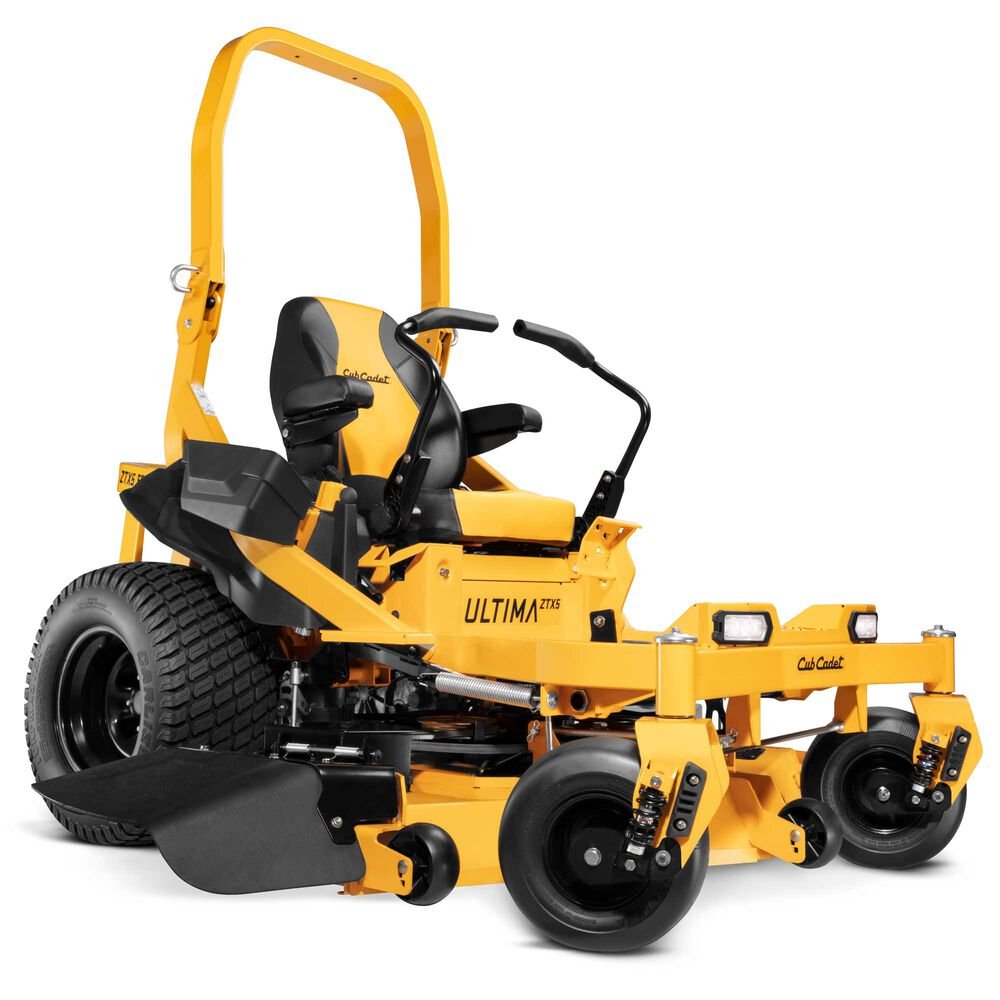

1 / 5 CUB CADET ULTIMA ZTX5 60 47RTAAA8010
Product number: 47RTAAA8010
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Product Description
ZTX5 60
Specifications
General
- Product Number:
- 47RTAAA8010
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Engine
- Engine Brand:
- Kohler®
- Engine Model:
- Confidant
- Engine Model Number:
- ZT740-3064
- Engine Displacement:
- 747cc
- Engine Output:
- 25HP
- Starter Type:
- Electric
- Fuel Tank Capacity:
- 5.5 gal. US (20.82 L)
- Cylinders:
- Twin
- Engine Start:
- Ignition Key
- Engine Oil Capacity:
- 2.1 qt US ( 2 L)
- Lubrication:
- Fully pressurized
- Charging System:
- 12 amp regulated
- Fuel Gauge:
- Yes
- Governor:
- Mechanical
- Choke:
- Choke-a-matic
- Air Filter:
- Dual element
- Oil Filter:
- Yes
- Fuel Delivery:
- Carburetor
Battery
- Battery:
- 210 CCA
- Battery Type:
- AGM (Absorbent Glass Mat)
- Battery Voltage:
- 12V
Drive System
- Transmission:
- Hydro-Gear ZT 3200
- Forward Speed:
- 8.5 MPH / 13.7 km/h
- Reverse Speed:
- 3.5 MPH / 5.6 km/h
- Drive System:
- Hydrostatic
Cutting Deck
- Deck Cutting Width:
- 60 in
- Deck Wash:
- No
- Deck Material:
- 10-gauge steel with 2-gauge reinforcement
- Deck Engagement (PTO):
- Electric
- Deck Construction:
- Fabricated
- Blade(s):
- Three
- Deck Lift:
- Foot pedal with Dial Adjust
- Cutting Height Range:
- 1" - 4.75"
- Anti-Scalping:
- Three gauge wheels
- Deck Positions:
- 17
Warranty
- Warranty:
- 4-year 800 hours
- Frame Warranty:
- Lifetime Limited
- Deck Shell Warranty:
- Lifetime limited
Chassis
- Frame:
- 1.5" x 3" tubular steel
- Turning Radius:
- 0°
- ROPS:
- Yes
- Rear Tow Hitch:
- Yes
- Corrosion Protection:
- Yes

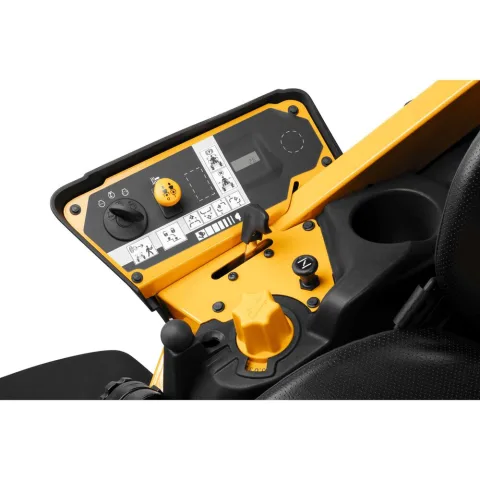

Controls
- Cruise Control:
- No
- Steering Control:
- Lap Bars
Comfort
- Seat Type:
- 24" high back
- Armrests:
- Yes
- Seat Adjustment:
- Lever
Wheels
- Rear Tires:
- 23"x 12"-12"
- Front Tires:
- 13"x 6.5"-6"
Additional Specifications
- Hour Meter:
- Yes
- Headlight(s):
- Dual-LED
- Cup Holder:
- Yes
- Operator Presence System:
- Yes
- Parking Brake:
- Lap Bar Integrated
- Model Number:
- 47RTAAA8010
Maintenance Parts
- Air Filter:
- 16 883 01-S1
- Oil Filter:
- 52 050 02-S
- Fuel Filter:
- 24 050 13-S1
- Spark Plug:
- 25 132 23-S OR RC12YC
- Deck Belt:
- 754P06094 OR 490-501-C090
- Drive Belt:
- 954-04317A OR 490-501-C069
- Blades:
- 742P05516
- Xtreme Blade:
- 01005381P-X
- Ignition Key:
- 925-1745A
- Trans Filter:
- HG-52114P
- Engine Oil:
- 490-000-C044
Key Features
- Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
- Equipped with a powerful 25 HP Kohler® Confidant V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
- Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.
