Product Description
ZTX5 60

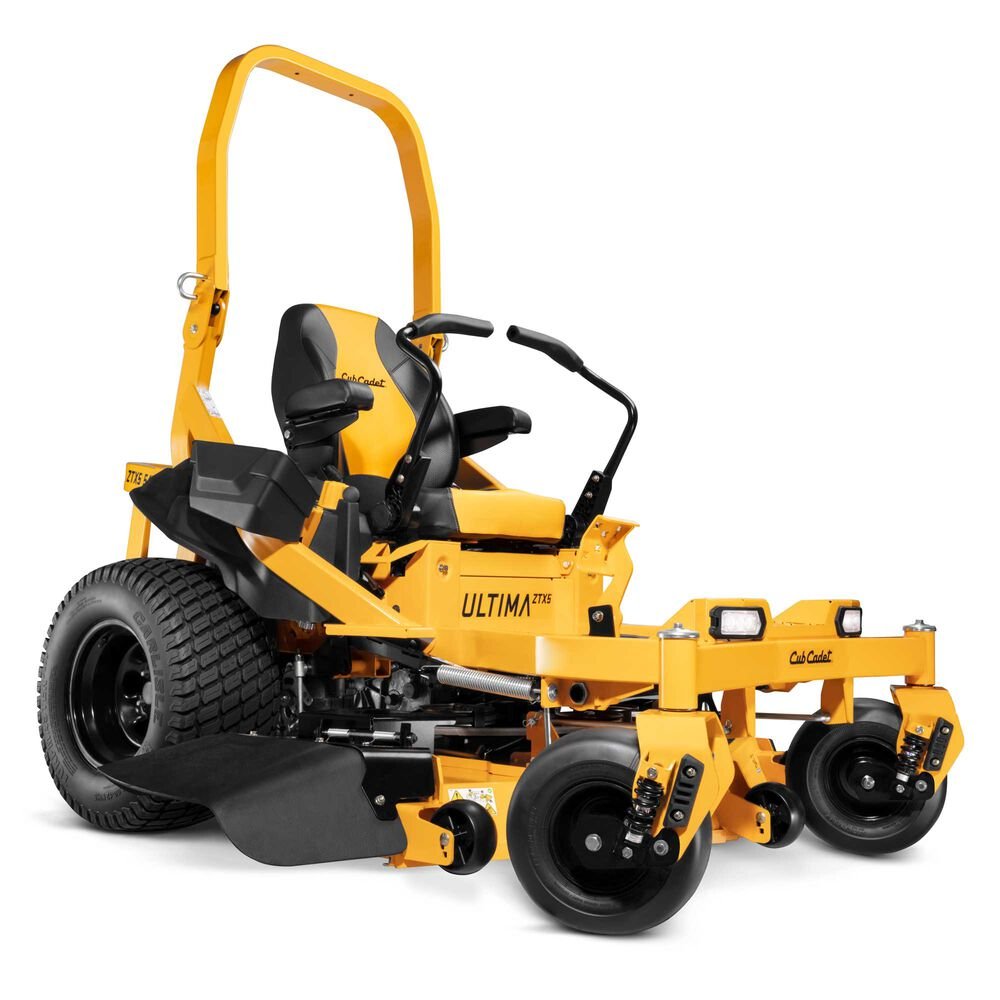

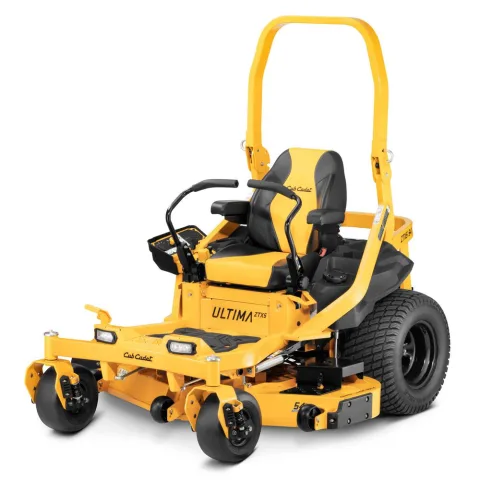

The Cub Cadet® Ultima Series ZTX5 60 60-in. 24 HP* Zero-Turn Lawn Mower with AeroForce™ Max Reinforced Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features 10-gauge reinforced fabricated steel with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design allowing you to mow a wide area of grass. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish.
Specifications
General
- Product Number:
- 47RKAAA8A10
- Brand:
- Cub Cadet
- Product Type:
- Zero-Turn
Engine
- Engine Brand:
- Kawasaki®
- Engine Model:
- FS Series
- Engine Model Number:
- 730V
- Engine Displacement:
- 726cc
- Engine Output:
- 24HP
- Starter Type:
- Electric
- Fuel Tank Capacity:
- 5.5 gal. US (20.82 L)
- Cylinders:
- Twin
- Engine Start:
- Ignition Key
- Engine Oil Capacity:
- 2.1 qt US ( 2 L)
- Lubrication:
- Fully pressurized
- Charging System:
- 12 amp regulated
- Fuel Gauge:
- Yes
- Governor:
- Mechanical
- Choke:
- Separate Choke
- Air Filter:
- Single element
- Oil Filter:
- Yes
- Fuel Delivery:
- Carburetor
Battery
- Battery:
- 210 CCA
- Battery Type:
- AGM (Absorbent Glass Mat)
- Battery Voltage:
- 12V
Drive System
- Transmission:
- Hydro-Gear ZT 3200
- Forward Speed:
- 8.5 MPH
- Reverse Speed:
- 3.5 MPH
- Drive System:
- Hydrostatic
Cutting Deck
- Deck Cutting Width:
- 60"
- Deck Wash:
- No
- Deck Material:
- 10-gauge steel with 2-gauge reinforcement
- Deck Engagement (PTO):
- Electric
- Deck Construction:
- Fabricated
- Blade(s):
- Three
- Deck Lift:
- Foot pedal with Dial Adjust
- Cutting Height Range:
- 1" - 4.75"
- Anti-Scalping:
- Three gauge wheels
- Deck Positions:
- 17
Warranty
- Warranty:
- 4-year 800 hours
- Frame Warranty:
- Lifetime Limited
- Deck Shell Warranty:
- Lifetime limited
- Commercial Warranty:
- 4-year 800 hours
Chassis
- Frame:
- 1.5" x 3" tubular steel
- Turning Radius:
- 0°
- ROPS:
- Yes
- Rear Tow Hitch:
- Yes
- Corrosion Protection:
- Yes
Controls
- Cruise Control:
- No
- Steering Control:
- Lap Bars
Comfort
- Seat Type:
- 24" high back
- Armrests:
- Yes
- Seat Adjustment:
- Lever
- Front Caster Suspension:
- Yes
Wheels
- Rear Tires:
- 23"x 12"-12"
- Front Tires:
- 13"x 6.5"-6"
Additional Specifications
- Hour Meter:
- Yes
- Mulch Kit:
- Available separately
- Headlight(s):
- Dual-LED
- Cup Holder:
- Yes
- Operator Presence System:
- Yes
- Parking Brake:
- Lap Bar Integrated
- Model Number:
- 47AKAAA8A10
Maintenance Parts
- Air Filter:
- KM-11013-0752
- Pre-filter:
- KM-11013-7046
- Oil Filter:
- KM-49065-0721
- Fuel Filter:
- KM-49019-0031
- Spark Plug:
- KM-BPR4ES
- Ignition Key:
- 925-1745A
- Trans Filter:
- HG-52114P
- Trans Oil:
- 72750 KIT
- Engine Oil:
- 490-000-C044
Key Features
- Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
- Equipped with a powerful 24 HP Kawasaki® FS Series V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
- Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.
