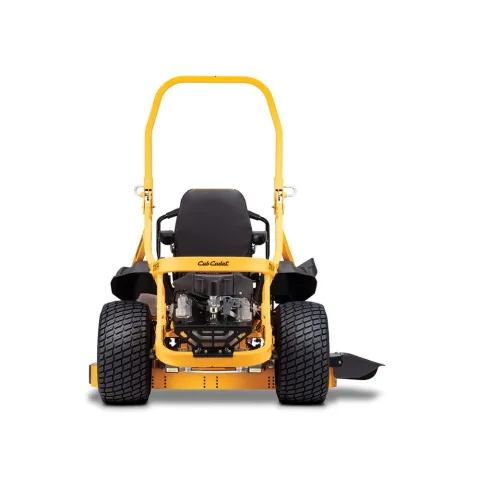

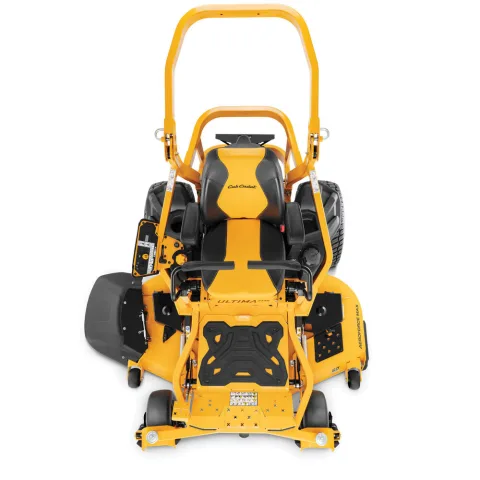

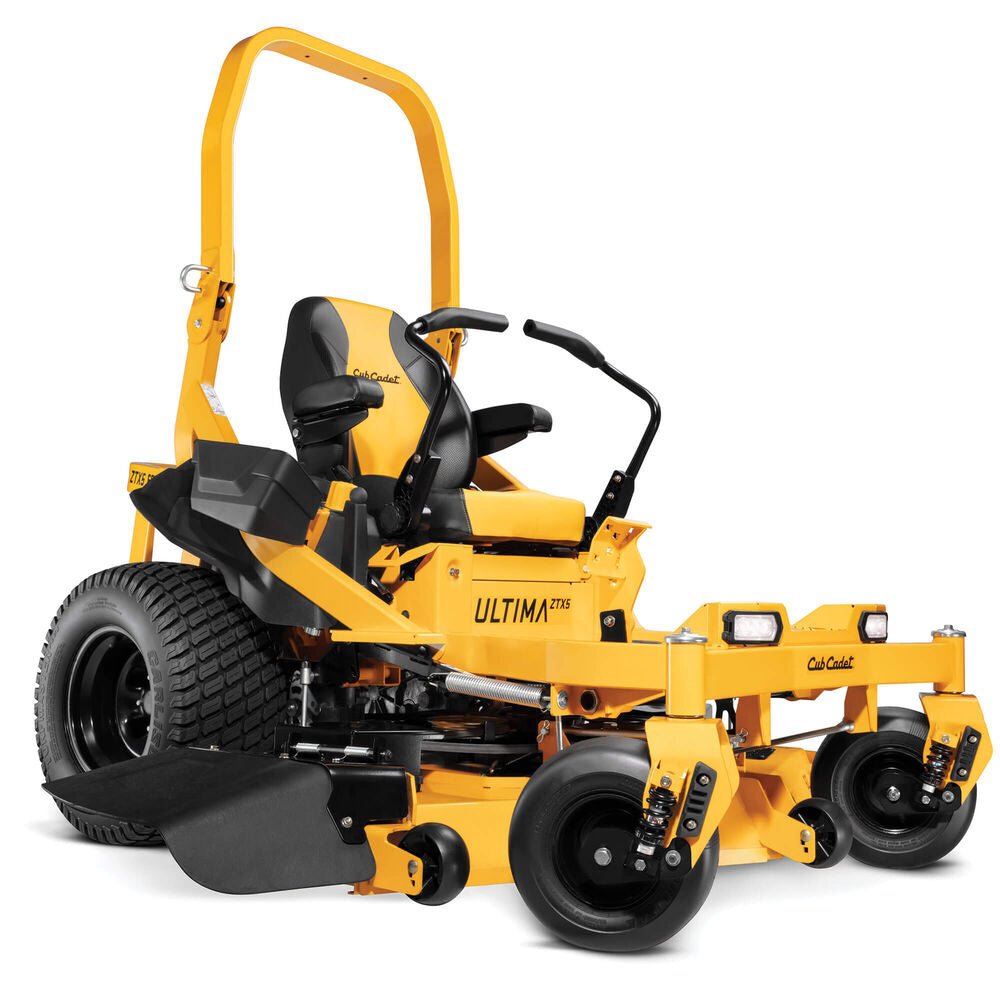

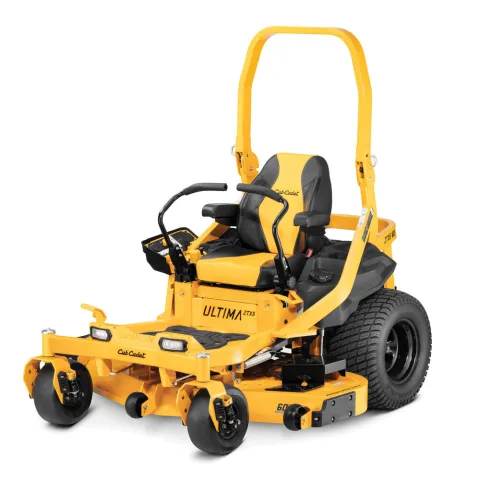

CUB CADET ULTIMA ZTX5 60 47RIAAA8010

Specifications

General

Product Number:

47RIAAA8010

Brand:

Cub Cadet

Product Type:

Non-Current Models

Engine

Engine Brand:

Kawasaki®

Engine Model:

FR Series

Engine Displacement:

726cc

Engine Output:

24 hp

Fuel Tank Capacity:

5.5 gal.

Cylinders/Material:

Twin

Engine Start:

Key

Engine Oil Capacity:

2.1 qts.

Lubrication:

Fully pressurized

Battery:

12V 230 cold crank amps

Charging System:

15 Amp Regulated

Fuel Gauge:

Fuel Gauge

Governor:

Manual

Choke:

Separate choke and throttle

Air Filter:

Dual element

Oil Filter:

Yes

Drive System

Transmission:

Hydro-Gear ZT 3200

Forward Speed:

8.5 MPH

Reverse Speed:

3.5 MPH

Rear Axle:

1.125"

Transmission Housing:

Cast aluminum

Transmission Type:

Hydro-Gear ZT 3200

Cutting Deck

Deck Cutting Width:

60"

Cutting Modes:

Discharge/mulch/bagging

Deck Material:

10-gauge AeroForce Max™ fabricated steel / double plate reinforced spindle mounts / 7-gauge side wraps /skid plate

Deck Attach/Removal:

Removable

Deck Engagement (PTO):

Pull knob (electric)

Deck Construction:

Fabricated

Spindle Construction:

Sealed cast aluminum housing (Maintenance free)

Blade(s):

3

Deck Lift:

Foot pedal with Dial Adjust

Cutting Height Range:

1" - 4.75", 5" transport

Anti-Scalping:

2 ball, 1 nose

Deck Positions:

16 positions and transport position

Chassis

Frame:

1.5" x 3" tubular steel frame

Front Axle(s):

Fabricated steel

Turning Radius:

0"

Front Tires:

13"x6.5"-6"

Rear Tires:

23"x12"-12"

Tire Tread:

Turf Master/Multi Trac

ROPS:

Included

Rear Tow Hitch:

Included

Corrosion Protection:

Triple Guard Corrosion Defense System™

Yokes:

5/16” steel

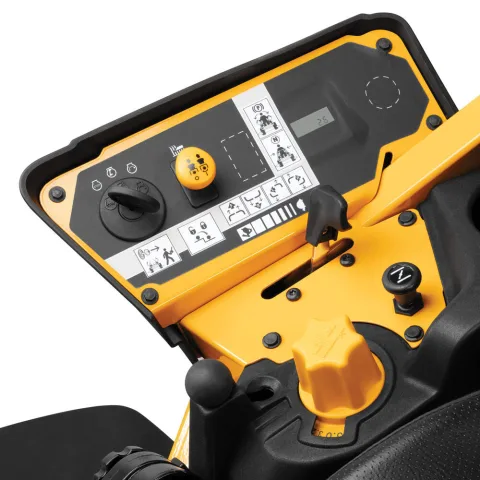

Controls

Brakes:

Lap bar integrated

Steering Wheel Control:

Lap Bars

Headlight(s):

2 - LED

Display:

Hour meter

Comfort

Seat Type:

24" high back seat

Arm Rests:

Included

Seat Suspension:

Advanced polymer

Seat Adjustment:

Lever

Floor Mats:

Rubber

Steering Comfort:

Quick adjustable (no tools) Soft Touch lab bars

Additional Specifications

Mulch Kit:

Optional

Discharge Chute:

Included

Cup Holder:

Included

Operator Presence System:

Included

Bagger:

Optional

Specifications

Series:

Ultima Series ZTX

Warranty

Warranty:

4-year/500 hour warranty

Frame Warranty:

Limited lifetime warranty

Deck Shell Warranty:

Limited lifetime warranty

Key Features

• Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
• Equipped with a powerful 24 HP Kawasaki® FR730 V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
• Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.
• Four-year/500 hour product warranty plus limited lifetime warranty on the frame and fabricated deck shell give you peace-of-mind
• Ideal for 4-10 acres with slightly rolling hills and several obstacles
