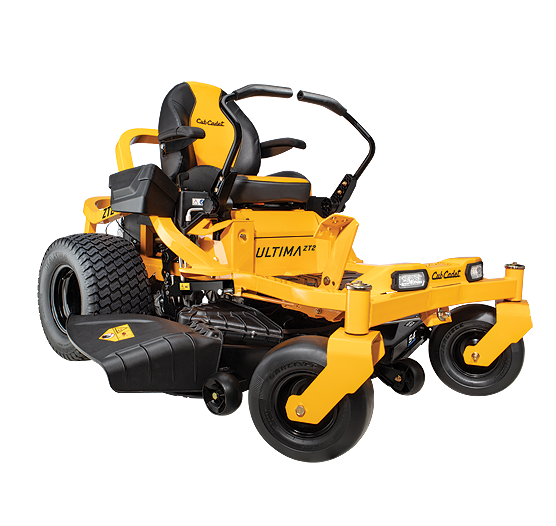

1 / 2 CUB CADET ULTIMA ZT2 54 17RIEACI010
Product number: 17RIEACI010
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Specifications
General
- Product Number:
- 17RIEACI010
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Engine
- Engine Brand:
- Kawasaki®
- Engine Model:
- FR691V-ES05
- Engine Displacement:
- 726cc
- Engine Output:
- 23 HP
- Fuel Tank Capacity:
- 3.5 Gallon fuel tank capacity to keep you mowing and minimize time loss for refueling needS
Drive System
- Transmission:
- Dual Hydro-Gear™ ZT-2800™ w/ oil reservoir and filter
- Forward Speed:
- 7.5 mph
- Reverse Speed:
- 3.5 mph
Cutting Deck
- Deck Cutting Width:
- 54"
- Deck Wash:
- SmartJet deck wash system provides high pressure water that cleans out grass and debris build-up under the deck
- Deck Material:
- 11-gauge fabricated steel
- Deck Engagement (PTO):
- Electronic fingertip blade engagement PTO allows for smooth operation of the deck or attachments
- Spindle Construction:
- Sealed cast aluminum housing (maintenance-free)
- Blade(s):
- 3
- Cutting Height Range:
- 1'' - 4.5''
- Deck Positions:
- Foot pedal with spring assist creates the perfect cut |15 Positions
Chassis
- Frame:
- High-strength, continuous square 2'' x 2'' tubular steel frame with fully E-Coat lower frame and Triple Guard Corrosion Defense System™ protects against wear and tear.
- Front Axle(s):
- Fixed 2" x 2.5" fully welded tubular steel axle (e-coated)
- Turning Radius:
- Zero degrees
- Front Tires:
- 13"x 6.5"-6" smooth tread front wheels pivot 180 degrees without turf damage
- Rear Tires:
- 20”x12”-10" Turf Master premium rear tires offer excellent traction, minimize turfing and provide a better ride on uneven ground at higher speeds
- Bumper:
- 2" x 2" Tubular steel bumper
- Rear Tow Hitch:
- Standard
Controls
- Handle:
- 3-way adjustable ergonomic lap bar
- Brakes:
- Integrated parking brakesystem in lap bars or ease of use
- Steering Control:
- 3-way adjustable ergonomic lap bar
- Headlight(s):
- Illuminating Dual-LED Headlights provide ultimate vision for mowing in low light conditions
Comfort
- Seat Type:
- Automotive-inspired, ergonomic, fully adjustable premium 18'' high-back seat
- Seat Suspension:
- Durable, advanced polymer seat suspension system optimizes comfort while reducing operators fatigue
Dimensions
- Dimensions:
- L/W/H 80'' x 65'' x 48''
- Weight (approx.):
- 615 lbs.
Additional Specifications
- Model Number:
- 17RIEACI010
Warranty
- Warranty:
- 3-year / unlimited-hour warranty.
- Frame Warranty:
- Limited lifetime warranty on frame and fabricated deck shell.
Maintenance Parts
- Air Filter:
- KM-11013-0752
- Oil Filter:
- KM-49065-0721
- Fuel Filter:
- KM-49019-0027
- Spark Plug:
- KM-BPR4ES
- Deck Belt:
- 954-04329A
- Drive Belt:
- 754P05874
- Blades:
- 942-05056A
- Xtreme Blade:
- 942-05056-X
- Ignition Key:
- 925-1745A
- Trans Filter:
- HG-52114P
- Engine Oil:
- 490-000-C044
Key Features
- Premium 23 hp 726cc Kawasaki® FR 691 Series Twin-cylinder OHV Engine, Commercial-grade powerplant that meets your yard’s toughest demands.
- Ideal for mowing slight rolling hills and several obstacles up to 5 acres
- A heavy-duty 11-gauge 54-in. fabricated triple-blade (high lift) deck
- Open frame design and hinged/removable floor pan allow easy access to the deck and engine for quick and simple maintenance
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
