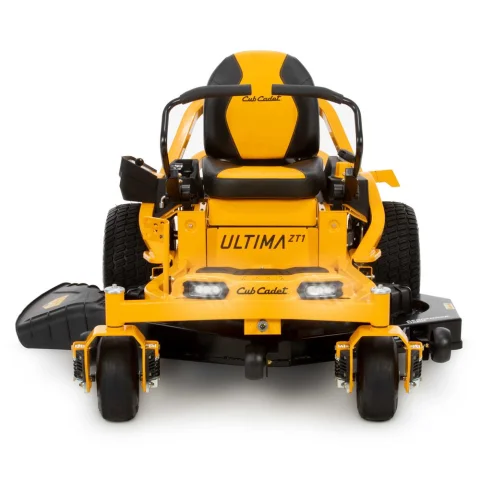

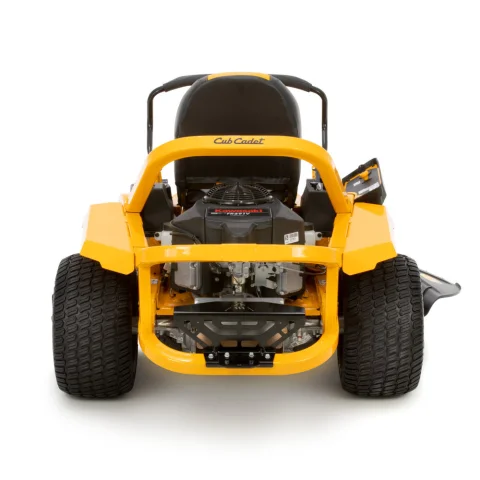

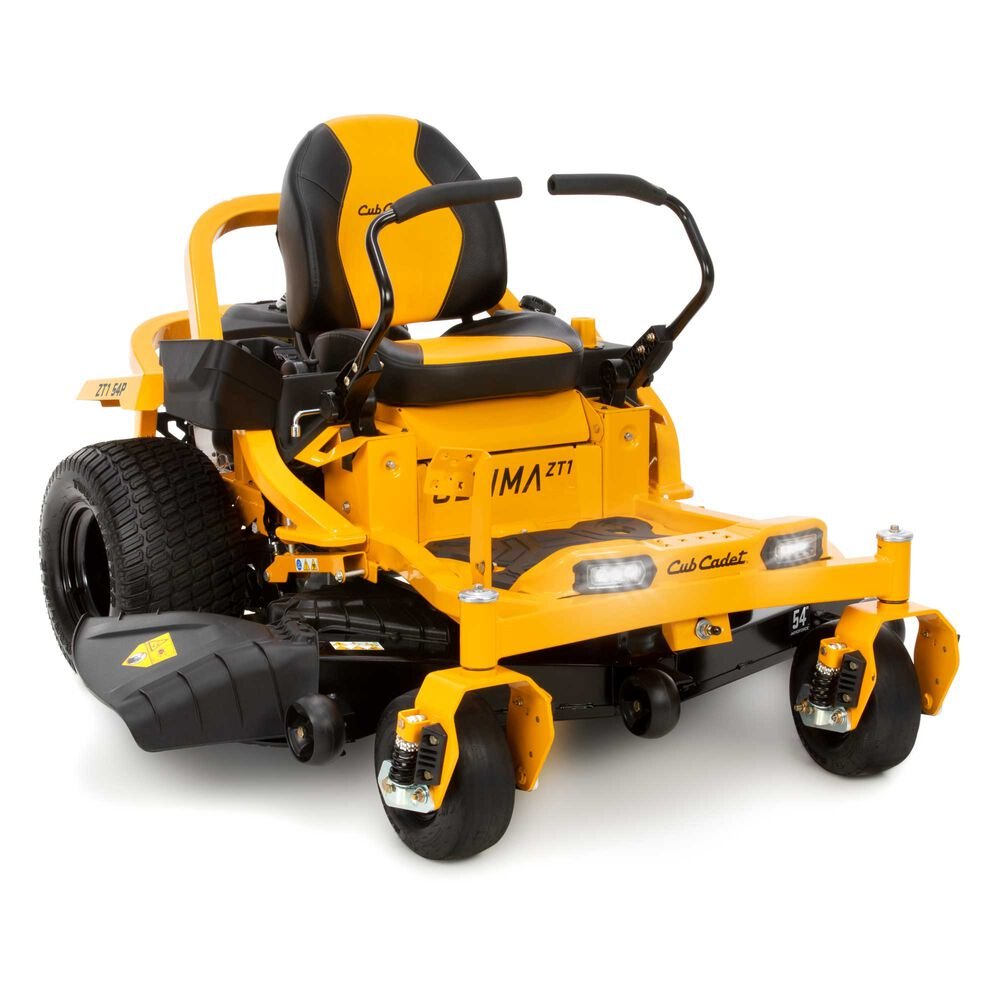

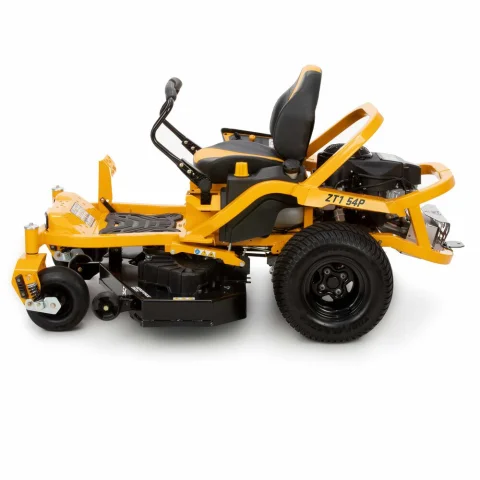

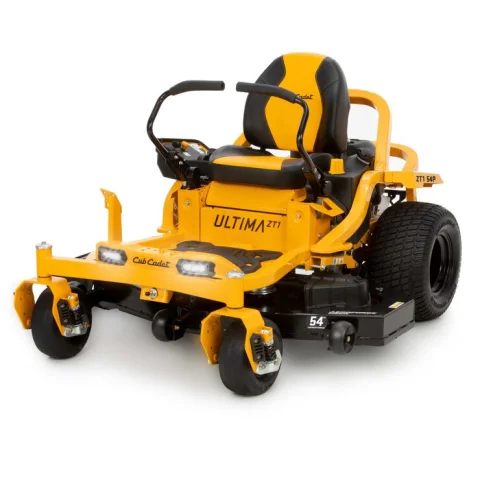

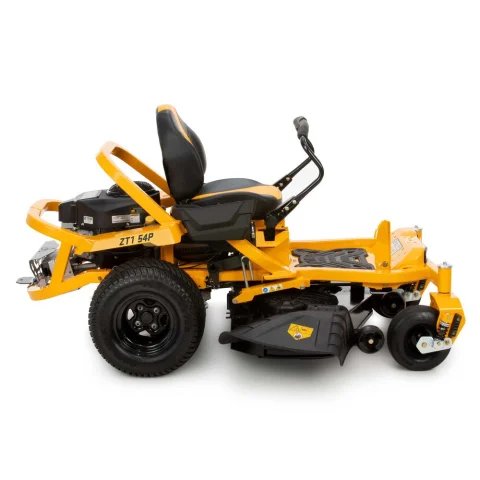

Cub Cadet ULTIMA ZT1 54 KW P 17AIEACMA10 1 / 8

Cub Cadet ULTIMA ZT1 54 KW P 17AIEACMA10

Product number: 17AIEACMA10

Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.

Product Brand: Cub CadetProduct Type: Non-Current Models

Have Questions?

Our experts are here to answer your questions.

Contact Us+1 404-301-0719

Product Description

ZT1 54 KW P

Specifications

General

Product Number:
17AIEACMA10
Brand:
Cub Cadet
Product Type:
Non-Current Models

Engine

Engine Brand:
Kawasaki®
Engine Model:
FR Series
Engine Model Number:
691V-GS05
Engine Displacement:
726cc
Engine Output:
23HP
Starter Type:
Electric
Fuel Tank Capacity:
3.5 gal. US (13.25 L)
Cylinders:
Twin
Engine Start:
Ignition Key
Engine Oil:
Capacity 2.1 qt US ( 2 L)
Lubrication:
Fully pressurized
Charging System:
12 amp regulated
Fuel Gauge:
No
Governor:
Mechanical
Choke:
Separate Choke
Air Filter:
Single element
Oil Filter:
Yes
Fuel Delivery:
Carburetor

Battery

Battery:
210 CCA
Battery Type:
AGM (Absorbent Glass Mat)
Battery Voltage:
12V

Drive System

Transmission:
Hydro-Gear EZT 2200
Forward Speed:
7 MPH / 11.3 km/h
Reverse Speed:
3.5 MPH / 5.6 km/h
Drive System:
Hydrostatic

Cutting Deck

Deck Cutting Width:
54 in
Deck Wash:
No
Deck Material:
11-gauge steel
Deck Engagement (PTO):
Electric
Deck Construction:
Fabricated
Blade(s):
3
Deck Lift:
Foot pedal with Dial Adjust
Cutting Height Range:
1'' - 4.5''
Anti-Scalping:
3 gauge wheels
Deck Positions:
15

Warranty

Warranty:
3-year unlimited hours
Frame Warranty:
Lifetime Limited
Deck Shell Warranty:
Lifetime limited
Commercial Warranty:
No

Chassis

Frame:
2'' x 2'' tubular steel
Turning Radius:
0°
ROPS:
No
Rear Tow Hitch:
Yes
Corrosion Protection:
Yes

Controls

Cruise Control:
No
Brakes:
Disc
Steering Control:
Lap Bars

Comfort

Seat Type:
20" high back
Armrests:
No
Seat Adjustment:
Knob
Front Caster Suspension:
Yes

Wheels

Rear Tires:
20''x 12''- 8''
Front Tires:
11"x 6"-5"
Tire Tread:
Turf Master / Multi Trac

Additional Specifications

Hour Meter:
Available separately
Mulch Kit:
Available separately
Headlight(s):
Dual-LED
Cup Holder:
Yes
Operator Presence System:
Yes
Parking Brake:
Lap Bar Integrated
Model Number:
17AIEACMA10

Maintenance Parts

Air Filter:
KM-11013-0752 OR 490-200-C022
Oil Filter:
KM-49065-0721
Engine Oil:
490-000-C044
Fuel Filter:
KM-49019-0027 OR 490-240-0001
Spark Plug:
KM-BPR4ES

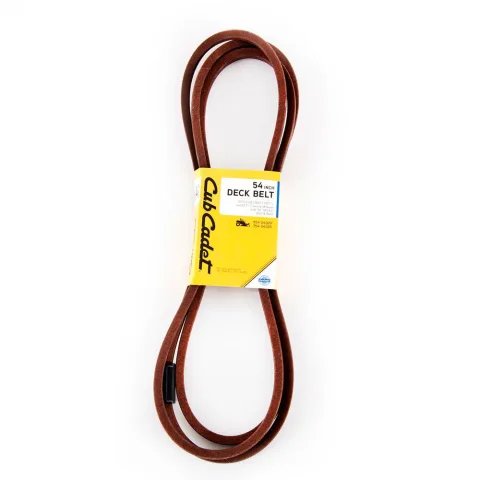

Deck Belt:
954-04329A OR 490-501-C067
Drive Belt:
954-04317A OR 490-501-C069
Blades:
742P05086 OR 490-110-C194
Xtreme Blade:
742P05086-X OR SET 490-110-C205
Ignition Key:
925-1745A
Hour Meter:
490-900-C075

Key Features

  • A premium 23 HP/726cc Kawasaki FR691V twin-cylinder OHV engine, commercial-grade power that meets your yard's toughest demands

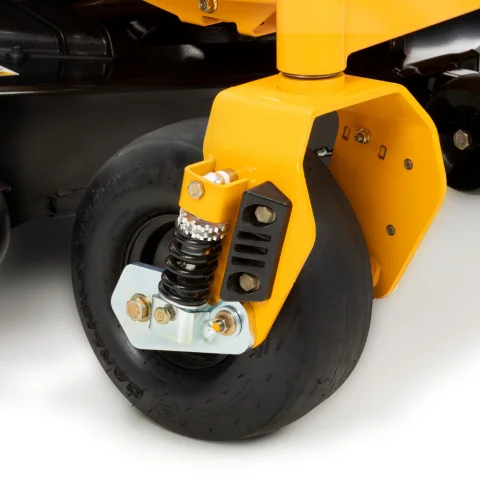

  • Equipped with additional high-performance features like front caster suspension, steel fenders and larger rear wheels help you power through challenging terrain with greater comfort.
  • Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish

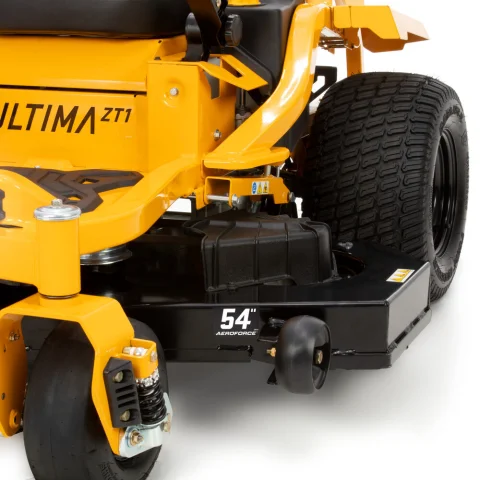

  • 54-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.

Product Manuals

No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
