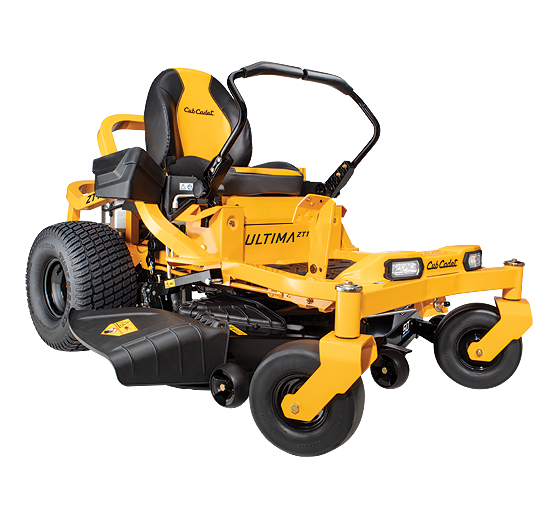

Cub Cadet ULTIMA ZT1 50 KW 17AIEACLA10 1 / 5

Cub Cadet ULTIMA ZT1 50 KW 17AIEACLA10

Product number: 17AIEACLA10

$3,449.00 $3,949.00

Special Online Price!

In Stock

Product Brand: Cub CadetProduct Type: Zero-Turn

Have Questions?

Our experts are here to answer your questions.

Contact Us+1 404-301-0719

Store pickup and delivery available — choose at checkout.

Product Description

WHILE SUPPLIES LAST



ZT1 50 KW

Specifications

General

Product Number:
17AIEACLA10
Brand:
Cub Cadet
Product Type:
Zero-Turn

Engine

Engine Brand:
Kawasaki®
Engine Model:
FR Series
Engine Model Number:
691V
Engine Displacement:
726cc
Engine Output:
23HP
Starter Type:
Electric
Fuel Tank Capacity:
3.5 gal. US (13.25 L)
Cylinders:
Twin
Engine Start:
Ignition Key
Engine Oil:
Capacity 2.1 qt US ( 2 L)
Lubrication:
Fully pressurized
Charging System:
12 amp regulated
Fuel Gauge:
No
Governor:
Mechanical
Choke:
Separate Choke
Air Filter:
Single element
Oil Filter:
Yes
Fuel Delivery:
Carburetor

Battery

Battery:
210 CCA
Battery Type:
AGM (Absorbent Glass Mat)
Battery Voltage:
12V

Drive System

Transmission:
Hydro-Gear EZT 2200
Forward Speed:
7 MPH / 11.3 km/h
Reverse Speed:
3.5 MPH / 5.6 km/h
Drive System:
Hydrostatic

Cutting Deck

Deck Cutting Width:
50 in
Deck Wash:
No
Deck Material:
11-gauge steel
Deck Engagement (PTO):
Electric
Deck Construction:
Fabricated
Blade(s):
3
Deck Lift:
Foot pedal with Dial Adjust
Cutting Height Range:
1'' - 4.5''
Anti-Scalping:
3 gauge wheels
Deck Positions:
15

Warranty

Warranty:
3-year unlimited hours
Frame Warranty:
Lifetime Limited
Deck Shell Warranty:
Lifetime limited
Commercial Warranty:
No

Chassis

Frame:
2'' x 2'' tubular steel
Turning Radius:
0°
ROPS:
No
Rear Tow Hitch:
Yes
Corrosion Protection:
Yes

Controls

Cruise Control:
No
Brakes:
Disc
Steering Control:
Lap Bars

Comfort

Seat Type:
20" high back
Armrests:
No
Seat Adjustment:
Knob

Wheels

Rear Tires:
20''x 10''- 8''
Front Tires:
11"x 6"-5"
Tire Tread:
Turf Master / Multi Trac

Additional Specifications

Hour Meter:
No
Mulch Kit:
Available separately
Headlight(s):
Dual-LED
Cup Holder:
Yes
Operator Presence System:
Yes
Parking Brake:
Lap Bar Integrated
Model Number:
17AIEACLA10

Maintenance Parts

Air Filter:
KM-11013-0752 OR 490-200-C022
Oil Filter:
KM-49065-0721
Engine Oil:
490-000-C044
Fuel Filter:
KM-49019-0027 OR 490-240-0001
Spark Plug:
KM-BPR4ES
Deck Belt:
954-05078 OR 490-501-C070
Drive Belt:
954-04317A OR 490-501-C069
Blades:
742P05094 OR SET 490-110-C193
Xtreme Blade:
742P05094-X OR SET 490-110-C204
Ignition Key:
925-1745A
Hour Meter:
490-900-C075

Key Features

  • A premium 23 HP/726cc Kawasaki FR691V twin-cylinder OHV engine, commercial-grade power that meets your yard's toughest demands
  • Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
  • 50-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
