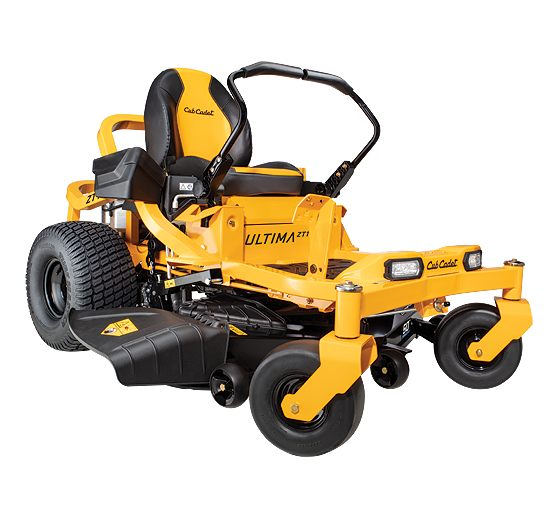

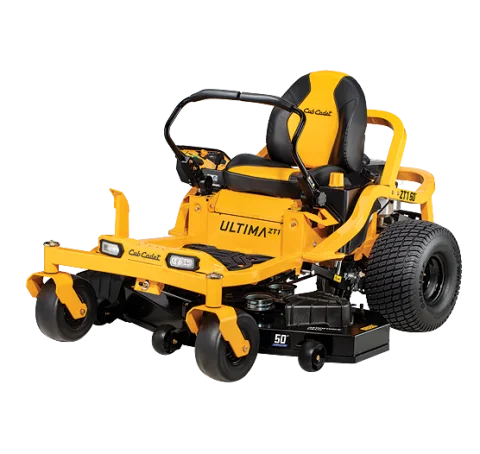

1 / 2 Cub Cadet ULTIMA ZT1 50 17AIEACZ010
Product number: 17AIEACZ010
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Specifications
General
- Product Number:
- 17AIEACZ010
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Engine
- Engine Brand:
- Kawasaki®
- Engine Model:
- FR691V-ES05
- Engine Displacement:
- 726cc
- Engine Output:
- 23 HP
- Fuel Tank Capacity:
- 3.5 Gallon fuel tank capacity
Drive System
- Transmission:
- Dual Hydro-Gear™ EZT-2200™
- Forward Speed:
- 7 mph
- Reverse Speed:
- 3.5 mph
Cutting Deck
- Deck Cutting Width:
- 50"
- Deck Wash:
- SmartJet deck wash system
- Deck Material:
- 11-gauge fabricated steel
- Deck Engagement (PTO):
- Electronic fingertip blade engagement
- Spindle Construction:
- Sealed cast aluminum housing (maintenance-free)
- Blade(s):
- 3
- Cutting Height Range:
- 1'' - 4.5''
- Deck Positions:
- Foot pedal with spring assist creates the perfect cut | 15 Positions
Chassis
- Frame:
- High-strength, continuous square 2'' x 2'' tubular steel frame with fully E-Coat lower frame and Triple Guard Corrosion Defense System™ protects against wear and tear.
- Front Axle(s):
- Fixed 2" x 2.5" fully welded tubular steel axle (e-coated) / 1/4" steel yokes provide greater durability
- Turning Radius:
- Zero degrees
- Front Tires:
- 11"x 6"-5" smooth tread front wheels pivot 180 degrees without turf damage
- Rear Tires:
- 20”x8”-8" Turf Master premium rear tires offer excellent traction, minimize turfing and provide a better ride on uneven ground at higher speeds
- Bumper:
- 2" x 2" Tubular steel bumper
- Rear Tow Hitch:
- Standard
Controls
- Handle:
- 3- way adjustable ergonomic lap bar
- Brakes:
- Integrated parking brake system in lap bars for ease of use
- Steering Control:
- 3-way adjustable ergonomic lap bar
- Headlight(s):
- Illuminating Dual-LED Headlights
- Mow in Reverse:
- Standard
Comfort
- Seat Type:
- Automotive-inspired, ergonomic, fully adjustable premium 18'' high-back seat
- Seat Suspension:
- Durable, advanced polymer seat suspension system optimizes comfort while reducing operators fatigue
Dimensions
- Dimensions:
- L/W/H 80'' x 61'' x 47''
- Weight (approx.):
- 585 lbs.
Additional Specifications
- Model Number:
- 17RIEACZ010, 17AIEACZ010
Warranty
- Warranty:
- 3-year / unlimited-hour warranty
- Frame Warranty:
- Limited lifetime warranty on frame and fabricated deck shell.
Maintenance Parts
- Air Filter:
- KM-11013-0752
- Oil Filter:
- KM-49065-0721
- Fuel Filter:
- KM-49019-0027
- Spark Plug:
- KM-BPR4ES
- Deck Belt:
- 954-05078
- Drive Belt:
- 754P05874
- Blades:
- 942-05052A
- Xtreme Blade:
- 942-05052-X
- Ignition Key:
- 925-1745A
Key Features
- 23 HP Kawasaki® FR691V series Twin-cylinder engine
- An open frame design and hinged/removable floor pan allows easy access to the deck and engine for quick & ease of maintenance
- Ideal for mowing slight rolling hills and several obstacles up to 4 acres
- Adjustable lap bars with Industry-exclusive overmold soft-touch ergonomic hand grips optimized for comfort
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
