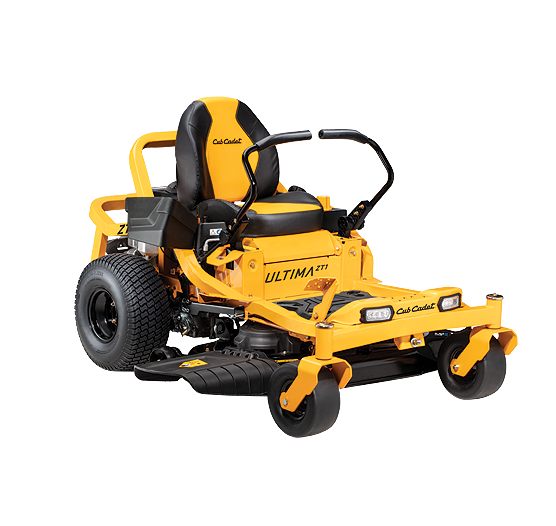

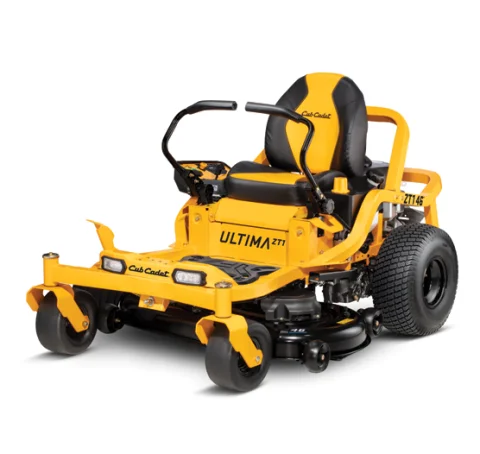

CUB CADET ULTIMA ZT1 46 FAB 17TREACN010 1 / 2

CUB CADET ULTIMA ZT1 46 FAB 17TREACN010

Product number: 17TREACN010

Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.

Product Brand: Cub CadetProduct Type: Non-Current Models

Have Questions?

Our experts are here to answer your questions.

Contact Us+1 404-301-0719

Product Description

ZT1 46

Specifications

General

Product Number:
17TREACN010
Brand:
Cub Cadet
Product Type:
Non-Current Models

Engine

Engine Brand:
Kohler®
Engine Model:
7000 Series
Engine Model Number:
KT725
Engine Displacement:
725cc
Engine Output:
22HP
Starter Type:
Electric
Fuel Tank Capacity:
3.5 gal. US (13.25 L)
Cylinders:
Twin
Engine Start:
Ignition Key
Engine Oil Capacity:
2.0 qt. US (1.89 L)
Lubrication:
Fully pressurized
Charging System:
12 amp regulated
Fuel Gauge:
No
Governor:
Mechanical
Choke:
Choke-a-matic
Air Filter:
Dual element
Oil Filter:
Yes
Fuel Delivery:
Carburetor

Battery

Battery:
210 CCA
Battery Type:
AGM (Absorbent Glass Mat)
Battery Voltage:
12V

Drive System

Transmission:
Hydro-Gear EZT 2200
Forward Speed:
7 MPH / 11.3 km/h
Reverse Speed:
3.5 MPH / 5.6 km/h
Drive System:
Hydrostatic

Cutting Deck

Deck Cutting Width:
46 in
Deck Wash:
No
Deck Material:
11-gauge steel
Deck Engagement (PTO):
Electric
Deck Construction:
Fabricated
Blade(s):
2
Deck Lift:
Foot pedal with Dial Adjust
Cutting Height Range:
1'' - 4.5''
Anti-Scalping:
2 gauge wheels
Deck Positions:
15

Warranty

Warranty:
3-year unlimited hours
Frame Warranty:
Lifetime Limited
Deck Shell Warranty:
Lifetime limited
Commercial Warranty:
No

Chassis

Frame:
2'' x 2'' tubular steel
Turning Radius:
0°
ROPS:
No
Rear Tow Hitch:
Yes
Corrosion Protection:
Yes

Controls

Cruise Control:
No
Brakes:
Disc
Steering Control:
Lap Bars

Comfort

Seat Type:
20" high back
Armrests:
No
Seat Adjustment:
Knob

Wheels

Rear Tires:
20”x 8”-8"
Front Tires:
11"x 6"-5"
Tire Tread:
Turf Master / Multi Trac

Additional Specifications

Hour Meter:
No 490-900-C075
Mulch Kit:
Available separately
Headlight(s):
Dual-LED
Cup Holder:
Yes
Operator Presence System:
Yes
Parking Brake:
Lap Bar Integrated
Model Number:
17AREACNA10, 17TREACN010

Maintenance Parts

Air Filter:
32 883 09-S1 OR 490-200-K054
Oil Filter:
12 050 01-S
Fuel Filter:
25 050 22-S1
Spark Plug:
25 132 23-S OR RC12YC
Deck Belt:
754P06135 OR 490-501-C082
Drive Belt:
954-04317A
Blades:
742P05510 OR SET 490-110-C192
Xtreme Blades:
742P05510-X OR SET 490-110-C203
Ignition Key:
925-1745A
Hour Meter Kit:
490-900-C075

Key Features

  • 725cc Kohler Twin-Cylinder Engine
  • Ideal for mowing slight rolling hills and several obstacles up to 2 acres
  • Lap bar-controlled dual-hydro transmissions
  • An open frame design and hinged/removable floor pan allows easy access to the deck and engine for quick & ease of maintenance

Product Manuals

No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
