Cub Cadet ULTIMA ZT1 42 17TREACS010 1 / 2

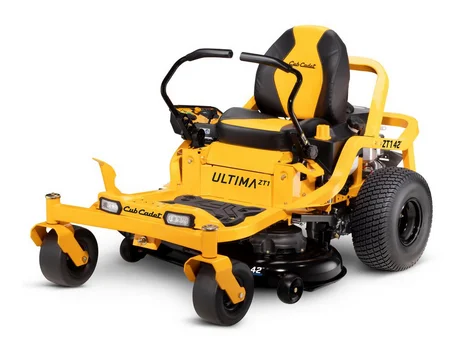

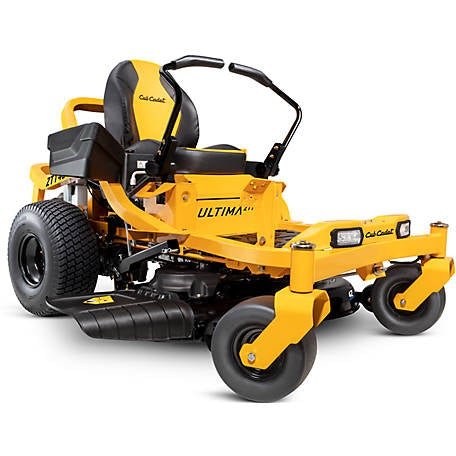

Cub Cadet ULTIMA ZT1 42 17TREACS010

Product number: 17TREACS010

Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.

Product Brand: Cub CadetProduct Type: Non-Current Models

Have Questions?

Our experts are here to answer your questions.

Contact Us+1 404-301-0719

Product Description

FACTORY MODEL: 17TREACS010, 17AREACSA10
ULTIMA ZT1 42

Specifications

General

Product Number:
17TREACS010
Brand:
Cub Cadet
Product Type:
Non-Current Models

Engine

Engine:
Kohler KT725-3083
Engine Displacement:
725cc
Engine Output:
22 HP
Fuel Tank Capacity:
3.5 Gallon fuel tank capacity to keep you mowing and minimize time loss for refueling needs
Battery:
210 cca AGM

Drive System

Transmission:
Dual Hydro-Gear™ EZT-2200™
Forward Speed:
7 mph
Reverse Speed:
3.5 mph

Cutting Deck

Deck Cutting Width:
42"
Deck Wash:
SmartJet deck wash system provides high pressure water that cleans out grass and debris build-up under the deck
Deck Material:
13-gauge stamped steel
Deck Engagement (PTO):
Electronic fingertip blade engagement
Spindle Construction:
Sealed cast aluminum housing (maintenance-free)
Blade(s):
Twin Blades
Cutting Height Range:
1'' - 4.5'' leads to a precise even cut
Deck Positions:
Foot pedal with spring assist creates the perfect cut | 15 Positions

Chassis

Frame:
2'' x 2'' tubular steel frame with fully E-Coat lower frame and Triple Guard Corrosion Defense System™
Front Axle(s):
Fixed 2" x 2.5" fully welded tubular steel axle (e-coated)
Turning Radius:
Zero degrees
Front Tires:
11"x 6"-5"
Rear Tires:
20”x8”-8"
Tire Tread:
Turf Master
Bumper:
2" x 2" Tubular steel bumper
Rear Tow Hitch:
Standard
Corrosion Protection:
Triple Guard Corrosion Defense System™
Yokes:
1/4" steel yokes provide greater durability

Controls

Cruise Control:
N/A
Handle Grip(s):
Ergonomic lap bar
Brakes:
Integrated parking system in lap bars for ease of use
Steering Wheel Control:
3-way adjustable ergonomic lap bar
Headlight(s):
Illuminating Dual-LED Headlights provide ultimate vision for mowing in low light conditions
Mow in Reverse:
Standard

Comfort

Seat Type:
Automotive-inspired, ergonomic, fully adjustable premium 18'' high-back seat
Seat Suspension:
Durable, advanced polymer seat suspension system

Dimensions

Dimensions:
L/W/H 80'' x 54'' x 47''
Weight (approx.):
500 lbs.

Additional Specifications

Mulch Kit:
Optional
Model Number:
17TREACS010 OR 17AREACSA10
Hour Meter:
No

Warranty

Warranty:
3-year / unlimited-hour warranty. limited lifetime warranty on frame. Lifetime limited on deck shell. No commercial warranty

Maintenance Parts

Air Filter:
32 883 09-S1 OR 490-200-K054
Oil Filter:
12 050 01-S
Oil:
490-000-C044
Fuel Filter:
25 050 22-S1
Spark Plug:
25 132 23-S RC12YC
Deck Belt:
754P06134 OR 490-501-C081
Drive Belt:
954-04317A OR 490-501-C069
Blades:
742P05528
Xtreme Blades:
742P05177A-X OR 490-110-C202
Ignition Key:
925-1745A
Hour Meter Kit:
490-900-C075

Key Features

  • A 22 HP/725cc Kohler 7000 twin-cylinder OHV engine delivers high-performance power to tackle your yard
  • Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
  • A continuous square 2 in.: x 2 in. tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process that electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear
  • 42-in. steel cutting deck with smooth arc dual-blades, cut overlap and deep dome deck design provides flawless results, mows a wide area of grass to help reduce cutting time, is rust-resistant and provides your lawn with a clean-cut look
