CUB CADET ULTIMA Z3 54 17RIECE3010 1 / 5

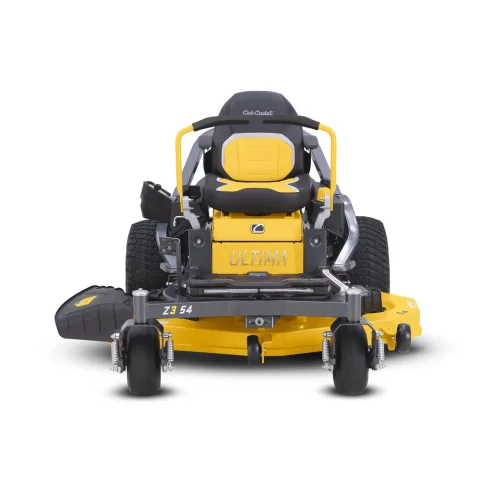

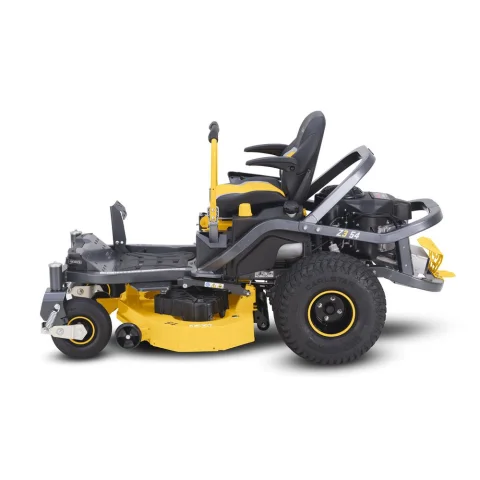

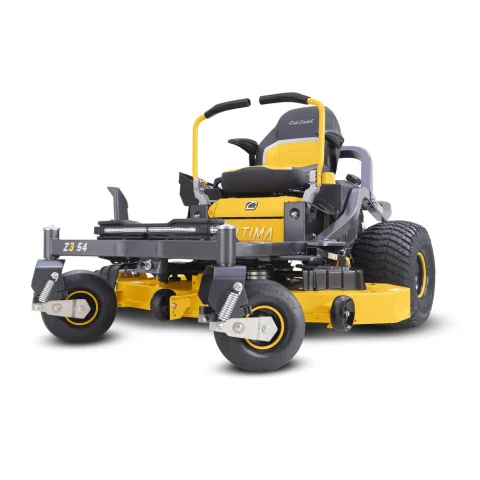

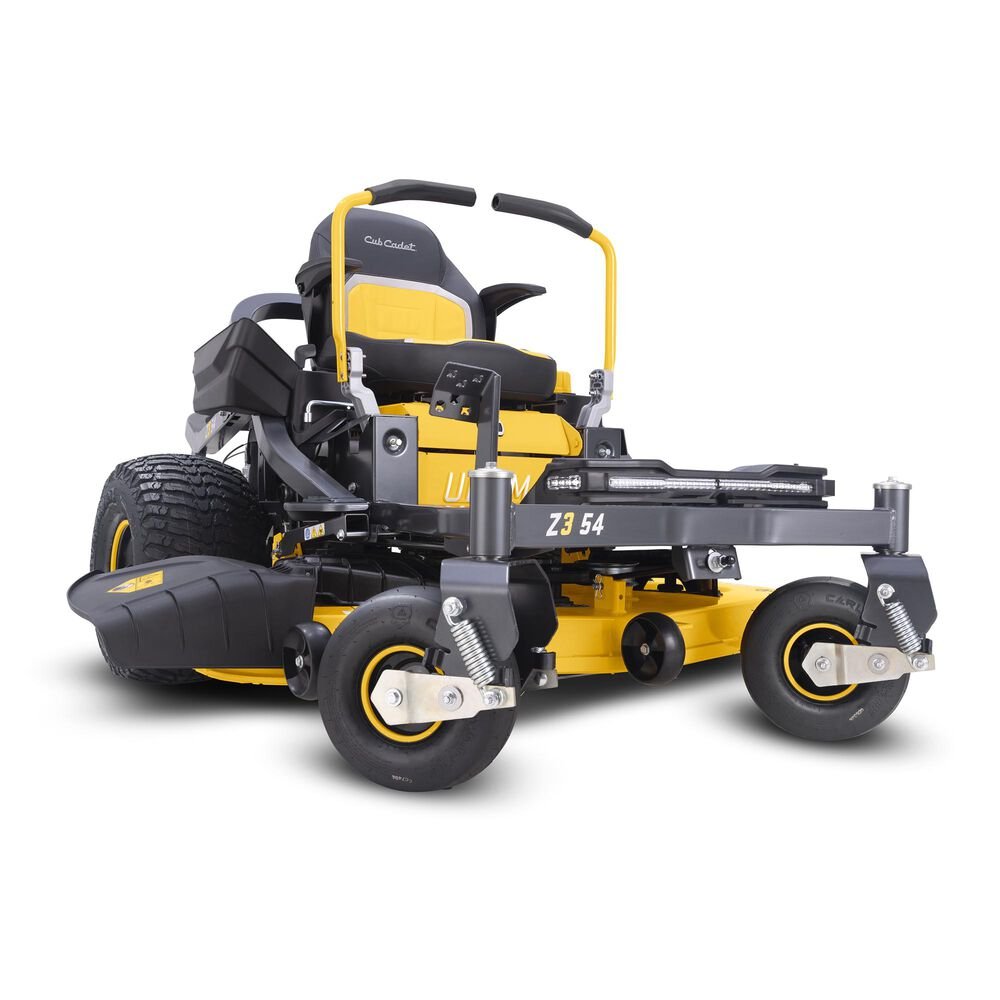

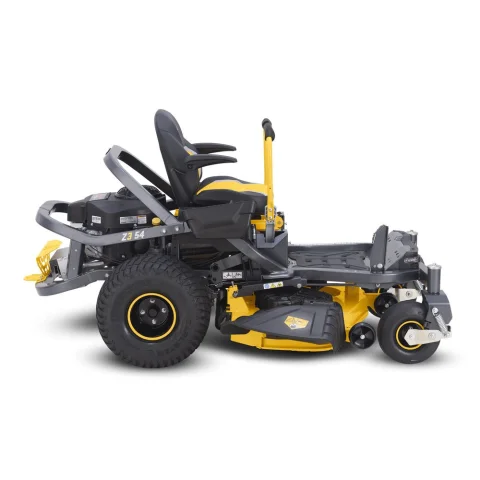

CUB CADET ULTIMA Z3 54 17RIECE3010

Product number: 17RIECE3010

$4,799.00 $5,299.00

Special Online Price!

In Stock

Product Brand: Cub CadetProduct Type: Zero-Turn

Have Questions?

Our experts are here to answer your questions.

Contact Us+1 404-301-0719

Store pickup and delivery available — choose at checkout.

Product Description

Z3 54


The Ultimate Mowing Experience is about to step up with enhanced comfort and performance designed to deliver the proven results you expect from the Ultima Series™. The Cub Cadet® Ultima Series Z3 54 54-in. 24 HP*/726cc Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck delivers uncompromised performance, durable strength, and proven results needed to tackle hills and slopes up to 15-degrees. Work in comfort with a high back seat and save time mowing with an Ultima Series™ zero-turn, 25% faster than a tractor**

Specifications

General

Product Number:
17RIECE3010
Brand:
Cub Cadet
Product Type:
Zero-Turn

Engine

Engine Brand:
Kawasaki®
Engine Model:
FR Series
Engine Model Number:
730V
Engine Displacement:
726cc
Engine Output:
24HP
Starter Type:
Electric
Fuel Tank Capacity:
3.5 gal. US (13.25 L)
Cylinders:
Twin
Engine Start:
Ignition Key
Engine Oil Capacity:
2.1qt. US (1.89 L)
Lubrication:
Fully pressurized
Charging System:
12 amp regulated
Fuel Gauge:
No
Governor:
Mechanical
Choke:
Separate Choke
Air Filter:
Dual element
Oil Filter:
Yes
Fuel Delivery:
Carburetor

Battery

Battery:
230 CCA
Battery Type:
Lead Acid
Battery Voltage:
12V

Drive System

Transmission:
Tuff Torq TZ 350
Forward Speed:
7 MPH / 11.3 km/h
Reverse Speed:
3.5 MPH / 5.6 km/h
Drive System:
Hydrostatic

Cutting Deck

Deck Cutting Width:
54 in
Deck Wash:
No
Deck Material:
11-gauge steel
Deck Engagement (PTO):
Electric
Deck Construction:
Fabricated
Blade(s):
3
Deck Lift:
Foot pedal with Dial Adjust
Cutting Height Range:
1'' - 4.5''
Anti-Scalping:
2 gauge wheels
Deck Positions:
15

Warranty

Residential Warranty:
3-year unlimited hours
Frame Warranty:
Lifetime Limited
Deck Shell Warranty:
Lifetime limited
Commercial Warranty:
No

Chassis

Frame:
2'' x 2'' tubular steel
Turning Radius:
0°
ROPS:
No
Rear Tow Hitch:
Yes
Corrosion Protection:
Yes

Controls

Cruise Control:
No
Brakes:
Disc
Steering Control:
Steering Wheel

Comfort

Seat Type:
20" Cut-and-Sew with Head Bolster
Armrests:
No
Seat Adjustment:
Knob
Front Caster Suspension:
No

Wheels

Rear Tires:
20”x 12”-8"
Front Tires:
11"x 6.0"-5"
Tire Tread:
Turf Armor

Additional Specifications

Hour Meter:
Yes
Mulch Kit:
Available separately
Headlight(s):
LED
Cup Holder:
Yes
Operator Presence System:
Yes
Parking Brake:
Hand lever
Model Number:
17RIECE2010

Maintenance Parts

Air Filter:
KM-11013-0752 OR 490-200-F022
Oil Filter:
KM-49065-0736
Fuel Filter:
KM-49019-0031
Spark Plug:
KM-BPR4ES
Deck Belt:
954-04329A
Drive Belt:
954-04317A OR 490-501-C069
Blades:
742P05086
Xtreme Blades:
742P05086-X
Ignition Key:
925-1745A

Key Features

  • The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable 24 HP*/726cc Kawasaki® Engine built to meet fierce demands.
  • A 11-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
  • Protect against wear and tear while being the envy of your neighborhood with a continuous, 2x2 tubular steel frame designed to withstand heavy loads and provide stability on rough, uneven terrain.
