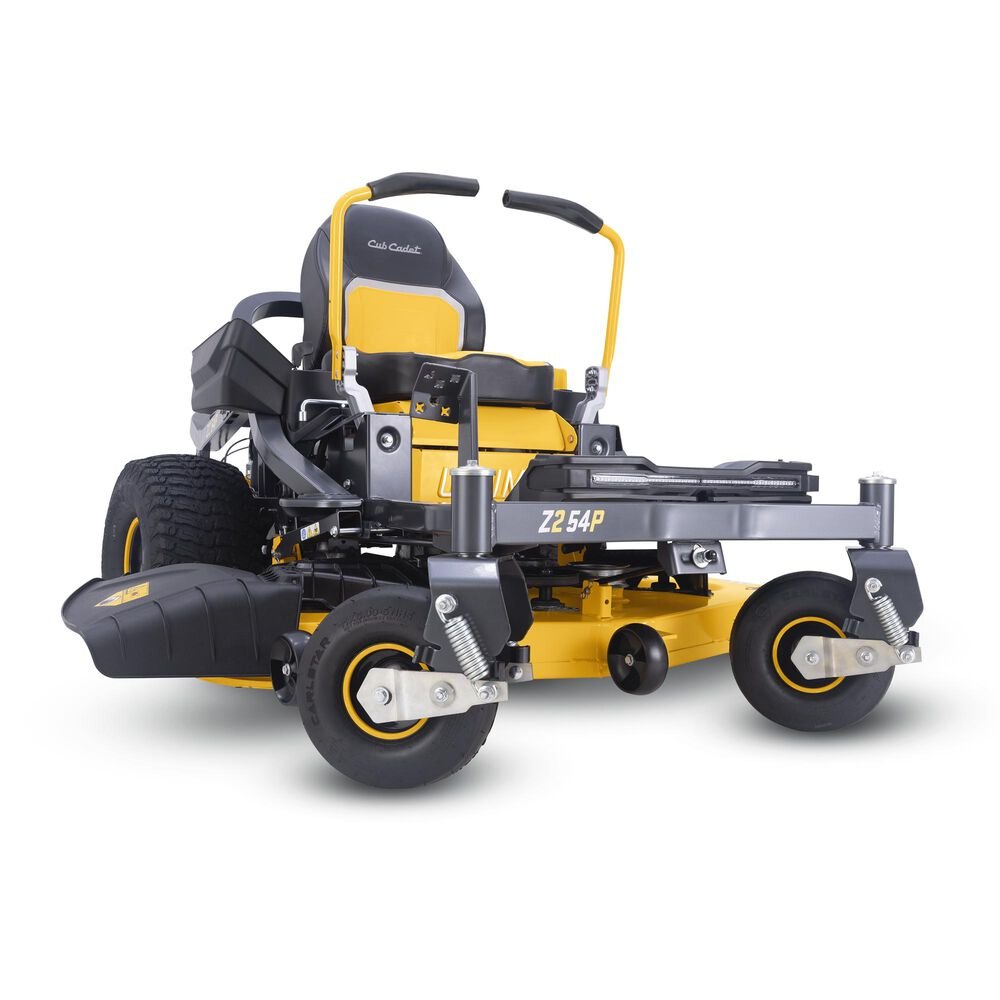

Cub Cadet Ultima Z2 54P 1 / 6

Cub Cadet Ultima Z2 54P

Product number: 17YIEAEM010

$3,499.00 $4,199.00

Special Online Price!

In Stock

Product Brand: Cub CadetProduct Type: Zero-Turn

Reconstructed from the authoritative Mowers catalog reference. Product media and additional details remain admin-manageable.

Have Questions?

Our experts are here to answer your questions.

Contact Us+1 404-301-0719

Store pickup and delivery available — choose at checkout.

Product Description

Z2 54P

The Cub Cadet® Ultima Series Z2 54P 54-in. 23 HP*/726cc Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck is designed to deliver uncompromised performance, durable strength, and proven results. Built with premium comfort features engineered to provide the ultimate mowing experience this mower helps you tackle hills and slopes up to 15-degrees. Save time mowing with an Ultima Series™ zero-turn, 25% faster than a tractor**

Specifications

General

Product Number:
17YIEAEM010
Brand:
Cub Cadet
Product Type:
Zero-Turn

Engine

Engine Brand:
Kawasaki®
Engine Model:
FR Series
Engine Model Number:
691V
Engine Displacement:
726cc
Engine Output:
23 HP
Starter Type:
Electric
Fuel Tank Capacity:
3.5 gal. US (13.25 L)
Cylinders:
Twin
Engine Start:
Ignition Key
Engine Oil Capacity:
2.1 qts. US
Lubrication:
Fully pressurized
Charging System:
12 amp regulated
Fuel Gauge:
No
Governor:
Mechanical
Choke:
Separate Choke
Air Filter:
Single element
Oil Filter:
Yes
Fuel Delivery:
Carburetor

Battery

Battery:
230 CCA
Battery Type:
Lead Acid
Battery Voltage:
12V

Drive System

Transmission:
Hydro-Gear EZT 2200
Forward Speed:
7 MPH / 11.3 km/h
Reverse Speed:
3.5 MPH / 5.6 km/h
Drive System:
Hydrostatic

Cutting Deck

Deck Cutting Width:
54 in
Deck Wash:
No
Deck Material:
11-gauge steel
Deck Engagement (PTO):
Electric
Deck Construction:
Fabricated
Blade(s):
Three
Deck Lift:
Foot pedal with Dial Adjust
Cutting Height Range:
1'' - 4.5''
Anti-Scalping:
Two gauge wheels
Deck Positions:
15

Warranty

Residential Warranty:
3-year unlimited hours
Frame Warranty:
Lifetime Limited
Deck Shell Warranty:
Lifetime Limited

Chassis

Frame:
2'' x 2'' tubular steel
Turning Radius:
0°
ROPS:
No
Rear Tow Hitch:
Yes
Corrosion Protection:
Yes

Controls

Cruise Control:
No
Steering Control:
Lap Bars
Handle Grip(s):
Ergonomic Overmolded Soft Touch
Brakes:
Disc

Comfort

Seat Type:
20" Cut-and-Sew with Head Bolster
Armrests:
No
Seat Adjustment:
Knob

Wheels

Rear Tires:
20”x 10”-8"
Front Tires:
11"x 6"-5"
Tire Tread:
Turf Armor

Additional Specifications

Hour Meter:
Yes
Headlight(s):
LED Lightbar
Cup Holder:
Yes
Operator Presence System:
Yes
Parking Brake:
Lap Bar Integrated
Model Number:
17YIEAEM010

Maintenance Parts

Air Filter:
KM-11013-0752
Oil Filter:
KM-49065-0736
Fuel Filter:
KM-49019-0031
Spark Plug:
KM-BPR4ES

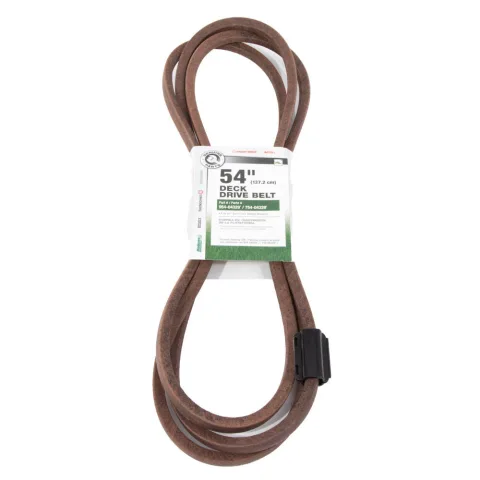

Deck Belt:
954-04329A
Drive Belt:
954-04317A OR 490-501-C069

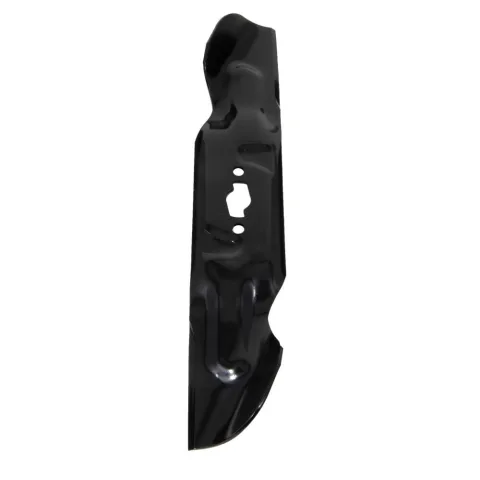

Blades:
742P05086
Xtreme Blades:
742P05086-X
Ignition Key:
925-1745A

Key Features

  • The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable 23 HP*/726cc Kawasaki® Engine.
  • An AeroForce™ welded, heavy-duty fabricated deck delivers a signature cut with few clumps and stragglers, fine clippings and evenness.
  • Protect against wear and tear while being the envy of your neighborhood with a continuous, 2x2 tubular steel frame designed to withstand heavy loads and provide stability on rough, uneven terrain
  • Mow comfortably with 20 in. high back, luxury seat bolstered using custom foam designed to minimize vibration.
