CUB CADET ULTIMA Z2 42S 17CIGBYEA10 1 / 5

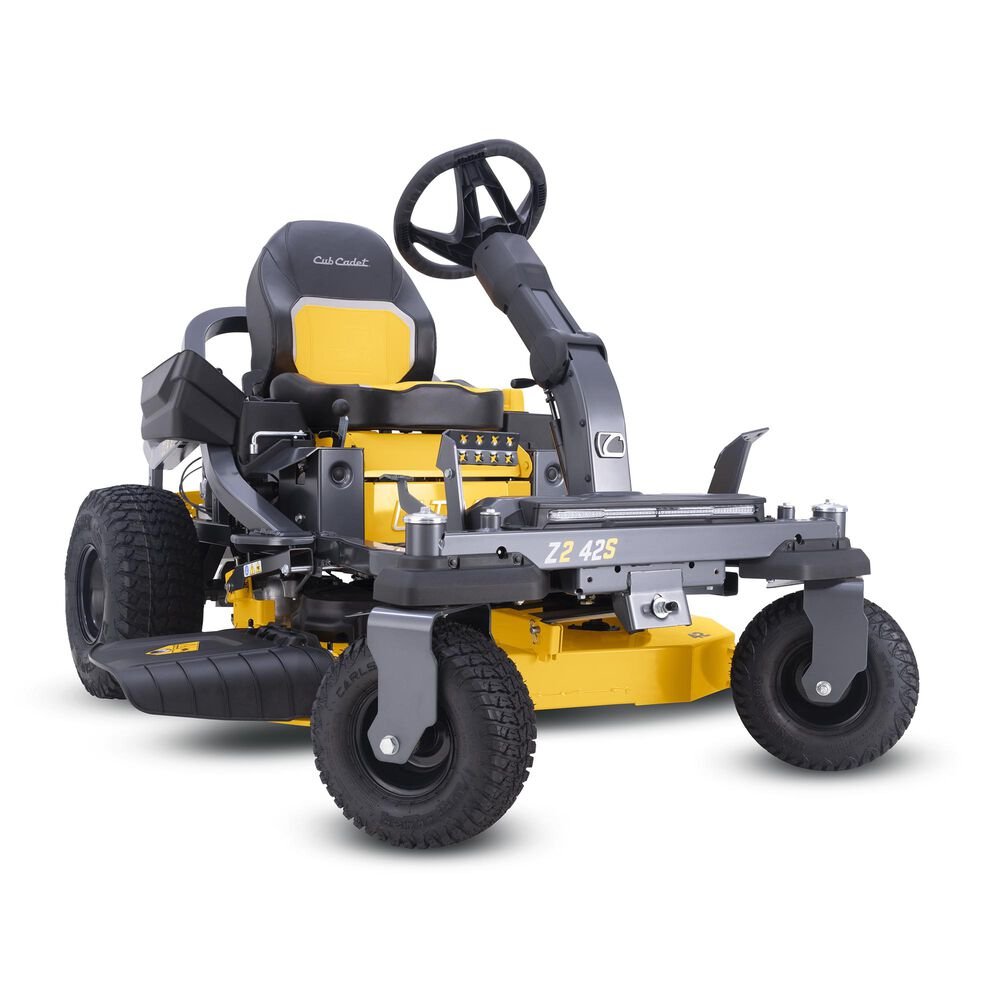

CUB CADET ULTIMA Z2 42S 17CIGBYEA10

Product number: 17CIGBYEA10

$4,599.00 $5,099.00

Special Online Price!

In Stock

Product Brand: Cub CadetProduct Type: Zero-Turn

Have Questions?

Our experts are here to answer your questions.

Contact Us+1 404-301-0719

Store pickup and delivery available — choose at checkout.

Product Description

Z2 42S

Step up to the advanced Ultima Series™, the Cub Cadet® Ultima Series Z2 42S 21.5 HP*/726cc Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck and Synchro-Steer™ Technology is engineered for precision, control, and stability on challenging terrain. Don’t back down from hills and slopes up to 20-degrees. Synchro-Steer™ technology offers 4-wheel control and provides stability for straight-line mowing on hillsides and slopes up to 20-degrees**. Experience uncompromised performance and durable strength, designed to help you mow efficiently and maintain control.

Specifications

General

Product Number:
17CIGBYEA10
Brand:
Cub Cadet
Product Type:
Zero-Turn

Engine

Engine Brand:
Kawasaki®
Engine Model:
FR Series
Engine Displacement:
726cc
Engine Output:
21.5HP
Starter Type:
Electric
Fuel Tank Capacity:
3.5 gal. US (13.25 L)
Cylinders:
Twin
Engine Start:
Ignition Key
Engine Oil Capacity:
2.1qt. US (1.89 L)
Lubrication:
Fully pressurized
Charging System:
12 amp regulated
Fuel Gauge:
No
Governor:
Mechanical
Choke:
Separate Choke
Air Filter:
Dual element
Oil Filter:
Yes
Fuel Delivery:
Carburetor

Battery

Battery:
230 CCA
Battery Type:
Lead Acid
Battery Voltage:
12V

Drive System

Transmission:
Hydro-Gear EZT 2200
Forward Speed:
7 MPH / 11.3 km/h
Reverse Speed:
3.5 MPH / 5.6 km/h
Drive System:
Hydrostatic

Cutting Deck

Deck Cutting Width:
42 in
Deck Wash:
No
Deck Material:
11-gauge steel
Deck Engagement (PTO):
Electric
Deck Construction:
Fabricated
Blade(s):
2
Deck Lift:
Foot pedal with Dial Adjust
Cutting Height Range:
1'' - 4.5''
Anti-Scalping:
2 gauge wheels
Deck Positions:
15

Warranty

Residential Warranty:
3-year unlimited hours
Frame Warranty:
Lifetime Limited
Deck Shell Warranty:
Lifetime limited
Commercial Warranty:
No

Chassis

Frame:
2'' x 2'' tubular steel
Turning Radius:
0°
ROPS:
No
Rear Tow Hitch:
Yes
Corrosion Protection:
Yes

Controls

Cruise Control:
No
Brakes:
Disc
Steering Control:
Steering Wheel

Comfort

Seat Type:
20" Cut-and-Sew with Head Bolster
Armrests:
No
Seat Adjustment:
Knob
Front Caster Suspension:
No

Wheels

Rear Tires:
20”x 8”-8"
Front Tires:
13"x 6.5"-6"
Tire Tread:
Turf Armor

Additional Specifications

Hour Meter:
Yes
Mulch Kit:
Available separately
Headlight(s):
LED
Cup Holder:
Yes
Operator Presence System:
Yes
Parking Brake:
Hand lever
Model Number:
17CIGBYEA10

Maintenance Parts

Air Filter:
KM-11013-0752 OR 490-200-F022
Oil Filter:
KM-49065-0736
Fuel Filter:
KM-49019-0031
Spark Plug:
KM-BPR4ES
Deck Belt:
754P06134 OR 490-501-F081
Drive Belt:
954-04317A OR 490-501-C069
Blades:
742-05576-0637
Ignition Key:
925-1745A

Key Features

  • Experience the ultimate in control even when facing slopes and hills up to 20-degrees with Cub Cadet® steering wheel zero-turns equipped with patented Synchro-Steer™ technology.
  • The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable Kawasaki® Engine. A 21.5 HP* Kawasaki® twin-cylinder OHV engine delivers high-performance to tackle your yard.
  • An AeroForce™ welded, heavy-duty fabricated deck delivers a signature cut with few clumps and stragglers, fine clippings and evenness.

Product Manuals

No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
