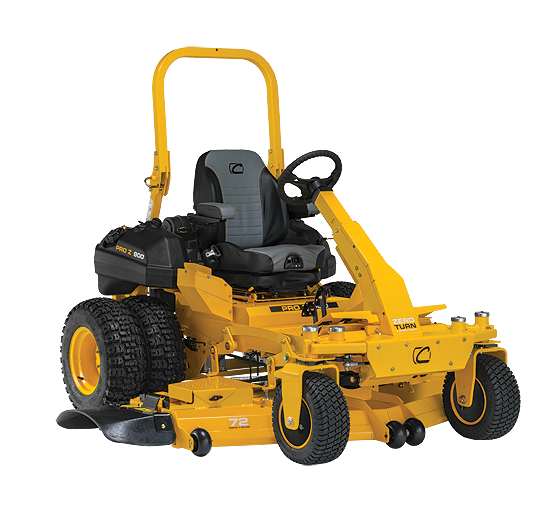

Cub Cadet PRO Z 972 SD KW 53TIHMUY050
Product number: 53TIHMUY050
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Product Description
35 HP Kawasaki FX1000v (999cc) engine and 16cc Parker HTG transmission.
72” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements.
3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty.
Dual rear wheels and weighted front rims for ultimate traction on slopes up to 25-degrees, or 46% grade. 12 volt outlet kit and electronic power deck lift included
MODEL: 53TIHMUY050
Specifications
General
- Product Number:
- 53TIHMUY050
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Specifications
- Steering:
- Multi-position Quick-adjust steering column
- Front Axle / Yokes:
- 2" x 3" solid axle tube with ISO dampening suspension and 1/2" thick steel front yokes
- ROPS:
- 2" x 2" spring-latch tool-less foldable 3 position
- Rear Bumper:
- 5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
- Frame:
- Fully welded, full-length 3/8 x 5" laser cut steel / integrated tie-down slots
- Park Brake / Braking:
- Hand-operated lever with integrated hydro pump release lever
- Seat Type:
- High-back Air-Ride suspension with EVC cushion, padded arm rests, ISO mounted base (lateral suspension),angle back adjust and lumbar support,seat belt
- Rear Tires:
- Dual TERRA TRAC Tread 25" x 9" - 12" (18" trac width)
- Front Tires:
- 16" x 6.5" - 8" (turf) with weighted rim
- Lap Bar / Steering Wheel Control:
- High Performance Steering Wheel with electronic power steering & Foot-pedal Control
- Throttle/PTO/Key Switch:
- HD Low-profile throttle lever, sealed key switch & electronic fingertip engagement pto
- PTO Clutch:
- Warner PTO Clutch (200 ft. lb.) with Soft-Start
- Weight (approx):
- 1850 lbs
- L / W / H with discharge chute UP and ROPs DOWN:
- 88" L x 85" W x 49" H
- Side Construction:
- 5/16"(.313) steel on trim and discharge sides
- Cutting Height:
- 1" - 5"
- Top Reinforcement(s):
- 7ga. (.187") top plate
- Rolled Leading Edge Reinforcement:
- 1/4" (.250") steel
- Spindle Construction:
- 8" sealed cast aluminum housing (maintenance-free)
- Discharge Chute:
- High-density, impact-resistant rubber
- Spindle Covers:
- Steel - Tooless Quick Release
- Deck Blades:
- Triple-blade / High-lift blade (standard) Marbain Blade
- Deck Height Adjustment:
- Foot pedal with spring assist, 16 Positions
- Trim-Side Wear Guard:
- 3/4" Thick UHMW-PE Replaceable Trim-side Wear Guard
- Deck Material:
- fabricated 7ga. (.187”) steel shell
- Deck Size/Type:
- 72" FABRICATED DECK
- Bottom Reinforcement:
- 7ga. (.187") bottom plate
- Anti-Scalping:
- 4 Front HD w/ Bushings & Grease Zerk
- Deck Style/Construction:
- 7ga. top plate.7ga. bottom reinforcement
- Cup Holder:
- Intergrated into Side Pod
- Hour Meter:
- Standard electronic
- Warranty:
- 3 year / no hour limit commercial warranty and 5 year / 1,750 hour limited deck construction warranty
- Engine Type:
- Kawasaki FX1000v
- Horsepower / CC's:
- 35hp - 999cc
- Fuel Capacity:
- Twin 7.45 gal. tanks (14.9 gal. total) with electronic fuel gauge
- Ground Speed:
- Fwd: 12 mph / Rev: 6 mph
- Transmission:
- Parker HTG 16cc pump / 310cc wheel motor
Maintenance Parts
- Air Filter:
- KM-11013-7044
- Pre Filter:
- KM-11013-7045
- Oil Filter:
- KM-49065-0724
- Fuel Filter:
- KM-49019-0027 OR 490-240-0001
- Spark Plug:
- KM-BPR5ES
- Deck Belt:
- 954-04319
- PTO Belt:
- 954-05129
- Drive Belt:
- 954-05037A

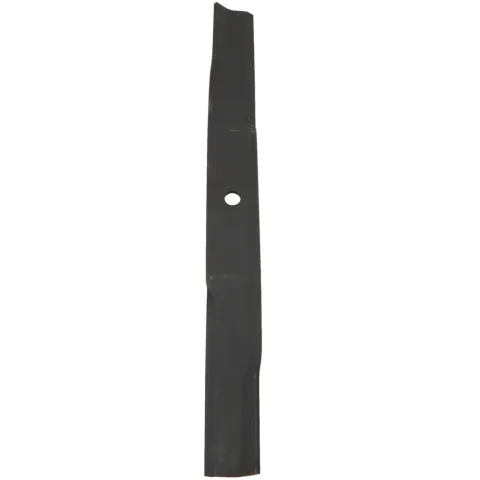

- Blades:
- 942-05179
- Xtreme Blade:
- 742P05179-X
- Ignition Key:
- 925-06908
- Trans Filter:
- PH-411135S
- Trans Fluid:
- 490-000-C051 NEED 96OZ
- Engine Oil:
- 490-000-C044
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
