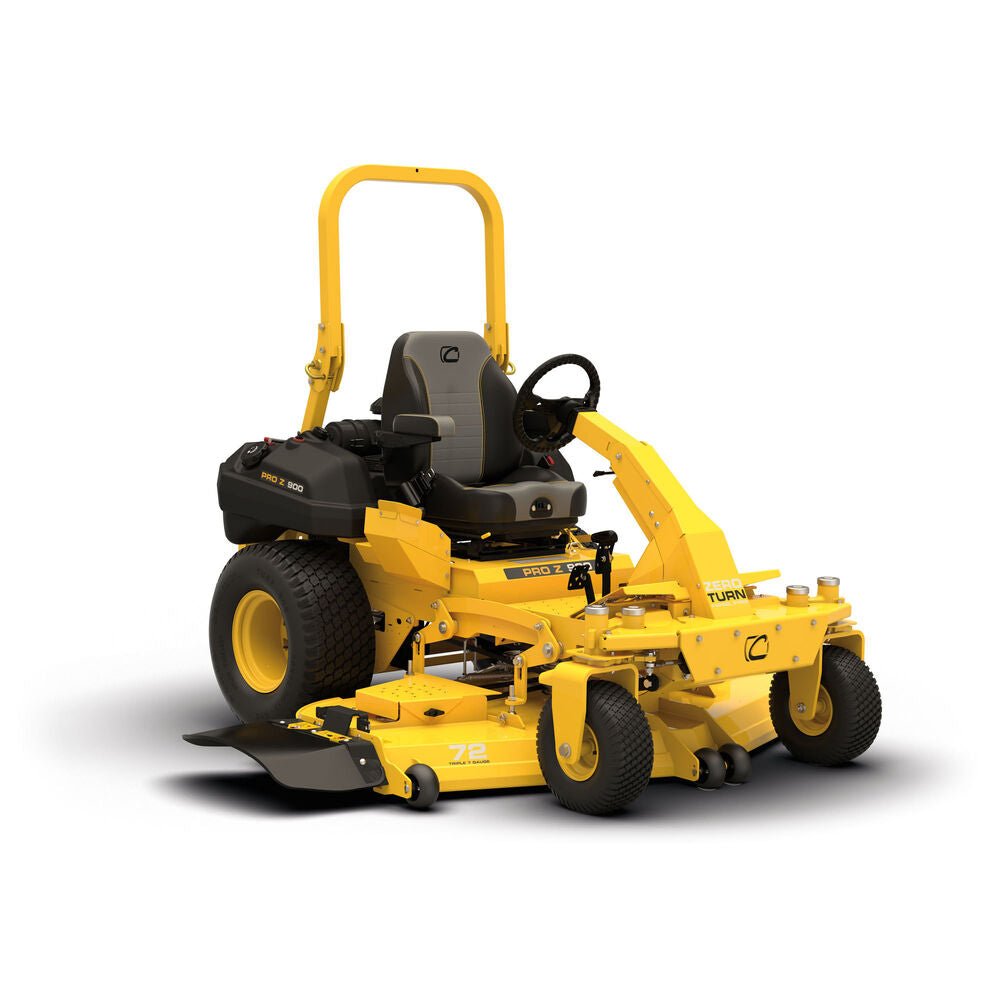

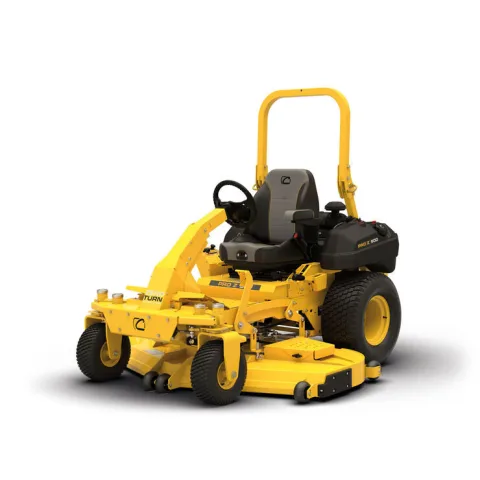

1 / 2 CUB CADET PRO Z 972 S KW 53FIHMUY050
Product number: 53FIHMUY050
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Product Description
PRO Z 972 S KW
Specs & Maintenance
AIR FILTER: KM-11013-7044
PRE-FILTER: KM-11013-7045
OIL FILTER: KM-49065-0724
FUEL FILTER: KM-49019-0027
SPARK PLUG: KM-BPR5ES
PTO BELT: 954-05129
DECK BELT: 954-04319
DRIVE BELT: 954-05037A
TRANS FILTER: PH-411135S
TRANS FLUID: 490-000-C051 NEED 96OZ
BLADES: 942-05179
XTREME BLADES: N/A
IGNITION KEY: 925-06908
ENGINE OIL: 490-000-C044
Specifications
General
- Product Number:
- 53FIHMUY050
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Engine
- Engine Brand:
- Kawasaki®
- Engine Model:
- FX Series
- Engine Model Number:
- 1000V
- Engine Displacement:
- 999cc
- Engine Output:
- 35HP
- Fuel Tank Capacity:
- Dual 7.45 gal. US (28.2 L)
- Cylinders:
- Twin
- Engine Start:
- Ignition Key
- Engine Oil Capacity:
- 2.0 qt. US (1.89 L)
- Lubrication:
- Fully pressurized
- Charging System:
- 15 amp regulated
- Fuel Gauge:
- Electronic
- Choke:
- Separate Choke
- Air Filter:
- High Density
- Oil Filter:
- Yes
- Fuel Delivery:
- Carburetor
Drive System
- Transmission:
- Parker HTG 16cc pump / 310cc wheel motor
- Forward Speed:
- 14 mph / 22.5 km/h
- Reverse Speed:
- 6 mph / 9.5 km/h
Cutting Deck
- Deck Cutting Width:
- 72 in
- Deck Material:
- fabricated 7ga. (.187”) steel shell
- Deck Engagement (PTO):
- electronic fingertip engagement
- Deck Construction:
- 7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge
- Spindle Construction:
- 8" sealed cast aluminum housing (maintenance-free)
- Blade(s):
- Triple-blade / High-lift blade (standard) Marbain Blade
- Cutting Height Range:
- 1” to 5” in 1/4” increments
- Anti-Scalping:
- 4 front deck gauge wheels
- Deck Positions:
- Foot pedal with spring assist 16 Positions
Warranty
- Warranty:
- 3 year / no hour limit commercial warranty and 5 year / 1,750 hour limited deck construction warranty
- Deck Shell Warranty:
- 5 year / 1,750 hour limited deck construction warranty
- Commercial Warranty:
- 3 year / no hour limit commercial warranty
Chassis
- Frame:
- Fully welded, full-length 3/8 x 5" laser cut steel / integrated tie-down slots
- Front Axle:
- 2" x 3" solid axle tube with ISO dampening suspension
- ROPS:
- 2" x 2" spring-latch tool-less foldable 3 position
- Bumper:
- 5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
- Yokes:
- 1/2" thick steel front yokes
Controls
- Cruise Control:
- NA
Comfort
- Seat Type:
- High-back Air-Ride suspension with EVC cushion, seat belt
- Armrests:
- Padded arm rests
- Seat Suspension:
- ISO mounted base (lateral suspension)
- Seat Adjustment:
- Angle back adjust and lumbar support
Wheels
- Rear Tires:
- 26"x12"-12"
- Front Tires:
- 16"x6.5"-8"Kenda K505
- Tire Tread:
- Turf Tread
Dimensions
- Dimensions:
- L/W/H 88" L x 85" W x 52" H
- Weight (approx.):
- 1631 lbs.
Additional Specifications
- Hour Meter:
- Crew Boss
- Discharge Chute:
- High-density, impact-resistant rubber
- Cup Holder:
- Intergrated into Side Pod
- Model Number:
- 53FIHMUY050
Key Features
- 35 HP Kawasaki FX1000v (999cc) engine and 16cc Parker HTG transmission
- 72” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
- 3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
