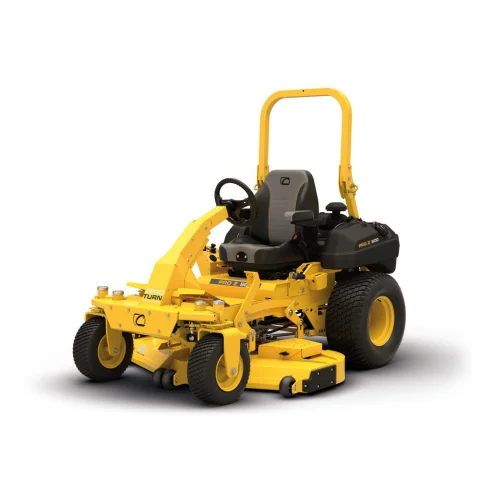

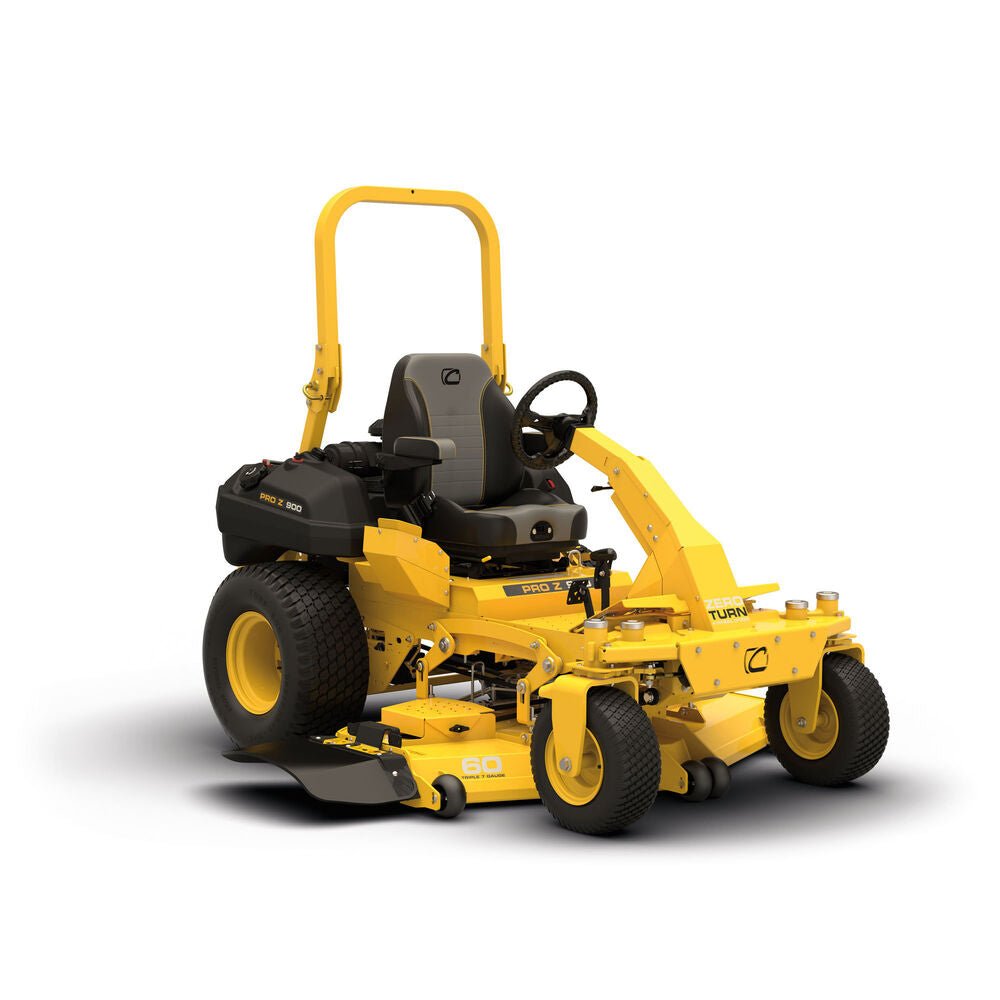

1 / 2 Cub Cadet Pro Z 960 S KW
Product number: 53TIHMUV050
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Specifications
General
- Product Number:
- 53TIHMUV050
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Engine
- Engine Brand:
- Kawasaki
- Engine Model:
- FXT00V-AS19
- Engine Displacement:
- 999cc
- Engine Output:
- 35 HP
- Fuel Tank Capacity:
- Twin 7.45 gal. tanks (14.9 gal. total) with electronic fuel gauge
- Engine oil:
- 2 qts
- Fuel Guage:
- electronic
Drive System
- Transmission:
- Parker HTG 16cc pump / 310cc wheel motor
- Forward Speed;:
- 14 mph
- Reverse Speed:
- 6 mph
Cutting Deck
- Deck Cutting Width:
- 60''
- Deck Material:
- fabricated 7ga. (.187”) steel shell
- Deck Engagement (PTO):
- electronic fingertip engagement pto
- Deck Construction:
- 7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge
- Spindle Construction:
- 8" sealed cast aluminum housing (maintenance-free)
- Blade(s):
- Triple-blade / High-lift blade (standard) Marbain Blade
- Cutting Height Range:
- 1" - 5"
- Anti-Scalping:
- 2 Front
- Deck Positions:
- Foot pedal with spring assist, 16 Positions
Chassis
- Frame:
- Fully welded, full-length 3/8 x 5" laser cut steel / integrated tie-down slots
- Front Axle(s):
- 2" x 3" solid axle tube with ISO dampening suspension
- Front Tires:
- 15" x 6" - 6" smooth (run flat)
- Rear Tires:
- 26" x 12" - 12" (Turf Tread)
- Tire Tread:
- Turf Tread
- ROPS:
- 2" x 2" spring-latch tool-less foldable 3 position
- Bumper:
- 5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
- Yokes:
- 1/2" thick steel front yokes
Controls
- Brakes:
- Hand-operated lever with integrated hydro pump release lever
- Steering Wheel Control:
- High Performance Steering Wheel with electronic power steering & Foot-pedal Control
Comfort
- Seat Type:
- Cushion with seat belts
- Arm Rests:
- Padded arm rests
- Seat Suspension:
- High-back Air-Ride suspension with EVC cushion, ISO mounted base (lateral suspension)
- Seat Adjustment:
- Angle back adjust and lumbar support
Dimensions
- Dimensions:
- L/W/H 88" L x 73" W x 48" H
- Weight (approx.):
- 1580 lbs.
Additional Specifications
- Hour Meter:
- Crew Boss
- Discharge Chute:
- High-density, impact-resistant rubber
- Cup Holder:
- Intergrated into Side Pod
- Model Number:
- 53TIHMTV050
Warranty
- Deck Shell Warranty:
- 5 year / 1,750 hour limited deck construction warranty
- Commercial Warranty:
- 3 year / no hour limit commercial warranty
- Trans Fluid:
- 490-000-C051 NEED 96OZ
Maintenance Parts
- Air Filter:
- KM-11013-7044
- Pre Filter:
- KM-11013-7045
- Oil Filter:
- KM-49065-0724
- Fuel Filter:
- KM-49019-0027 OR 490-240-0001
- Spark Plug:
- KM-BPR5ES
- Deck Belt:
- 954-04319
- PTO Belt:
- 954-05128
- Drive Belt:
- 954-05037A
- Blades:
- 942-04415 OR 490-110-C163
- Xtreme Blade:
- 02005019-X
- Ignition Key:
- 925-06908
- Trans Filter:
- PH-411135S
- Engine Oil:
- 490-000-C044
Key Features
- 35 HP Kawasaki FX1000v (999cc) engine and 16cc Parker HTG transmission
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
