Cub Cadet Pro Z 960 S EFI 53FLHUUVA50 1 / 2

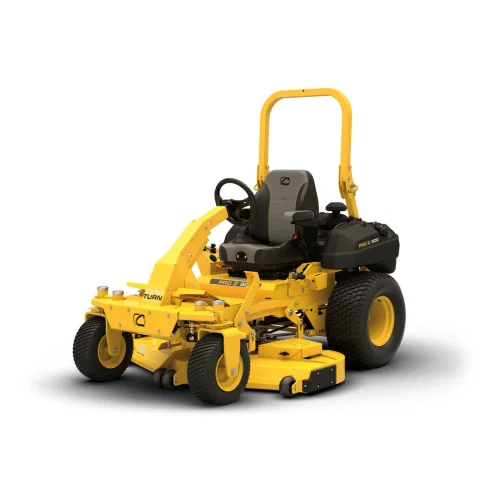

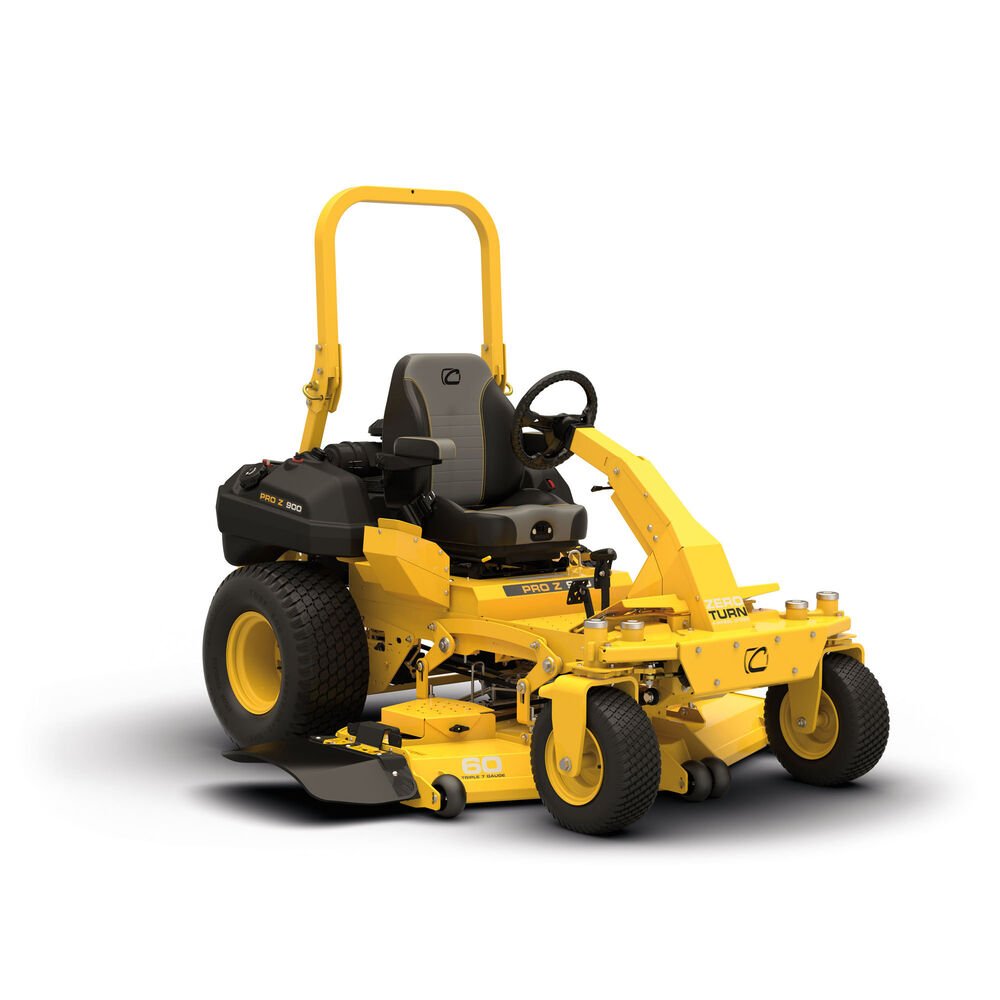

Cub Cadet Pro Z 960 S EFI 53FLHUUVA50

Product number: 53FLHUUVA50

$14,999.00 $18,869.00

Special Online Price!

In Stock

Product Brand: Cub CadetProduct Type: Zero-Turn

Have Questions?

Our experts are here to answer your questions.

Contact Us+1 404-301-0719

Store pickup and delivery available — choose at checkout.

Product Description

PRO Z 960 S EFI

The Cub Cadet® PRO Z 960 S EFI 60-in. 38.5 HP* Commercial Zero-Turn Lawn Mower With Synchro-Steer™ Technology And EFI Engine features a triple 7-gauge fabricated steel cutting deck with top, bottom and side reinforcements. Category exclusive steering wheel control technology is designed to allow you to conquer slopes up to 20 degrees. Equipped with maintenance-free spindles and pulleys to deliver peak performance with limited downtime.

Specifications

General

Product Number:
53FLHUUVA50
Brand:
Cub Cadet
Product Type:
Zero-Turn

Engine

Engine Brand:
Kawasaki
Engine Model:
FX Series EFI FXT00V-BS42
Engine Displacement:
999cc
Engine Output:
38.5 HP
Fuel Tank Capacity:
Twin 7.45 gal. tanks (14.9 gal. total)
Charging System:
15 amp regulated
Fuel Delivery:
Electronic Fuel Injection (EFI)

Drive System

Transmission:
16cc Hydro Gear 5400
Forward Speed;:
14 mph
Reverse Speed:
6 mph

Cutting Deck

Deck Cutting Width:
60''
Deck Material:
fabricated 7ga. (.187”) steel shell
Deck Engagement (PTO):
electronic fingertip engagement pto
Deck Construction:
7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge
Spindle Construction:
8" sealed cast aluminum housing (maintenance-free)
Blade(s):
3 high-lift Marbain® blades / 18,500 fpm (approx.)
Cutting Height Range:
1" - 5" 1/4” increments
Anti-Scalping:
2 front deck gauge wheels
Deck Positions:
Foot pedal with spring assist, 16 Positions

Chassis

Frame:
Fully welded, full-length 3/8 x 5" laser cut steel / integrated tie-down slots
Front Axle(s):
2" x 3" solid axle tube with ISO dampening suspension
Front Tires:
16"x6"-6"Reliance Carlisle run flat
Rear Tires:
26" x 12" - 12"
Tire Tread:
Turf Tread
ROPS:
2" x 2" spring-latch tool-less foldable 3 position
Bumper:
5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
Yokes:
1/2" thick steel front yokes

Controls

Brakes:
Hand-operated lever with integrated hydro pump release lever
Steering Wheel Control:
High Performance Steering Wheel with electronic power steering & Foot-pedal Control

Comfort

Seat Type:
Cushion with seat belts
Arm Rests:
Padded arm rests
Seat Suspension:
High-back Air-Ride suspension with EVC cushion, ISO mounted base (lateral suspension)
Seat Adjustment:
Angle back adjust and lumbar support

Dimensions

Dimensions:
L/W/H 88" L x 73" W x 48" H
Weight (approx.):
1580 lbs.

Additional Specifications

Hour Meter:
Crew Boss
Discharge Chute:
High-density, impact-resistant rubber
Cup Holder:
Intergrated into Side Pod
Model Number:
53FLHUUVA50

Warranty

Residential Warranty:
3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour
Commercial Warranty:
3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour

Maintenance Parts

Air Filter:
KM-11013-7044
Pre Filter:
KM-11013-7045
Oil Filter:
KM-49065-0724
Fuel Filter:
KM-49019-0031
Spark Plug:
KM-BPR5ES
Deck Belt:
954-04319
PTO Belt:
954-05128
Drive Belt:
754P07149
Blades:
942-04415 OR 490-110-C163
Xtreme Blade:
02005019-X
Ignition Key:
925-06908
Trans Filter:
HG-71943 NEED 2
Engine Oil:
490-000-C044

Key Features

  • 38.5 HP Kawasaki FX1000v (999cc) EFI engine and 16cc Hydro Gear 5400 transmission
  • 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
  • 3-Year / no hour limit warranty and/or 5-Year 1,200 hour warranty

Product Manuals

No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
