Cub Cadet Pro Z 960 L EFI KW 53FLHUTV050 1 / 2

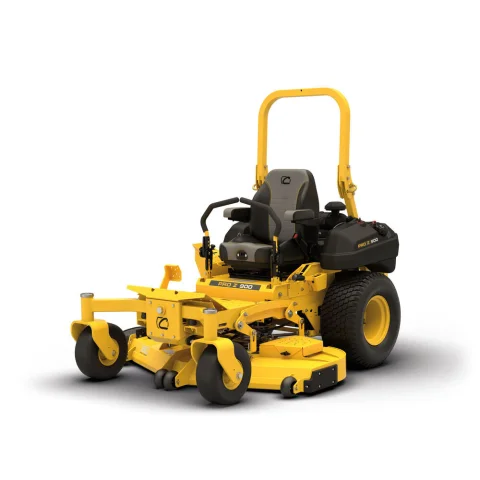

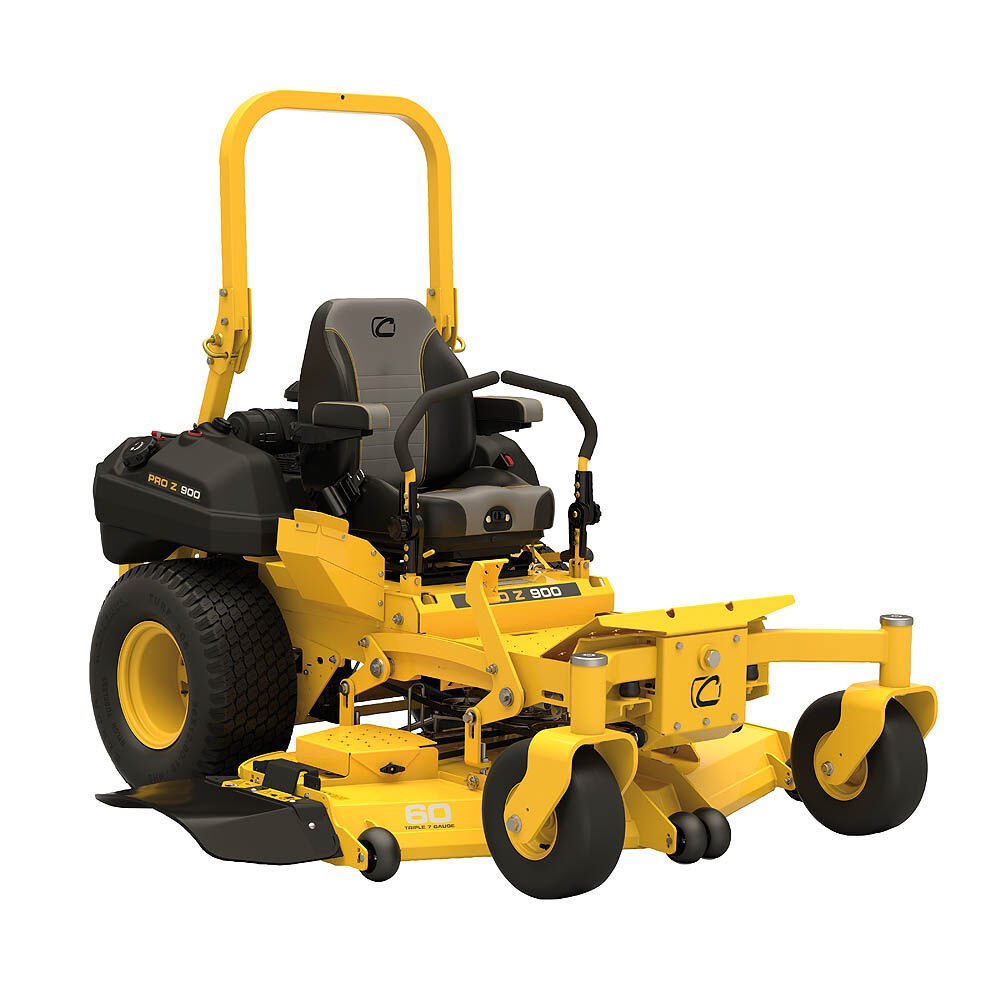

Cub Cadet Pro Z 960 L EFI KW 53FLHUTV050

Product number: 53FLHUTV050

$17,314.89

In Stock

Product Brand: Cub CadetProduct Type: Zero-Turn

Have Questions?

Our experts are here to answer your questions.

Contact Us+1 404-301-0719

Store pickup and delivery available — choose at checkout.

Product Description

The Cub Cadet® PRO Z 960 L EFI 60-in. 38.5 HP* Commercial Zero-Turn Lawn Mower With EFI Engine features a triple 7-gauge fabricated steel cutting deck with top, bottom and side reinforcements. Equipped with maintenance-free spindles and pulleys to deliver peak performance with limited downtime. Air-ride seat allows the operator to adjust firmness to personal preference.

Specifications

General

Product Number:
53FLHUTV050
Brand:
Cub Cadet
Product Type:
Zero-Turn

Engine

Engine Brand:
Kawasaki
Engine Model:
FX Series EFI FXT00V-BS42
Engine Displacement:
999cc
Engine Output:
38.5 HP
Fuel Tank Capacity:
Twin 7.45 gal. tanks (14.9 gal. total)
Charging System:
15 amp regulated
Fuel Delivery:
Electronic Fuel Injection (EFI)

Drive System

Transmission:
Hydro Gear 5400
Forward Speed;:
14 mph
Reverse Speed:
6 mph

Cutting Deck

Deck Cutting Width:
60''
Deck Material:
fabricated 7ga. (.187”) steel shell
Deck Engagement (PTO):
electronic fingertip engagement pto
Deck Construction:
7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge
Spindle Construction:
8" sealed cast aluminum housing (maintenance-free)
Blade(s):
Triple-blade / High-lift blade (standard) Marbain Blade
Cutting Height Range:
1" - 5"
Anti-Scalping:
2 front deck gauge wheels
Deck Positions:
Foot pedal with spring assist, 16 Positions

Chassis

Frame:
Fully welded, full-length 3/8 x 5" laser cut steel / integrated tie-down slots
Front Axle(s):
2" x 3" solid axle tube with ISO dampening suspension
Front Tires:
15"x6"-6"Reliance Carlisle run flat
Rear Tires:
26" x 12" - 12"
Tire Tread:
Turf Tread
ROPS:
2" x 2" spring-latch tool-less foldable 3 position
Bumper:
5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
Yokes:
1/2" thick steel front yokes

Controls

Brakes:
Hand-operated lever with integrated hydro pump release lever
Steering Wheel Control:
High Performance & Speed Control

Comfort

Seat Type:
Cushion with seat belts
Arm Rests:
Padded arm rests
Seat Suspension:
High-back Air-Ride suspension with EVC cushion, ISO mounted base (lateral suspension)
Seat Adjustment:
Angle back adjust and lumbar support

Dimensions

Dimensions:
L/W/H 86" L x 74" W x 52" H
Weight (approx.):
1591 lbs.

Additional Specifications

Hour Meter:
Crew Boss
Discharge Chute:
High-density, impact-resistant rubber
Cup Holder:
Intergrated into Side Pod
Model Number:
53FLHUTV050

Warranty

Residential Warranty:
3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour
Commercial Warranty:
3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour

Maintenance Parts

Air Filter:
KM-11013-7044
Pre Filter:
KM-11013-7045
Oil Filter:
KM-49065-0724
Fuel Filter:
KM-49019-0031
Spark Plug:
KM-BPR5ES
Deck Belt:
954-04319

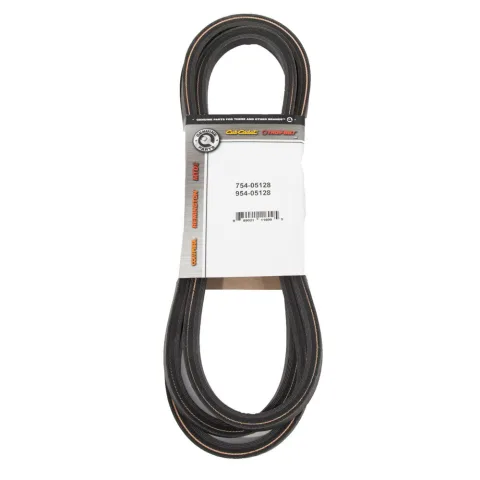

PTO Belt:
954-05128
Drive Belt:
754P07149

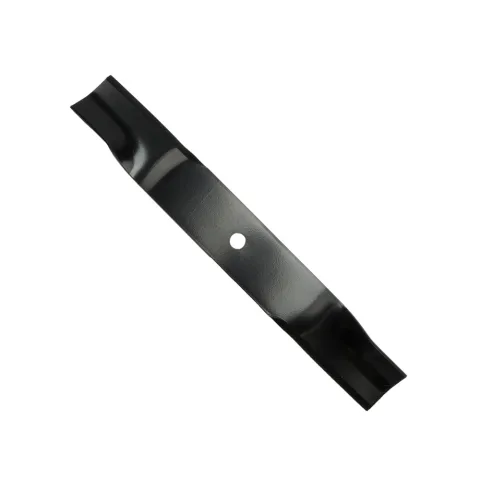

Blades:
942-04415 OR 490-110-C163
Xtreme Blade:
02005019-X
Ignition Key:
925-06908
Trans Filter:
HG-71943 NEED 2
Engine Oil:
490-000-C044

Key Features

  • 38.5 HP Kawasaki FX1000v (999cc) EFI engine and 16cc Hydro Gear 5400 transmission
  • 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
  • 3-Year / no hour limit warranty and/or 5-Year 1,200 hour warranty

Product Manuals

No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
