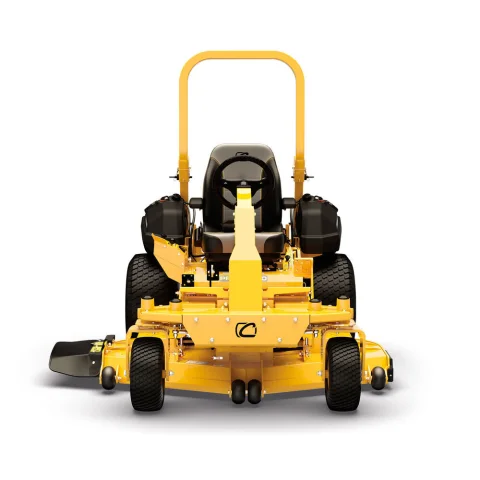

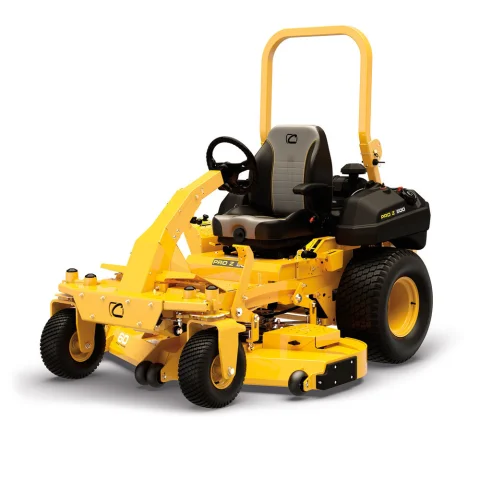

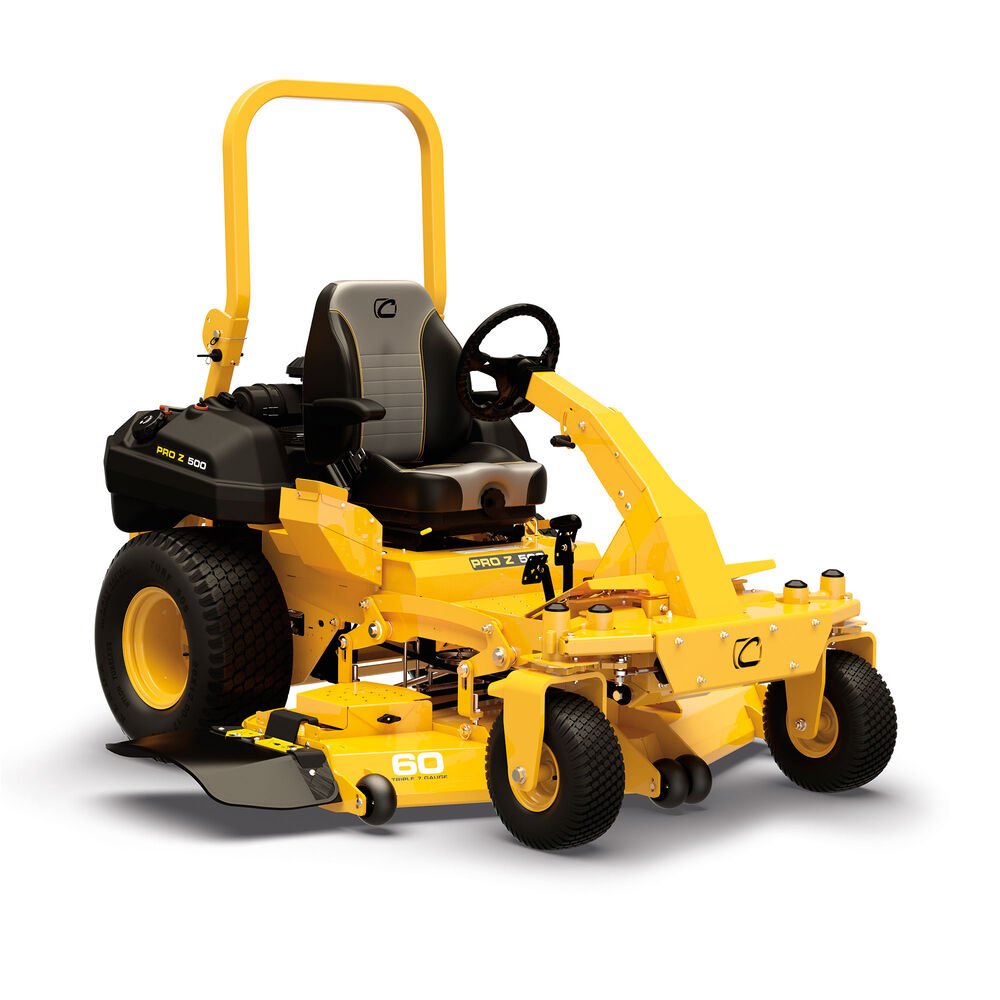

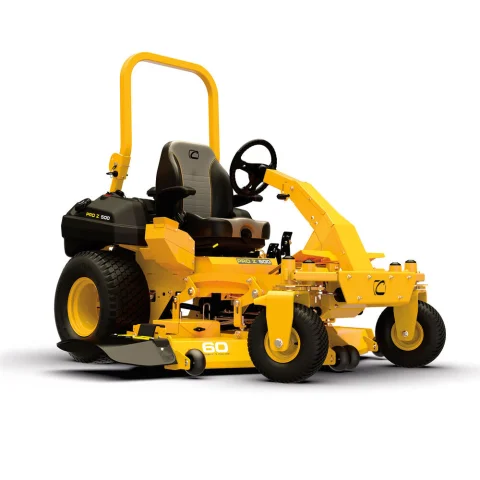

1 / 4 Cub Cadet PRO Z 560 S KW 53TIHJUV050
Product number: 53TIHJUV050
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Product Description
27 HP Kawasaki FX850v (852cc) engine and 12cc Parker HTJ transmission
60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty
Specifications
General
- Product Number:
- 53TIHJUV050
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Engine
- Engine Brand:
- Kawasaki®
- Engine Model:
- FX850V-HS
- Engine Displacement:
- 852cc
- Engine Output:
- 27 HP
- Fuel Tank Capacity:
- Twin 7.45 gal. tanks (14.9 gal. total) with dial gauge
Drive System
- Transmission:
- Parker HTJ Series 12cc pump / 260cc wheel motor
- Forward Speed:
- 10 mph
- Reverse Speed:
- 5 mph
Cutting Deck
- Deck Cutting Width:
- 60-in
- Deck Material:
- fabricated 7ga. (.187”) steel shell
- Deck Engagement (PTO):
- electronic fingertip engagement pto
- Deck Construction:
- 7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge
- Blade(s):
- 3 high-lift Marbain® blades / 18,500 fpm (approx.)
- Cutting Height Range:
- 1" - 5"
- Anti-Scalping:
- 2 Front HD w/ Bushings & Grease Zerk
- Deck Positions:
- Foot pedal with spring assist 16 Positions
Chassis
- Frame:
- Fully welded, full-length 3/8 x 5" laser cut steel / integrated tie-down slots
- Front Axle(s):
- 2" x 3" solid axle tube and 1/2" thick steel front yokes
- Front Tires:
- 13" x 6.5" - 6" (smooth)
- Rear Tires:
- 24" x 12" - 12" (Turf Tread)
- Tire Tread:
- Turf Tread
- ROPS:
- 2" x 2" quick-latch tool-less foldable 3 position
- Bumper:
- 5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
Controls
- Steering Control:
- High Performance Steering Wheel with electronic power steering & Foot-pedal Control
Comfort
- Seat Type:
- Cushion
- Arm Rests:
- Standard
- Seat Suspension:
- High-back dial suspension with EVC, with seatbelt
- Seat Adjustment:
- Angle back adjust
Dimensions
- Dimensions:
- L/W/H 84" L x 62" W x 50" H
- Weight (approx.):
- 1324 lbs.
Additional Specifications
- Hour Meter:
- Standard electronic
- Discharge Chute:
- High-density, impact-resistant rubber
- Cup Holder:
- Intergrated into Side Pod
- Model Number:
- 53TIHJUV050
Warranty
- Deck Shell Warranty:
- 5 year / 1,750 hour limited deck construction warranty
- Commercial Warranty:
- 3 year / no hour limit commercial warranty
- Trans Fluid:
- 490-000-C051 NEED 96OZ
Maintenance Parts
- Air Filter:
- KM-11013-7044
- Pre Filter:
- KM-11013-7045
- Oil Filter:
- KM-49065-0724
- Fuel Filter:
- KM-49019-0031
- Spark Plug:
- KM-BPR4ES
- Deck Belt:
- 954-04319
- PTO Belt:
- 954-05128
- Drive Belt:
- 954-05037A
- Blades:
- 942-04415 OR 490-110-C163
- Xtreme Blade:
- 02005019-X
- Ignition Key:
- 925-06908
- Trans Filter:
- PH-411154
- Engine Oil:
- 490-000-C044
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
