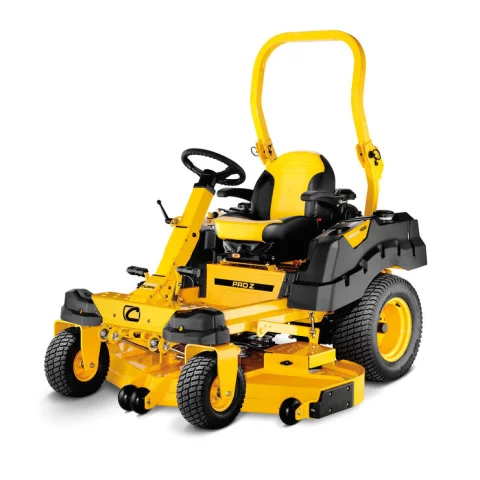

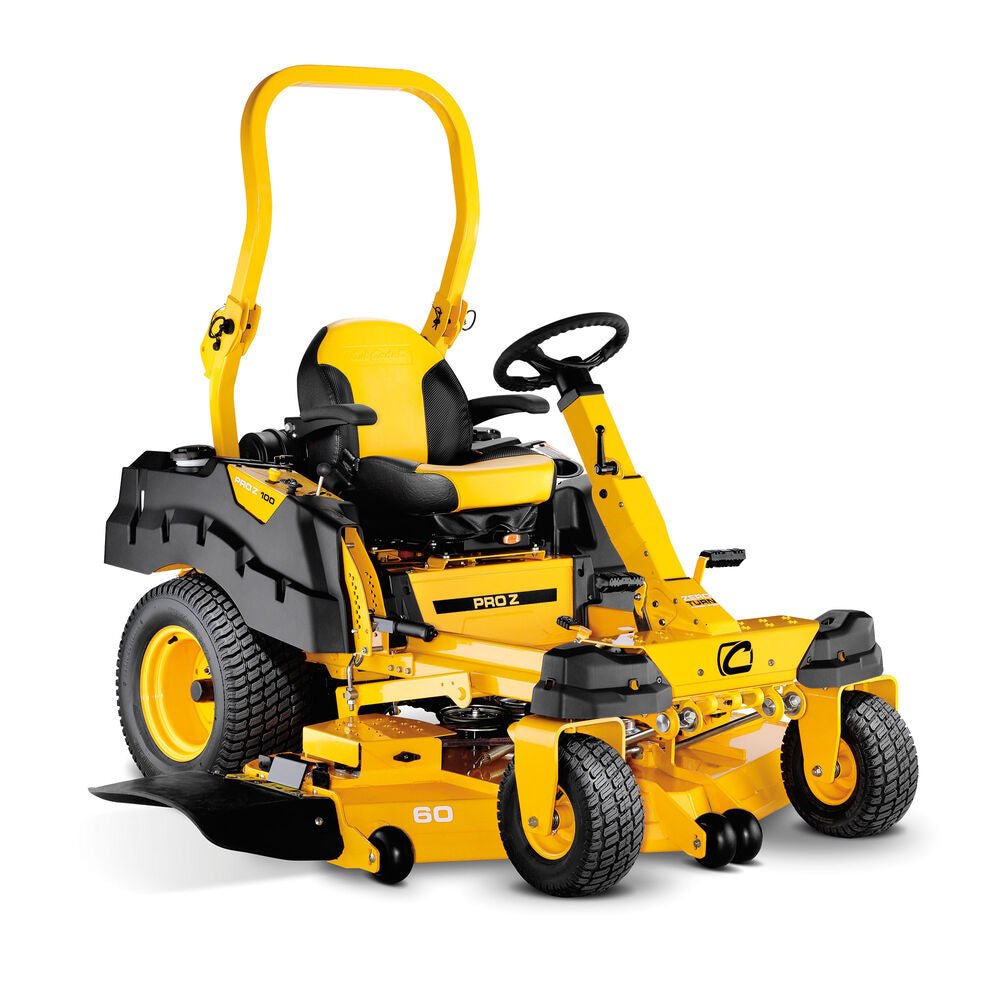

1 / 2 Cub Cadet Pro Z 160 S EFI 53TWEFJU050
Product number: 53TWEFJU050
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Product Description
PRO Z 160 S EFI
Specifications
General
- Product Number:
- 53TWEFJU050
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Engine
- Engine Brand:
- Kohler®
- Engine Model Number:
- EZT750-3020
- Engine Model:
- Confidant EFI EZT-750
- Engine Displacement:
- 747cc
- Fuel Tank Capacity:
- Twin tanks - 3.5 gallon ea. (7 gallon total) with oversized filler opening
- Lubrication:
- Full - Spin On
Drive System
- Transmission:
- 12cc Hydro-Gear® ZT 3400 with charge pumps
- Forward Speed:
- 9.5 mph
- Reverse Speed:
- 4.5 mph
Cutting Deck
- Deck Cutting Width:
- 60 in
- Deck Engagement (PTO):
- electronic fingertip engagement pto
- Deck Construction:
- Floating, fabricated 10ga. (.135”) steel shell (e-coated)
- Spindle Construction:
- 5" sealed cast aluminum housing (maintenance-free)
- Blade(s):
- 3 high-lift Marbain® blades / 18,500 fpm (approx.)
- Cutting Height Range:
- 1” to 5” in 1/4” increments
- Anti-Scalping:
- 4 Front HD w/ Bushings & Grease Zerk
- Deck Positions:
- Hand Lever / 15 position / spring assist
Warranty
- Warranty:
- 4-year/500-hour limited residential warranty
- Commercial Warranty:
- 2-year limited commercial warranty (no hour limitations)
Chassis
- Frame:
- Fully welded, full-legnth 12ga. channel frame with 14ga. reinforcements
- Front Axle:
- 2" x 3" solid steel
- ROPS:
- 2" x 2" quick-latch tool-less foldable 3 position
- Bumper:
- 5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
- Yokes:
- 3/8" thick steel with sealed ball bearing front yokes
Controls
- Cruise Control:
- Standard - Foot operated pedal engagement
- Brakes:
- Foot-operated pedal
- Steering Control:
- High Performance Steering Wheel with Foot-pedal Control
Comfort
- Seat Type:
- Cushion with seat belt
- Armrests:
- adjustable arm rests
- Seat Suspension:
- High-back suspension
Dimensions
- Dimensions:
- L/W/H 80" L x 56" W x 48" H
- Weight (approx.):
- 1000 lbs.
Additional Specifications
- Hour Meter:
- Basic Hour Meter (no tach)
- Discharge Chute:
- High-density, impact-resistant rubber
- Cup Holder:
- Intergrated into Side Pod
- Model Number:
- 53TWEFJU050
- Trans Fluid:
- 490-000-C051 NEED 70.3OZ
Maintenance Parts
- Air Filter:
- 16 883 01-S1
- Pre Filter:
- INCLUDED IN ABOVE
- Oil Filter:
- 52 050 02-S
- Fuel Filter:
- 24 050 13-S1
- Spark Plug:
- 25 132 23-S OR RC12YC

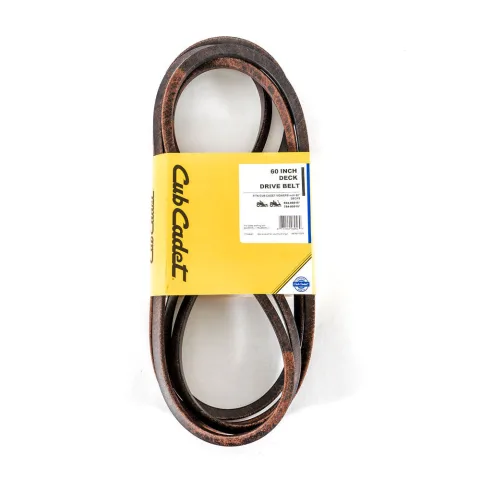

- Deck Belt:
- 954-05015 OR 490-501-C076
- Drive Belt:
- 954-04317A OR 490-501-C069
- Blades:
- 942-04415 OR 490-110-C163
- Xtreme Blade:
- 02005019-X
- Ignition Key:
- 925-06908
- Trans Filter:
- HG-52114P
- Engine Oil:
- 490-000-C044
Key Features
- Commercial-grade 27 HP Kohler EFI engine
- 60-inch 10-gauge steel commercial deck with top, bottom and side reinforcements for added durability
- 12cc commercial-grade transmission ensures optimal blade tip speed and superior quality of cut at speeds up to 9.5 mph
