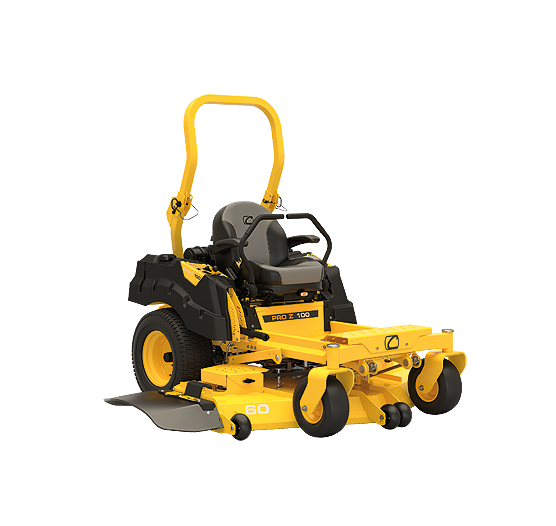

Cub Cadet Pro Z 160 L KW
Product number: 53TIEHRU050
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Product Description
Commercial-grade 23.5 HP Kawasaki engine.
60-inch 10-gauge steel commercial deck with top, bottom and side reinforcements for added durability.
12cc commercial-grade transmission ensures optimal blade tip speed and superior quality of cut at speeds up to 9.5 mph.
Standard high-back suspension seat for all-day comfort.
Specifications
General
- Product Number:
- 53TIEHRU050
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Specifications
- Steering:
- Lap Bar 3/4 length padded bars w/tooless quick adjust dial
- ROPS:
- 2" x 2" spring-latch tool-less foldable 3 position
- Front Axle / Yokes:
- 2" x 3" solid steel and 3/8" thick steel with sealed ball bearing front yokes
- Rear Bumper:
- 5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
- Frame:
- Fully welded, full-legnth 12ga. channel frame with 14ga. reinforcements
- Dimensions:
- L / W / H with discharge chute UP and ROPs DOWN
- Weight (approx):
- 1030 lbs
- Seat Type:
- High-back suspension with seat belt, adjustable arm rests and 6" seat travel
- Front Tires:
- 13" x 6.5" - 6" (smooth)
- Park Brake / Braking:
- Intergrated system in Lap Bars for ease of use
- Throttle/PTO/Key Switch:
- HD Low-profile throttle lever, sealed key switch & electronic fingertip engagement pto
- Rear Tires:
- 23" x 10.5" - 12" (Turf Master)
- PTO Clutch:
- Warner Clutch - 125 ft lb
- Safety Systems:
- Operator presence
- MOWER DECK Spindle Construction:
- 5" sealed cast aluminum housing (maintenance-free)
- Deck Blades:
- 3 high-lift Marbain® blades / 18,500 fpm (approx.)
- Top Reinforcement(s):
- 2ga. and 11 ga. top plate
- Trim-Side Wear Guard:
- 3/4" Thick UHMW-PE Replaceable Trim-side Wear Guard
- Discharge Chute:
- High-density, impact-resistant rubber
- Deck Size/Type:
- 60" FABRICATED DECK
- Bottom Reinforcement:
- 7ga. (.175") steel
- Leading Edge Reinforcement:
- 1/4" (.250") steel
- Side Construction:
- 5/16"(.313) steel on trim and discharge sides
- Deck Height Adjustment:
- Hand Lever / 15 position / spring assist
- Deck Material:
- Fully welded 10ga. (.135") steel deck shell with reinforcements totaling .560"
- Cutting Height:
- 1" - 5"
- Anti-Scalping:
- 2 Front HD w/ Bushings & Grease Zerk
- Deck Style/Construction:
- Floating, fabricated 10ga. (.135”) steel shell (e-coated)
- Cup Holder:
- Intergrated into Side Pod
- Hour Meter:
- Standard electronic
- Warranty:
- 2-year limited commercial warranty (no hour limitations) or 4-year/500-hour limited residential warranty
- Ground Speed:
- 9.5mph fwd. / 4.5mph rev
- Horsepower / CC's:
- 23.5hp - 726cc
- Engine Type:
- Kawasaki FX FX730v
- Fuel Capacity:
- Twin tanks - 3.5 gallon ea. (7 gallon total) with oversized filler opening
