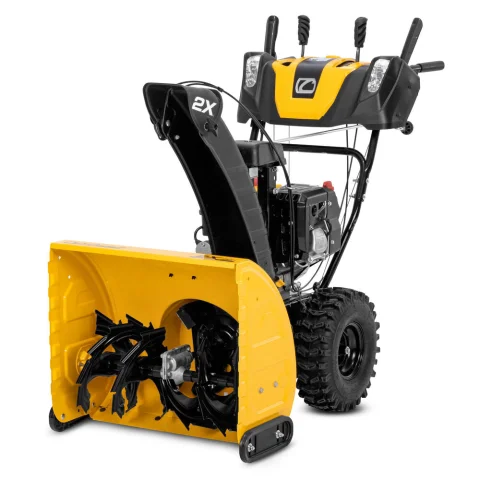

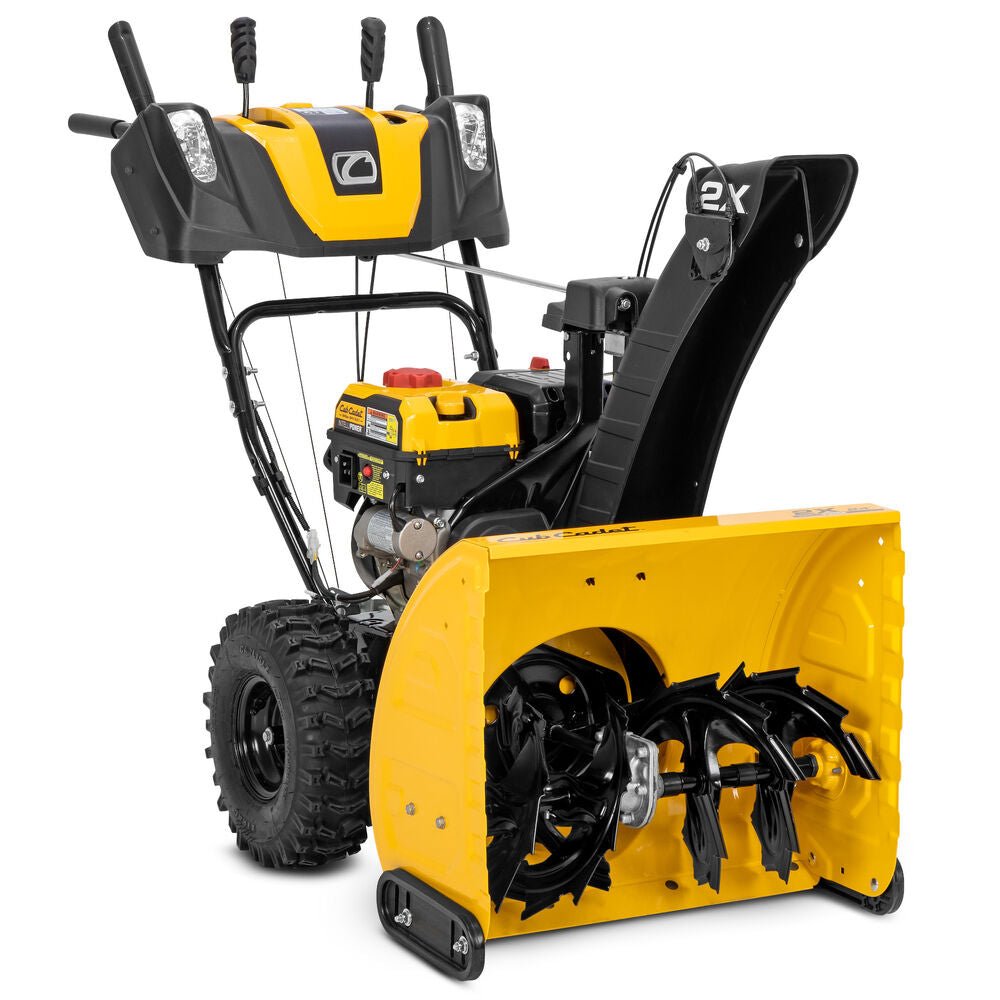

1 / 8 Cub Cadet 2X 24 INTELLIPOWER 31AM6HVRB10
Product number: 31AM6HVRB10
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Product Description
Parts Diagram
Engine Diagram
Specifications
General
- Product Number:
- 31AM6HVRB10
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Engine
- Engine Brand:
- Cub Cadet®
- Engine Model Number:
- 875-WU
- Engine Displacement:
- 243cc
- Fuel Tank Capacity:
- 2 qt.
- Engine Start:
- Recoil and Push-Button Electric
- Governor:
- Electronic
- Fuel Delivery:
- Carburetor
Drive System
- Number of Forward Speeds:
- 6
- Number of Reverse Speeds:
- 2
- Drive System:
- All-wheel Drive
- Drive Type:
- Friction Disc
- Tire Size:
- 15" x 5"
- Tread:
- X-TRAC™
Warranty
- Warranty:
- 3-year limited residential
- Auger Gearbox Warranty:
- 3-year limited
- Commercial Warranty:
- 1-year limited
- Disclaimer:
- See owners manual for warranty details and information. Certain restrictions apply.

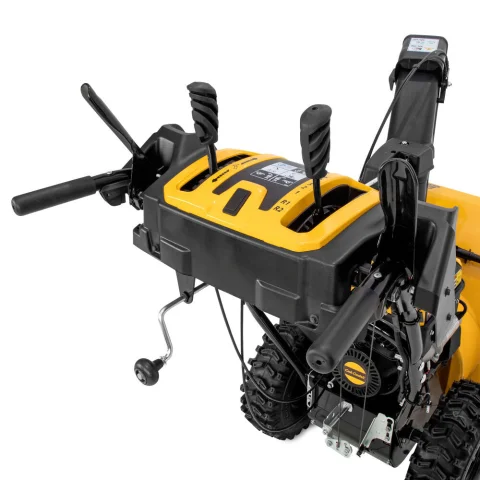

Controls
- Handle Grip(s):
- Standard
- Pitch Control:
- Remote Single-Lever
- Chute Rotation:
- 200°
- Chute Control:
- Overhead Crank
- Single-Hand Operation:
- Standard
- Steering Control:
- No
Power and Performance
- Clearing Width:
- 24"
- Intake Height:
- 21"
- Auger Gear Box:
- Heavy-duty cast-aluminum
- Number of Stages:
- Two
Dimensions
- Auger Diameter:
- 12"
- Impeller Diameter:
- 12"
- Accelerator Diameter:
- N/A
Additional Specifications
- Headlight(s):
- Dual LED
- Shave Plate:
- Heavy Duty Steel
- Skid Shoes:
- Reversible Poly
- Drift Cutters:
- No
- Auger Material:
- Heavy-duty Serrated Steel
- Chute Material:
- High-impact Polymer
- Chute Clearing Device:
- Yes
- Model Number:
- 31AM6HVRB10
Key Features
- 243cc 4-cycle OHV Cub Cadet engine with Intellipower® Technology offers up to 18% more available power, resulting in less bogging down when clearing heavy, wet and deep snow.*
- IntelliPower® engine technology provides Up to 18% more power for 243cc EGOV with a digital throttle control that consistently optimizes engine output.*
- Push-button electric start makes it incredibly easy to start in winter weather, just attach an extension cord.
Important Safety Note
Specifications Disclaimer: Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
IntelliPower™: *When compared to the same engine without IntelliPower™ technology. Improvements vary depending on engine models and specific operating conditions.
