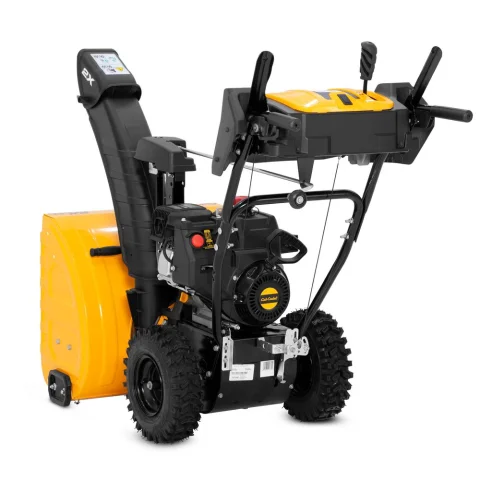

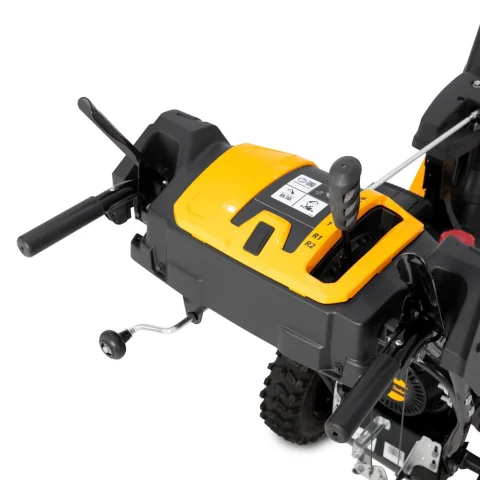

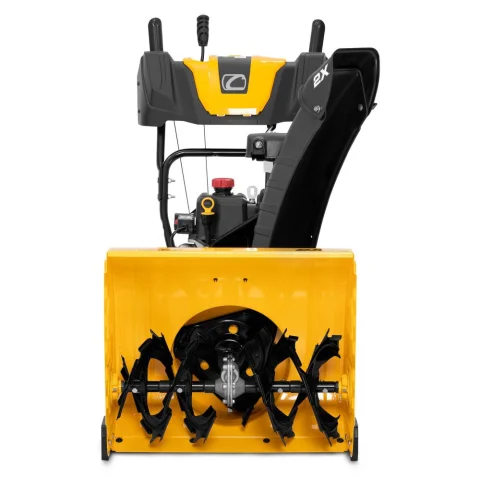

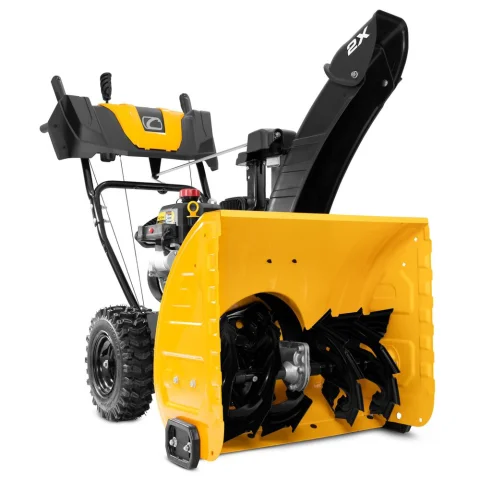

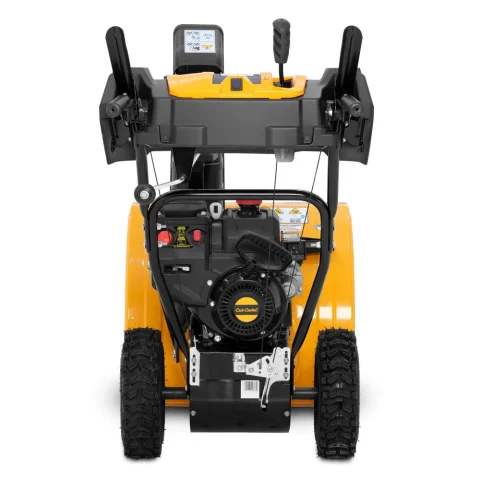

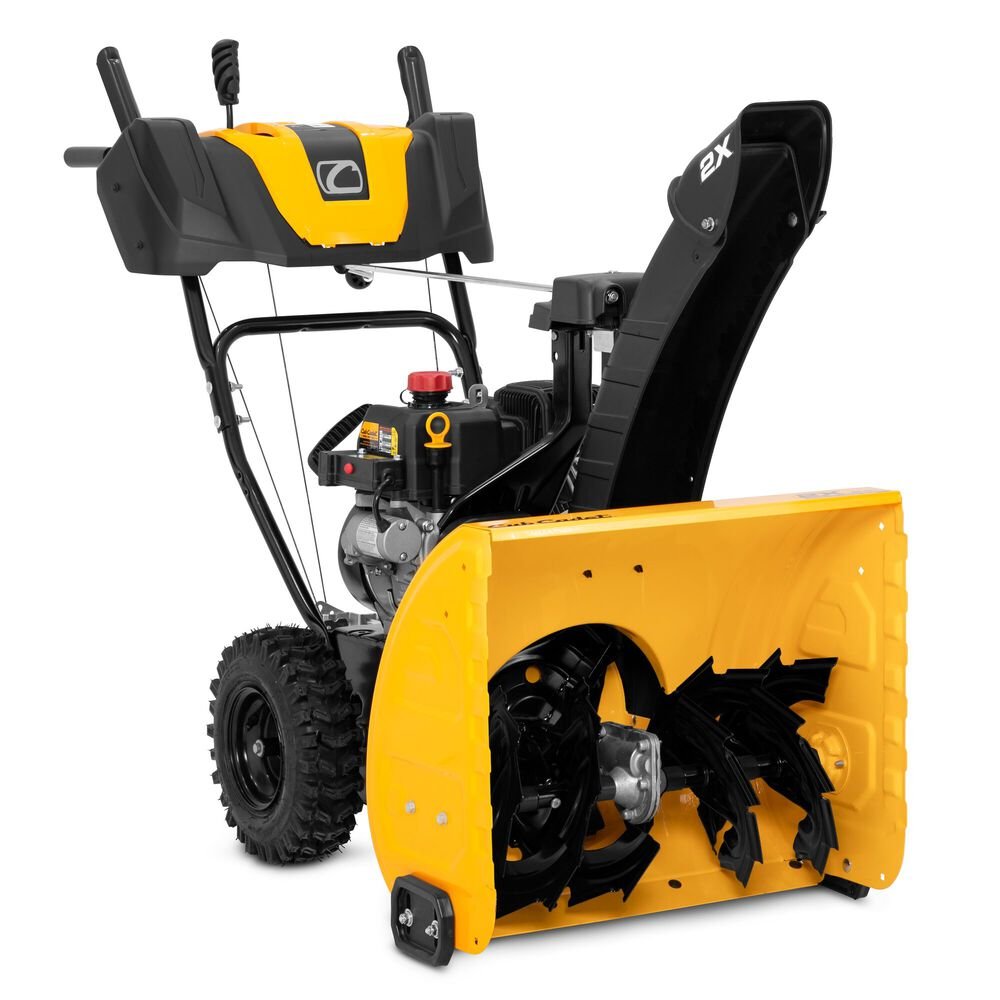

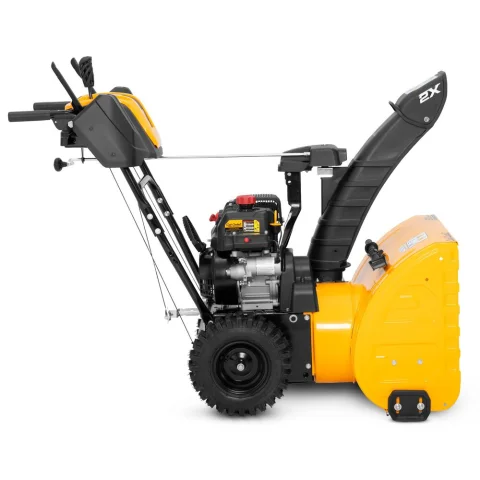

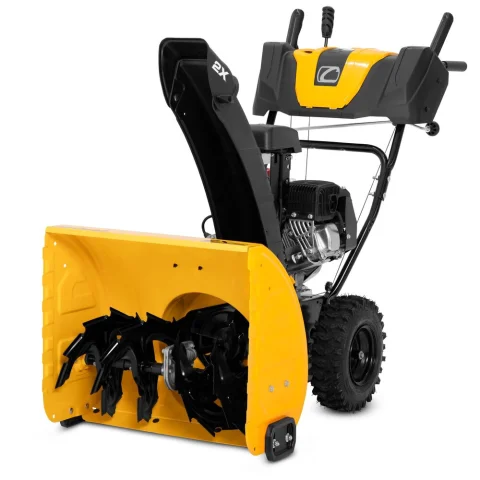

1 / 8 Cub Cadet 2X 24 31AS6KXRA56
Product number: 31AS6KXRA56
Non-current model. The manufacturer no longer produces this model. Contact us for availability — and we can help with parts and service — contact us.
Product Brand: Cub CadetProduct Type: Non-Current Models
Have Questions?
Our experts are here to answer your questions.
Product Description
Tackle your extreme with the 2X 24 in. 208cc Gas Two-Stage Snow Blower engineered to take on up to 12 in. of snow†. Push button electric start is designed for reliable starting without the need to pull start. Clear snow at your pace with six forward and two reverse speeds. Two-stage technology uses 12 in. steel augers to break up snow and a 12 in. high-speed steel impeller to pull the snow up from the augers and propel it out of the chute for fast clearing.
Parts Diagram
Engine Diagram
Specifications
General
- Product Number:
- 31AS6KXRA56
- Brand:
- Cub Cadet
- Product Type:
- Non-Current Models
Engine
- Engine Brand:
- Cub Cadet®
- Engine Model Number:
- 270-XU
- Engine Displacement:
- 208cc
- Fuel Tank Capacity:
- 1.2 qt.
- Engine Start:
- Recoil and Push-Button Electric
- Governor:
- Mechanical
- Fuel Delivery:
- Carburetor
Drive System
- Number of Forward Speeds:
- 6
- Number of Reverse Speeds:
- 2
- Drive System:
- All-wheel Drive
- Drive Type:
- Friction Disc
- Tire Size:
- 13" x 4"
- Tread:
- X-TRAC™
Warranty
- Warranty:
- 3-year limited residential
- Auger Gearbox Warranty:
- 3-year limited
- Commercial Warranty:
- 1-year limited
- Chute Warranty:
- Lifetime limited
- Disclaimer:
- See owners manual for warranty details and information. Certain restrictions apply.
Controls
- Handle Grip(s):
- Standard
- Pitch Control:
- Remote Single-Lever
- Chute Rotation:
- 200°
- Chute Control:
- Overhead Crank
- Single-Hand Operation:
- Standard
- Steering Control:
- No
Power and Performance
- Clearing Width:
- 24"
- Intake Height:
- 21"
- Auger Gear Box:
- Heavy-duty cast-aluminum
- Number of Stages:
- Two
Dimensions
- Auger Diameter:
- 12"
- Impeller Diameter:
- 12"
- Accelerator Diameter:
- N/A
Additional Specifications
- Headlight(s):
- No
- Shave Plate:
- Heavy Duty Steel
- Skid Shoes:
- Reversible Poly
- Drift Cutters:
- No
- Auger Material:
- Serrated Steel
- Chute Material:
- High-impact Polymer
- Chute Clearing Device:
- Yes
- Model Number:
- 31AS6KXRA56
Key Features
- 24 in. clearing width and 21 in. intake height is designed to throw snow up to 40 ft. away while clearing up to 12 in. of snow†
- 208cc 4-cycle OHV Cub Cadet engine delivers the power to help clear snow on driveways up to 12 parking spaces in size
- Skip the pull starts and get to work quickly with push-button electric start (Requires use of 15amp/125V outdoor-rated extension cord sold separately)
- Self propelled. Clear at your pace with 6 forward and 2 reverse speeds
- Center-mounted crank chute control provides quick 200° rotation with an easy 2.5 turns of the crank
Important Safety Note
Specifications Disclaimer: Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
IntelliPower™: *When compared to the same engine without IntelliPower™ technology. Improvements vary depending on engine models and specific operating conditions.
Product Manuals
No confirmed manuals are currently available for this product. Browse all product manuals or ask our team.
